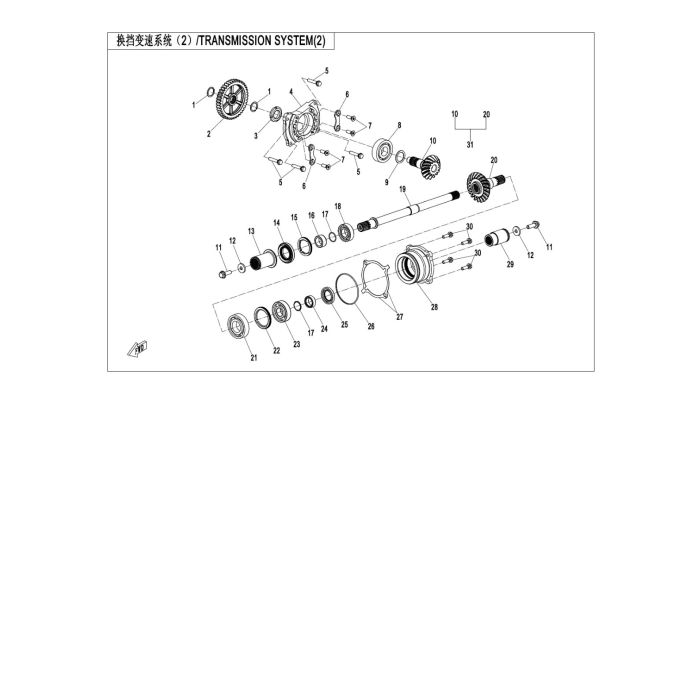

TRANSMISSION SYSTEM (2)

Be the first to review this product

Grouped product items
Product Name
1 Retainer 25 0180-061007-0050 Sold in quantities of 2 $3.08
2 Driven gear, output 0800-062102 $112.02
3 Lock nut, bevel gear 0JWV-062102-3000 $9.05
4 Drive bevel gear bearing seat 0JWV-062103-3001 $51.40
5 Bolt 0JWV-010014-3000 $2.99
6 Limitator , bearing 0180-062104-0010 $4.52
7 Screw m8×25 30124-080025810 Sold in quantities of 6 $9.24
8 Bearing 28x68x18 0110-041007 $96.13
9 Adjusting washer, drive bevel gear t=1.500-1.549 0JYV-062101-1E00-Q0-00003 $1.54
9 Adjusting washer, drive bevel gear t=1.400-1.449 0JYV-062101-1E00-Q0-00001 $1.54
9 Adjusting washer, drive bevel gear t=1.450-1.499 0JYV-062101-1E00-Q0-00002 $1.54
9 Adjusting washer, drive bevel gear t=1.550-1.549 0JYV-062101-1E00-Q0-00004 $1.54
9 Adjusting washer, drive bevel gear t=1.600-1.649 0JYV-062101-1E00-Q0-00005 $1.54
11 Lock nut, bevel gear 0JWA-060002-00001 $6.06
12 Washer 10 x 27.5 x 4 0GR0-062204 Sold in quantities of 6 $17.94
13 Front output bushing 0JWV-060201-3000 $67.58
14 Oil seal 35x61x9 0JWA-062302-00001 $27.24
15 Bearing retainer, front out 0180-060008 $25.69
16 Output shaft sleeve 0800-062201-00001 $25.70
17 O-ring 25x2 0800-062205 Sold in quantities of 2 $9.04
18 Bearing 25 30400-02501 $15.11
19 Front output shaft assy 0JWV-062301-3000 $155.62
21 Bearing 30499-03501 $63.76
22 Stopper nut, bearing 0800-062206 $12.13
23 Bearing 25 30499-02501 $50.43
24 Bushing 0JWV-062208-3001 $21.18
25 Oil seal 35x50x7 0800-062204 $18.10
26 O-ring 88x2.5 0180-062205 $12.13
27 Shim (t=0.50) 0800-062203-0004 $2.99
27 Shim (t=0.10) 0800-062203 $2.99
27 Shim (t=0.20) 0800-062203-0001 $2.99
27 Shim (t=0.30) 0800-062203-0002 $2.99
27 Shim (t=0.40) 0800-062203-0003 $2.99
27 Adjusting washer, driven bevel gear t=0.1 0800-062203-0050 $2.99
28 Driven bevel gear bearing seat 0800-062202-10002 $64.74
29 Rear output bushing 0JWV-060101-3000 $60.91
30 Bolt m8x28 0JYA-062104 Sold in quantities of 6 $17.94
31 Bevel gear assy SH-0JWV-0621A0 $312.71
