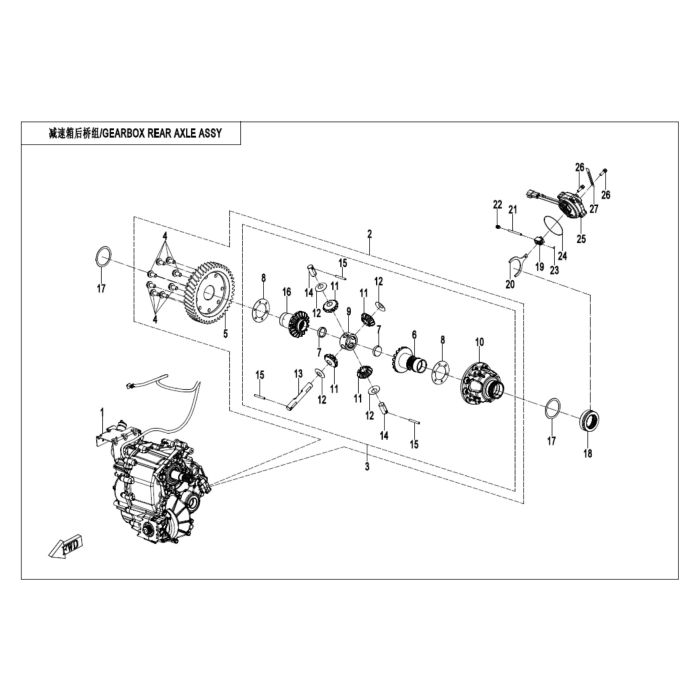

GEARBOX REAR AXLE ASSY

Be the first to review this product

Grouped product items
Product Name
1 Gearbox assy 0NYV-06010Z-3015 $2,280.06
2 Rear gear case differential assy 0NYV-06900Z-3003 $512.13
3 Differential assy 0NYV-069100-3003 $331.72
5 Rear gear case gear 0NYV-069001-3000 $220.95
6 Lh shaft gear 0NYV-069106-3003 $116.13
7 Shaft gear seal cover 0NYV-069107-3000 $2.99
8 Semiaxis gear gaske t=0.6 0NYV-069105-3000-Q0-00001 $7.34
8 Semiaxis gear gaske t=0.7 0NYV-069105-3000-Q0-00002 $7.34
8 Semiaxis gear gaske t=0.8 0NYV-069105-3000-Q0-00003 $7.34
8 Semiaxis gear gaske t=0.9 0NYV-069105-3000-Q0-00004 $7.34
8 Semiaxis gear gaske t=1.0 0NYV-069105-3000-Q0-00005 $7.34
8 Semiaxis gear gaske t=1.2 0NYV-069105-3000-Q0-00006 $7.34
9 Cross bushing Q870-333102 $42.35
10 Differential housing 0NYV-069103-3000 $140.85
11 Planet gear Q870-333105 $39.28
12 Spherical washer Q870-333109 $2.99
13 Planet gear shaft Q870-333106 $30.43
14 Short planet gear shaft Q870-333107 $19.64
15 Pin 30906-0504000 $1.54
16 Rh cv shaft gear 0NYV-069102-3003 $112.31
17 Shim 61x50.5x0.98 Q820-330003-00800 $4.52
17 Shim 61x50.5x0.10 Q820-330003-00100 $2.99
17 Shim 61x50.5x0.30 Q820-330003-00200 $2.99
17 Shim 61x50.5x0.50 Q820-330003-00300 $2.99
17 Shim 61x50.5x0.90 Q820-330003-00400 $4.52
17 Shim 61x50.5x0.92 Q820-330003-00500 $4.52
17 Shim 61x50.5x0.94 Q820-330003-00600 $4.52
17 Shim 61x50.5x0.96 Q820-330003-00700 $4.52
17 Shim 61x50.5x1.00 Q820-330003-00900 $4.52
18 Spline bushing 0NYV-070001-3000 $39.28
19 Block assy. Q890-310010 $58.06
20 Fork Q870-330002 $18.10
21 Pin shaft Q870-330004 $2.99
22 Screw m8×10 30130-080010810 Sold in quantities of 6 $9.24
23 Pin shaft 30913-0300550 $1.54
24 O'ring 67.5 x 2 Q830-310012-10000 $6.06
25 Electrical rear gear case motor 9AWV-152910-8000 $314.18
26 Bolt, m6x1.0x22 0010-080013-0010 Sold in quantities of 6 $9.24
