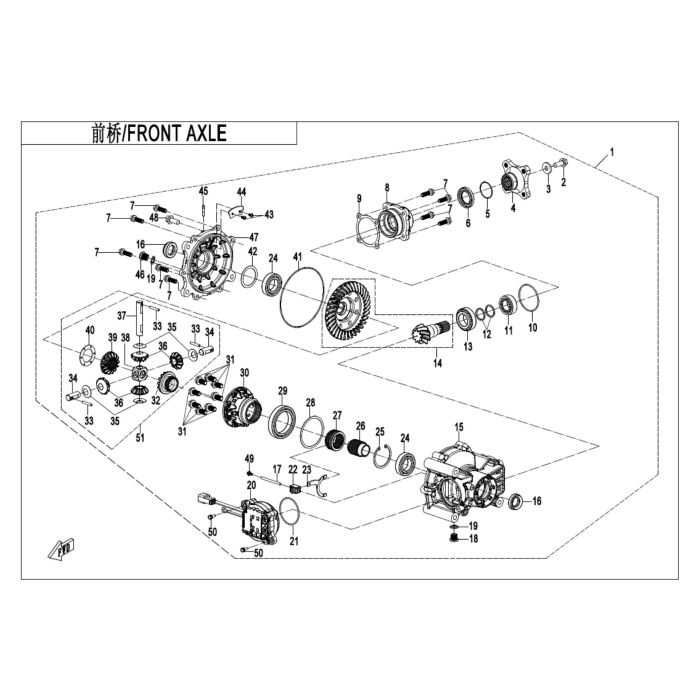

| 1 Front gear case assy Q890-310000-40001 $1,149.91 |
| 2 Bolt, m10x1.25x20 0GR0-062203 Sold in quantities of 6 $27.12 |
| 3 Washer 10 x 27.5 x 4 0GR0-062204 Sold in quantities of 6 $17.94 |
| 4 Coupler Q850-331002 $70.91 |
| 5 O-ring 25x2 0800-062205 Sold in quantities of 2 $9.04 |
| 6 Oil seal 35x50x7 0800-062204 $18.10 |
| 7 Bolt, m8x1.25x28 0110-060011-0010 Sold in quantities of 6 $24.42 |
| 8 Bearing seat, front axle Q830-311002-00001 $51.40 |
| 9 Shim 0.30 Q830-310023-00200 Sold in quantities of 6 $27.12 |
| 9 Shim 0.20 Q830-310023-00100 Sold in quantities of 6 $27.12 |
| 10 O'ring 55 x 2.5 Q830-310006-10000 $7.60 |
| 11 Bearing 25x47x17 33005 30409-02500 $40.91 |
| 12 Adjusting washer 32×25.4 t=2.40 Q830-311003-00001-00400 $3.02 |
| 12 Adjusting washer 32×25.4 t=3.00 Q830-311003-00001-01400 $3.02 |
| 12 Adjusting washer 32×25.4 t=2.90 Q830-311003-00001-01300 $3.02 |
| 12 Adjusting washer 32×25.4 t=2.80 Q830-311003-00001-01200 $3.02 |
| 12 Adjusting washer 32×25.4 t=2.70 Q830-311003-00001-01100 $3.02 |
| 12 Adjusting washer 32×25.4 t=2.60 Q830-311003-00001-01000 $3.02 |
| 12 Adjusting washer 32×25.4 t=2.50 Q830-311003-00001-00900 $3.02 |
| 12 Adjusting washer 32×25.4 t=2.48 Q830-311003-00001-00800 $3.02 |
| 12 Adjusting washer 32×25.4 t=2.44 Q830-311003-00001-00600 $3.02 |
| 12 Adjusting washer 32×25.4 t=2.30 Q830-311003-00001-00300 $3.02 |
| 12 Adjusting washer 32×25.4 t=2.20 Q830-311003-00001-00200 $3.02 |
| 12 Adjusting washer 32×25.4 t=2.10 Q830-311003-00001-00100 $3.02 |
| 12 Shim 32x25.4x2.46 Q830-311003-00001-00700 Sold in quantities of 6 $17.94 |
| 12 Shim 32x25.4x2.42 Q830-311003-00001-00500 Sold in quantities of 6 $17.94 |
| 13 Bearing 30×55×17 32006 30409-03000 $36.18 |
| 14 Bevel gear assy, front gear case Q890-3100A0 $327.39 |
| 15 Front gear case body Q890-310001-00001 $123.32 |
| 16 Oil seal 24x38x8 0180-311001 $6.06 |
| 17 Pin , shaft Q830-310003 $18.35 |
| 18 Magnetic drain bolt m14x1.25x12 0180-332100 Sold in quantities of 6 $54.30 |
| 19 Washer 14 0180-011006 Sold in quantities of 6 $17.94 |
| 20 Electrical front gear case motor 9AWV-152900-8000 $314.18 |
| 21 O'ring 67.5 x 2 Q830-310012-10000 $6.06 |
| 22 Block assy. Q890-310010 $58.06 |
| 23 Shift fork Q890-310003 $9.05 |
| 24 Bearing 6006 30x55x13 30400-03001 $27.24 |
| 25 Retainer 55 30800-05505 Sold in quantities of 6 $17.94 |
| 26 Drive clutch cover Q830-310014 $51.38 |
| 27 Spline bushing Q830-310013 $34.24 |
| 28 Shim 79.5x68x0.60 Q830-310015-00600 Sold in quantities of 6 $27.12 |
| 28 Shim 79.5x68x0.50 Q830-310015-00500 Sold in quantities of 6 $27.12 |
| 28 Shim 79.5x68x0.40 Q830-310015-00400 Sold in quantities of 6 $27.12 |
| 28 Shim 79.5x68x0.30 Q830-310015-00300 Sold in quantities of 6 $27.12 |
| 28 Shim 79.5x68x0.20 Q830-310015-00200 Sold in quantities of 6 $27.12 |
| 28 Shim 79.5x68x0.10 Q830-310015-00100 Sold in quantities of 6 $27.12 |
| 29 Bearing 61911 (55×80×13) 30400-05500 $58.97 |
| 30 Differential housing Q890-313002 $132.25 |
| 32 Gear ccv shaft Q830-313004 $82.22 |
| 33 Straight pin 5×30 30906-0503000 $1.54 |
| 34 Planet gear shaft, short Q820-333005 $10.59 |
| 35 Friction-redcution washer 0181-313011 Sold in quantities of 2 $5.98 |
| 36 Middle gear, front differential 0180-313003-00004 $41.50 |
| 37 Planet gear axle Q820-333006 $19.64 |
| 38 Cross bushing Q820-333008 $43.48 |
| 39 Driven gear, front differential 0180-313006-00001 $63.72 |
| 40 Gear washer Q800-313005-00200 $4.52 |
| 40 Gear washer Q800-313005-00100 $4.52 |
| 41 O-ring 141x2.4 0180-310005 Sold in quantities of 2 $5.98 |
| 42 Shim 54.5x43x1.00 Q830-310009-00600 Sold in quantities of 6 $17.94 |
| 42 Shim 54.5x43x0.50 Q830-310009-00500 Sold in quantities of 6 $17.94 |
| 42 Shim 54.5x43x0.40 Q830-310009-00400 Sold in quantities of 6 $17.94 |
| 42 Shim 54.5x43x0.30 Q830-310009-00300 Sold in quantities of 6 $17.94 |
| 42 Shim 54.5x43x0.20 Q830-310009-00200 Sold in quantities of 6 $17.94 |
| 42 Shim 54.5x43x0.10 Q830-310009-00100 Sold in quantities of 6 $17.94 |
| 43 Cross screw gb818 m4x8 30105-040008410 Sold in quantities of 6 $27.12 |
| 44 Oil baffle Q820-330007-10000 $2.99 |
| 45 Joint, breather pipe 0180-311004-0020 $2.99 |
| 46 Bolt m14x1.25x12 0180-021008-00001 Sold in quantities of 2 $9.04 |
| 47 Front gear case cover Q890-310002 $67.83 |
| 48 Bolt, m10x1.25x25 0180-330004-0010 Sold in quantities of 6 $17.94 |
| 51 Differential assy Q830-3130A0 $153.42 |
