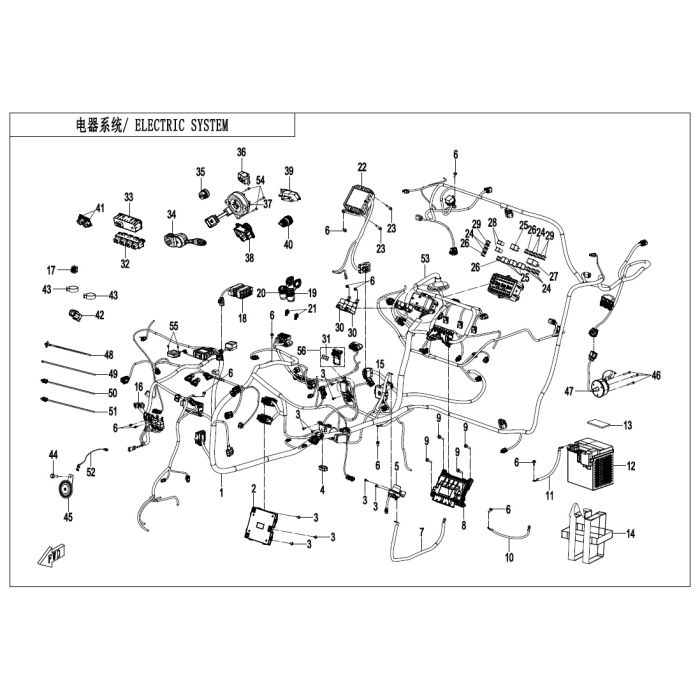

| 1 Main harness 5DYV-150100-2600 $1,320.58 |
| 2 Vehicle controller 5GYV-151900-1000 $516.13 |
| 4 Diagnosis connector cover CFCV-11H016-2000-M1 $3.67 |
| 5 Starter relay 5BWV-150510-5301 $54.47 |
| 7 Starter cable 5GYV-150320-1001 $56.52 |
| 8 Ecm assy 5DYV-001000-3100 $504.71 |
| 9 Cross recessed pan head tapping screw 30110-630320010 $3.02 |
| 10 Engine negative cable 5GYV-150430-1000 $45.46 |
| 11 Battery negative cable 5GYV-150420-1002 $30.83 |
| 12 Battery 32ah 31023004 $260.35 |
| 13 Foam (lh & rh) 5270-150001 $1.54 |
| 14 Carry belt for battery 9060-152100 $20.55 |
| 15 Junction box cover 5BWV-156902-5100-M1 $35.97 |
| 16 Fuse 30a 5BY4-151301 $7.34 |
| 17 Clip CFCV-CBC005-2000-M1 $31.86 |
| 18 T-box north america_without usb SN1V-691100-1300-14 $519.56 |
| 19 Power outlet 6WWV-150500-5000-10 $61.88 |
| 20 Usb output seat assy 9AWV-151200-8000 $103.80 |
| 21 Clasp 6GU#-150001-6000-M1 $2.99 |
| 22 Regulator 5GYV-151000-1000 $314.18 |
| 23 Bolt m6x30 30006-060030810 Sold in quantities of 6 $9.24 |
| 24 Fuse 15a 806A-151305 Sold in quantities of 2 $7.34 |
| 25 Auxiliary relay CFCV-150525-2000-M1 $20.55 |
| 26 Fuse 10a 806A-151302 Sold in quantities of 2 $29.36 |
| 27 Auxiliary relay 30a 9010-150350 $17.98 |
| 28 Fuse 60a CFCV-150005-4504 $14.68 |
| 29 Fuse 25a 806A-151307 $3.67 |
| 30 40a relay CFCV-150522-2000-M1 $25.69 |
| 31 Anf fuse 80a CFCV-156215-4500 $7.34 |
| 32 Function switch 5FYV-169500-1202 $125.38 |
| 33 2wd/4wd switch 5FYV-169080-1003 $92.49 |
| 34 Switchgroup 5GYV-169480-1200 $100.71 |
| 35 One-click start switch 5FYV-169150-1002 $63.72 |
| 36 Electrical damping switch 5FYV-169550-1002 $96.60 |
| 37 Clock spring 5FYV-169560-1004 $137.27 |
| 38 Dimmer switch 5FYV-169030-1001 $100.71 |
| 39 Volume switch 5FYV-169590-1002 $70.91 |
| 40 Mode switch 5FYV-169090-1001 $88.38 |
| 41 Switch hole cover 6pin 5ASV-152200-6001 $11.01 |
| 42 Plug, t-box connector CFCV-156103-2000 $16.65 |
| 43 T-box rubber ring 6KMV-150901-B002 Sold in quantities of 2 $5.98 |
| 44 Bolt, m8x1.25x14 (black) 30006-080014810 Sold in quantities of 6 $9.24 |
| 45 Horn 9DQV-151400-3000 $39.53 |
| 46 Screw m5x35 30105-050035410 $1.54 |
| 47 Trailer power socket 9DQV-151300-3100-10 $101.74 |
| 48 Tie band 7030-150005 Sold in quantities of 6 $17.94 |
| 49 Mounting ties 5x250 8010-150003 Sold in quantities of 6 $9.24 |
| 50 Tie band zdg4.7x194 9DS#-150009-6100-M1 $7.34 |
| 51 Tie band 5ASV-150009-6000-M1 $2.99 |
| 52 Horn adapter cable 5HYV-150191-2F00 $20.55 |
| 53 Efi auxiliary cable 5CYV-150200-3004 $308.31 |
| 54 Screw m5x16 30102-050016810 Sold in quantities of 6 $17.94 |
| 55 Tapping screw st4.2x13 30110-421130010 Sold in quantities of 6 $9.24 |
| 56 80a fuse box CFCV-156444-2000-M1 $33.40 |
