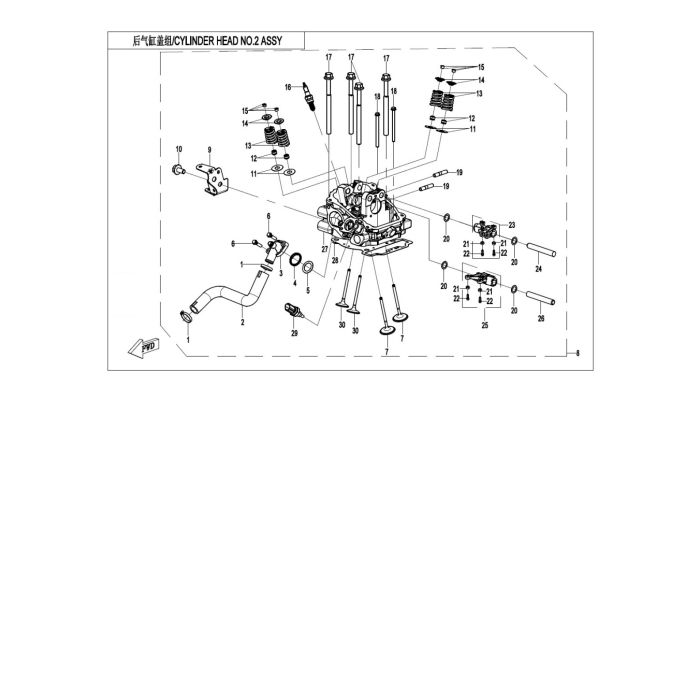

CYLINDER HEAD NO.2

Grouped product items
Product Name
1 Clamp d25 30603-125020 $2.99
2 Connecting pipe, front rear cylinder 0JWV-026001-3000 $22.71
4 Seal ring 0010-022802 Sold in quantities of 2 $5.98
5 Washer 20.5x30x0.8 0800-026002 $1.54
6 Bolt, m6x1.0x30 0010-060012-0010 Sold in quantities of 6 $9.24
7 Intake valve 0JYV-022004-4000 $36.29
8 Cylinder 2 head assy SH-0JWF-0261B0 $522.74
9 Pipe bracket 0JWV-026002-3001 $18.35
10 Bolt, m10x1.5x20 30006-103020810 Sold in quantities of 6 $17.94
11 Lower seat, valve spring 0JYV-022008-4000 $2.99
12 Oil seal, valve 0JYV-022300-4000 $4.52
13 Valve spring 0JYV-022006-4002 $10.59
14 Upper seat, valve spring 0JYV-022007-4000 $7.60
15 Lock clip, valve 0JYV-022016-4000 $1.54
16 Spark plug 0JWD-170200-7000 $37.51
17 Bolt, cylinder 0800-022003-00001 $6.06
18 Bolt, m6x1.0x80 0800-022009-00001 $1.54
19 Stud 0180-022003-00002 $1.54
20 Washer 12.3x18.5x0.5 0800-022002 $1.54
21 Adjust nut 0800-022506 $1.54
22 Adjust screw 0800-022510 $9.05
23 Rocker arm assy, exhaust 0800-022600-20000 $77.08
24 Shaft, rocker arm 0800-022001 $23.12
26 Swing arm shaft, intake 0JYV-022001-4000-10 $33.40
27 Rear cylinder head assy 0JWV-026100-3000 $518.41
28 Gasket, cylinder head 0800-022200-00002 $34.75
29 Water temperature sensor 018B-022810 $31.86
30 Exhaust valve 0JYV-022005-4000 $41.88
