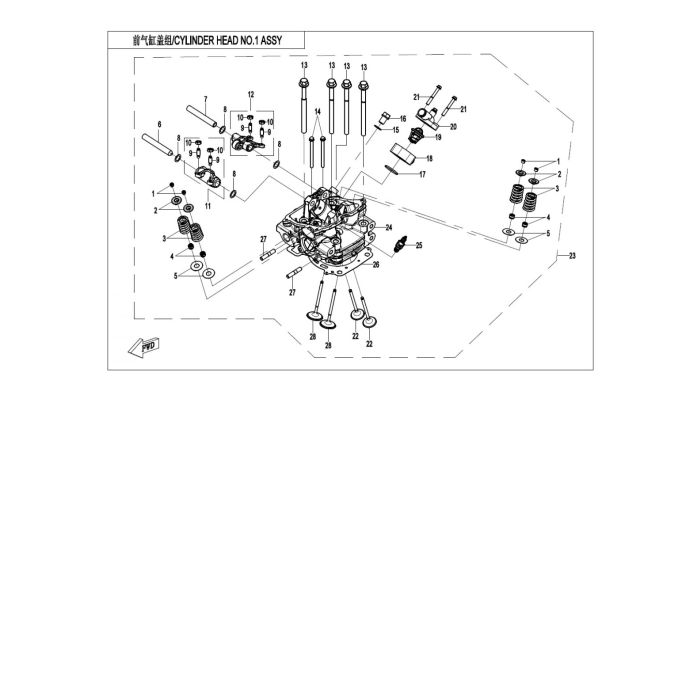

CYLINDER HEAD NO.1

Grouped product items
Product Name
1 Lock clip, valve 0JYV-022016-4000 $1.54
2 Upper seat, valve spring 0JYV-022007-4000 $7.60
3 Valve spring 0JYV-022006-4002 $10.59
4 Oil seal, valve 0JYV-022300-4000 $4.52
5 Lower seat, valve spring 0JYV-022008-4000 $2.99
6 Shaft, rocker arm 0800-022001 $23.12
7 Swing arm shaft, intake 0JYV-022001-4000-10 $33.40
8 Washer 12.3x18.5x0.5 0800-022002 $1.54
9 Adjust screw 0800-022510 $9.05
10 Adjust nut 0800-022506 $1.54
11 Rocker arm assy, exhaust 0800-022600-20000 $77.08
13 Bolt, cylinder 0800-022003-00001 $6.06
14 Bolt, m6x1.0x80 0800-022009-00001 $1.54
15 Washer 12.2×18×1.5 0800-022014 $2.99
16 Screw plug m12x1.5 0800-022015-00001 Sold in quantities of 6 $17.94
17 O-ring, 28x2.65 30502-028000N Sold in quantities of 2 $5.98
18 Seat,thermostat 0800-022012 $23.12
19 Thermostat 0800-022700 $47.43
21 Bolt, m6x1.0x50 0010-013010-0010 Sold in quantities of 6 $9.24
22 Intake valve 0JYV-022004-4000 $36.29
23 Cylinder 1 head assy SH-0JWF-0221B0 $506.30
24 Front cylinder head assy 0JWV-022100-3000 $518.41
25 Spark plug 0JWD-170200-7000 $37.51
26 Gasket, cylinder head 0800-022200-00002 $34.75
27 Stud 0180-022003-00002 $1.54
28 Exhaust valve 0JYV-022005-4000 $41.88
