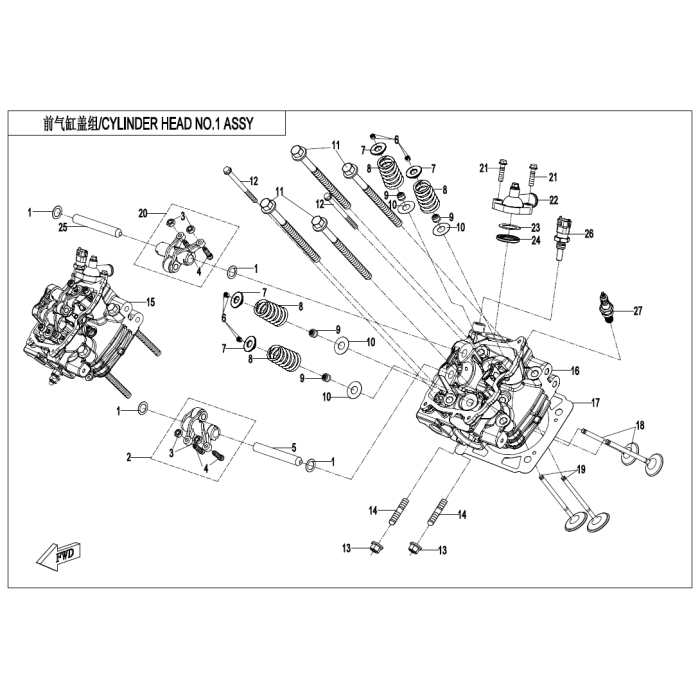

CYLINDER HEAD NO.1 ASSY

Grouped product items
Product Name
1 Washer 12.3x18.5x0.5 0800-022002 $1.54
2 Rocker arm assy, exhaust 0800-022600-20000 $77.08
3 Adjust nut 0800-022506 $1.54
4 Adjust screw 0800-022510 $9.05
5 Shaft, rocker arm 0800-022001 $23.12
6 Lock clip, valve 0JYV-022016-4000 $1.54
7 Upper seat, valve spring 0JYV-022007-4000 $7.60
8 Valve spring 0JYV-022006-4002 $10.59
9 Oil seal, valve 0JYV-022300-4000 $4.52
10 Lower seat, valve spring 0JYV-022008-4000 $2.99
11 Bolt, cylinder m10x1.5x146 0JY0-022003-00001 $7.60
12 Bolt m6x85 0060-013021-00002 Sold in quantities of 6 $17.94
13 Joint nut, exhaust pipe 8010-020001 Sold in quantities of 6 $9.24
14 Stud 0180-022003-00002 $1.54
15 Cylinder head assy, first cylinder 0JYD-0220A0 $573.01
17 Gasket, cylinder head 0800-022200-00002 $34.75
18 Exhaust valve 0JYV-022005-4000 $41.88
19 Intake valve 0JYV-022004-4000 $36.29
21 Bolt, m6x1.0x30 0010-060012-0010 Sold in quantities of 6 $9.24
23 Washer 20.5x30x0.8 0800-026002 $1.54
24 Seal ring 0010-022802 Sold in quantities of 2 $5.98
25 Swing arm shaft, intake 0JYV-022001-4000-10 $33.40
26 Water temperature sensor 018B-022810 $31.86
27 Spark plug 0JWD-170200-7000 $37.51
