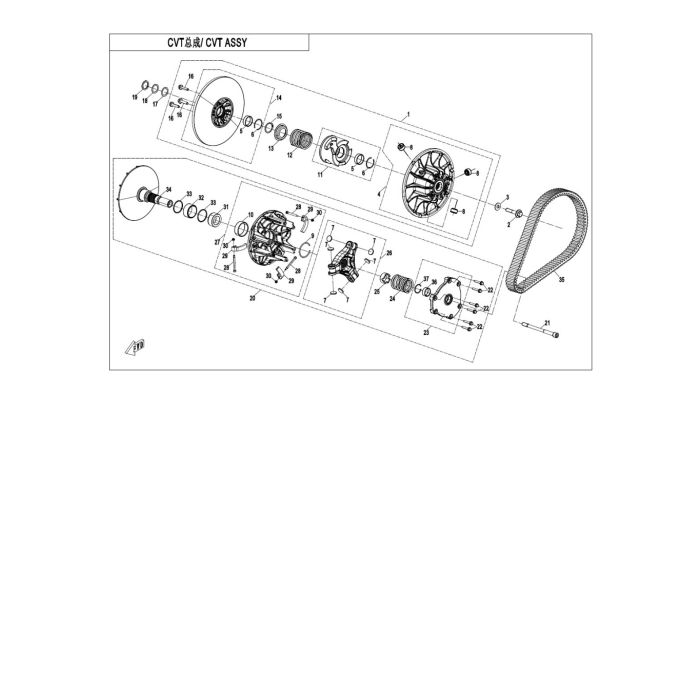

CVT ASSY

Be the first to review this product

Grouped product items
Product Name
1 Driven pulley assy 0JWV-052000-3002 $517.43
4 Driven fixed pulley assy 0JWV-052100-3002 $320.31
5 Bearing 0JWV-052202-3000 $43.80
6 Circlip 0JWV-052203-3000 $2.99
7 Thrust disc slider 0JWV-051601-3000 $42.85
8 Driven fixed pulley roller 0JWV-052003-3001 $50.43
9 Circlip 0JWV-051103-3000 $2.99
10 Bearing 0JWV-051102-3000 $87.52
11 Driven pulley cam assy 0JWV-052300-3002 $130.82
12 Driven pulley spring 0JWV-052001-3001 $28.55
13 Driven pulley spring seat 0JWV-052002-3000 $9.05
14 Driven slider assy 0JWV-052200-3001 $136.27
15 Circlip for shaft 30801-03505 $2.99
16 Bolt 30023-100045160 $9.05
17 Driven pulley washer 1(2.0mm) 0JWV-050002-3000 $4.52
18 Driven pulley washer 2(2.6mm) 0JWV-050003-3000 $4.52
19 Driven pulley washer 4(1.5mm) 0JWV-050005-3000 $4.52
20 Drive pulley assy 0JWV-051000-3002 $576.91
22 Bolt, m6x35 30006-060035810 Sold in quantities of 6 $9.24
23 Drive slider position disc assy 0JWV-051300-3001 $167.37
24 Spring, drive pulley 0JWV-051002-3000 $28.55
25 Drive pulley nut 0JWV-051001-3001 $21.18
26 Thrust disc assy 0JWV-051600-3001 $258.85
27 Drive sliding pulley assy 0JWV-051100-3001 $314.18
28 Inner hex bolt 0JWV-051105-3000 $12.13
29 Weight slider assy 0JWV-051110-3001 $35.21
30 Nut 30220-050810 $1.54
31 Drive pulley bushing 0JWV-051006-3000 $46.25
32 Bearing assy, drive pulley 0JWV-051400-3001 $102.77
33 Drive pulley bearing gasket 0JWV-051007-3001 $2.99
34 Drive fixed pulley assy 0JWV-051200-3001 $497.29
35 Cvt belt 0JWV-055000-3000 $399.01
36 Bearing 0JWV-051302-3000 $43.80
37 Circlip 30805-03205 $2.99
