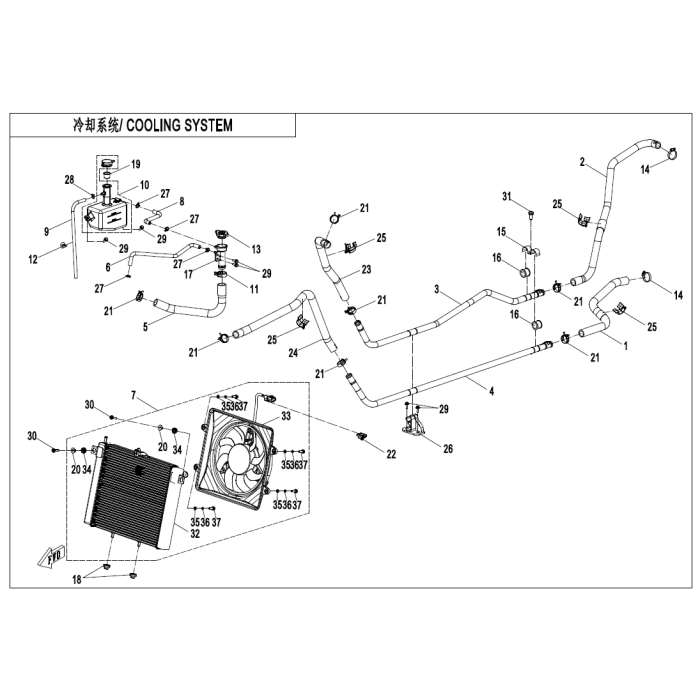

| 1 Water inlet pipe, engine 5BWV-180003-5000 $42.14 |
| 2 Water outlet pipe, engine 5BWV-180004-5000 $57.55 |
| 3 Water inlet pipe, aluminum 5BWV-180005-5000 $99.69 |
| 4 Water outlet pipe, aluminum 5BWV-180006-5000 $91.46 |
| 5 Joint pipe, water filler 5BWV-180007-5000 $34.94 |
| 6 Overflow hose, radiator 5BWV-180008-5000 $20.55 |
| 7 Radiator assy 5BWV-181000-5000 $543.94 |
| 8 Connecting pipe, reservoir tank 5HY0-180003 $42.52 |
| 9 Overflow hose, reservoir 5HY0-180008 $23.12 |
| 10 Reservoir tank assy 5HY0-180010 $48.30 |
| 11 Steel band clamp 34 7000-180007-00001 $10.59 |
| 12 Tie band 7030-150005 Sold in quantities of 6 $17.94 |
| 13 Cap, radiator 8010-180024 $30.83 |
| 15 Water pipe buckle 9030-180006 $3.67 |
| 17 Port, water filler 9060-180025-1000 $43.68 |
| 18 Pin rubber cap, radiator 9060-180026 Sold in quantities of 2 $5.98 |
| 19 Gasket, reservoir 9060-180903 $1.54 |
| 20 Rubber cousion tube, radiator 9060-180029 Sold in quantities of 2 $7.34 |
| 21 Clamp b30 A000-180006 Sold in quantities of 6 $36.36 |
| 22 Clip CFCV-CAC002-2000-M1 $2.99 |
| 23 Water inlet pipe, radiator 5BWV-180001-5000 $52.41 |
| 24 Water outlet pipe, radiator 5BWV-180002-5000 $45.22 |
| 25 Hose clip 5ASV-180008-6000 $4.52 |
| 26 Bracket, water pipe 5BWV-043054-5000 $20.55 |
| 27 Clamp a13 30601-113010 Sold in quantities of 6 $9.24 |
| 28 Clamp a11 30601-111010 Sold in quantities of 6 $9.24 |
| 29 Bolt, m6x1.0x16 30006-060016810 Sold in quantities of 6 $9.24 |
| 30 Screw m6x25 30006-060025810 Sold in quantities of 6 $9.24 |
| 31 Screw gb9074.1, m6x1.0x16 30112-060016410 Sold in quantities of 6 $17.94 |
| 32 Radiator 5BWV-181100-5000 $284.82 |
| 33 Fan motor 5BWV-181200-5000 $210.68 |
| 34 Damping rubber mat 6KM#-181001-8001 $4.52 |
| 35 Washer 6 30306-060112 Sold in quantities of 6 $9.24 |
| 36 Washer 6 30303-060920 Sold in quantities of 6 $9.24 |
| 37 Bolt, m6x1.0x20 30006-060020810 Sold in quantities of 6 $25.20 |
