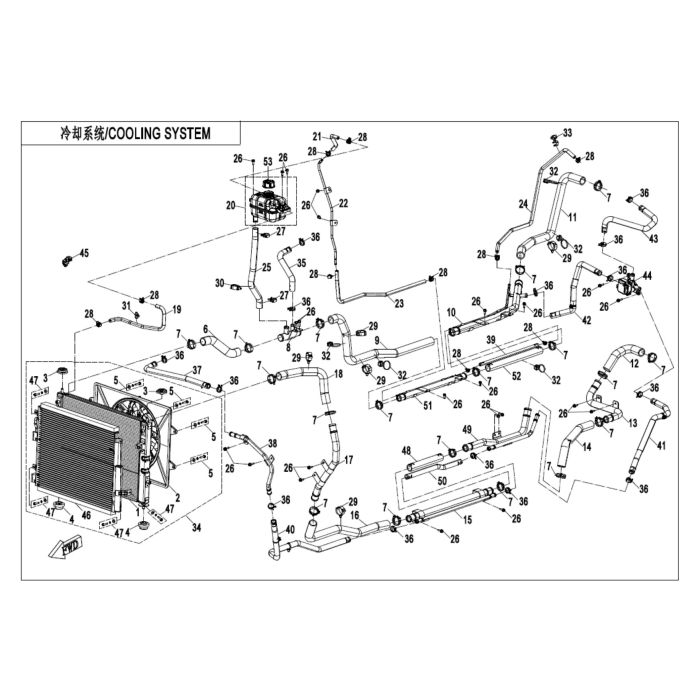

| 1 Radiator 5HYV-181120-6001 $138.00 |
| 2 Fan 5HYV-181130-6001 $118.18 |
| 3 Upper insulation 5HYV-181140-6000 $42.14 |
| 4 Lower insulation 5HYV-181150-6000 $42.14 |
| 5 Bolt assy 5HYV-181100-6000-20 $12.13 |
| 6 Radiator inlet pipe 5HYV-182040-6000 $38.54 |
| 7 Clamp b38 5HYV-187002-6000 $4.52 |
| 8 4-way al pipe 5HYV-355090-9000 $35.57 |
| 9 Connecting tube 1 5HYV-182500-6001 $52.41 |
| 10 Connecting al pipe 5SYV-355010-8301 $55.50 |
| 11 Engine water intlet pipe 5HYV-182050-6000 $46.25 |
| 12 Engine water outlet pipe 5HYV-182060-6000 $41.11 |
| 13 Connecting alum pipe 1 5HYV-183500-6000 $53.36 |
| 14 Connecting tube 2 5HYV-182510-6000 $39.53 |
| 15 Heater intake pipe 1 5SYV-352110-8300 $43.16 |
| 16 Connecting tube 3 5SYV-182520-8000 $35.97 |
| 17 Radiator inlet alum pipe 5HYV-183030-6000 $31.86 |
| 18 Radiator inlet pipe 5HYV-182030-6000 $45.46 |
| 19 Radiator air removal pipe 5HYV-182400-6001 $30.83 |
| 20 Engine expansion box 5HYV-184030-6000 $64.74 |
| 21 Connecting tube 4 5HYV-182530-6001 $17.98 |
| 22 Engine removal alum pipe 5HYV-183420-6000 $41.11 |
| 23 Connecting tube 5 5HYV-182540-6002 $38.54 |
| 24 Engine removal pipe 5HYV-182420-6001 $39.53 |
| 25 Engine feed pipe 5HYV-182410-6000 $39.53 |
| 26 Bolt, m6x1.0x16 30006-060016810 Sold in quantities of 6 $9.24 |
| 28 Clamp 30605-114060 $1.54 |
| 29 Clasp 37 5HYV-188003-6000 $2.99 |
| 30 Clasp 27 5HYV-188002-6000 $2.99 |
| 31 Clasp 15 5HYV-188001-6000 $2.99 |
| 32 Clip 15-37 5HYV-188004-6000 $2.99 |
| 33 Clip 15-20 5HYV-188005-6000 $2.99 |
| 34 Cooling module 5HYV-181100-9002 $563.46 |
| 35 Heater outlet pipe 5HYV-352200-9001 $23.12 |
| 36 Clamp 30601-223050 $4.52 |
| 37 Heater intake hose 2 5HYV-352107-9000 $35.97 |
| 38 Heater intake pipe 1 5HYV-352110-9000 $50.36 |
| 39 Connecting tube 8 5SYV-182570-8001 $23.12 |
| 40 Heater intake hose 2 5SYV-352102-8300 $49.41 |
| 41 3-way valve outlet hose 2 5HYV-352103-9000 $41.11 |
| 42 3-way valve outlet hose 1 5SYV-352103-8300 $38.54 |
| 43 3-way valve intake hose 5HYV-352101-9000 $33.40 |
| 44 3-way electronic water valve 5HYV-354600-9002 $206.19 |
| 45 Outdoor temp. sensor 5HYV-354300-9001 $33.40 |
| 46 Condenser assy 5HYV-351200-9002 $282.62 |
| 47 Bolt 5HYV-181100-9000-20 $4.52 |
| 48 Connecting tube 7 5SYV-182560-8000 $28.26 |
| 49 Heater intake pipe 2 5SYV-352120-8300 $35.97 |
| 50 Heater intake hose 1 5SYV-352101-8300 $33.40 |
| 51 Connecting alu pipe 2 5SYV-183510-8001 $43.16 |
| 52 Connecting tube 6 5SYV-182550-8000 $37.55 |
| 53 Pressure cap 5HYV-184032-6000-21 $37.55 |
