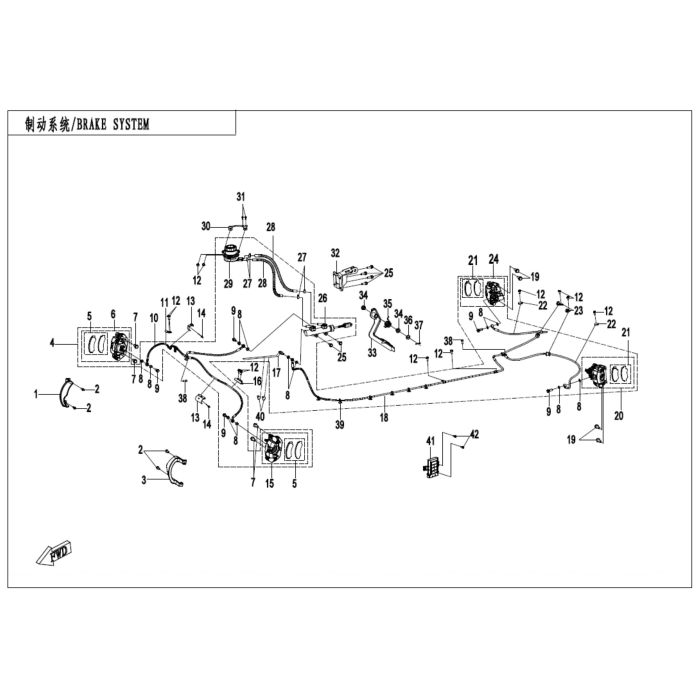

| 1 Guard, front rh brake caliper 5BY0-080008 $9.05 |
| 2 Bolt, m6x1.25x14 8010-000004 Sold in quantities of 6 $9.24 |
| 3 Guard, front lh brake caliper 5BY0-080007 $9.05 |
| 5 Front brake pad assy 5HYV-0811A0 $107.53 |
| 6 Front rh brake caliper assy 9AWV-081200-4000 $193.79 |
| 7 Bolt, m10x1.25x25 30006-102025810 Sold in quantities of 6 $17.94 |
| 9 Banjo bolt (m10x1.0x21) 7020-081004 Sold in quantities of 6 $17.94 |
| 10 Front brake fluid pipe assy 5KWV-080150-1000 $124.06 |
| 11 Clip front brake fluid pipe, rh 5HY0-080004 $7.34 |
| 13 Plastic clasp 5BY0-080002 $4.52 |
| 14 Single rivet 4×8 30902-0401320 Sold in quantities of 6 $9.24 |
| 15 Front lh brake caliper assy 9AWV-081100-4000 $193.79 |
| 16 Clip front brake fluid pipe, lh 5HY0-080003 $2.99 |
| 17 Hydraulic sensor switchassy 5HYV-080010-6000 $62.69 |
| 18 Rear brake hose assy 5KWV-080160-1400 $222.42 |
| 19 Hex bolt m10x1.25x40 30006-102040810 Sold in quantities of 6 $17.94 |
| 20 Rear lh epb caliper assy 5KWV-081000-1400-20 $393.38 |
| 21 Rear brake pad assy 5HYV-0813A0 $73.27 |
| 22 Clip, rear brake fluid pipe 5HY0-080002 $6.06 |
| 23 Wire clip, oil hose 5HYV-080410-1C00 $4.52 |
| 24 Rear rh epb caliper assy 5KWV-081000-1400-21 $393.38 |
| 25 Bolt, m8x1.25x25 30006-080025810 Sold in quantities of 6 $9.24 |
| 26 Master cylinder 5SYV-081100-6000 $172.51 |
| 27 Pipe clip, master cylinder 7020-081002 $2.99 |
| 28 Reservoir hose 5ASV-081001-6000 $47.27 |
| 29 Reservoir assy 5BW1-080150-20000 $115.10 |
| 30 Bracket, oil cup 5UWB-030110 $41.11 |
| 31 Tapping screw st4.8×16 30110-480160010 Sold in quantities of 6 $9.24 |
| 32 Fixed bracket, foot pedal 5BY0-080010 $57.09 |
| 33 Brake pedal assy 5ASV-082000-6001 $77.08 |
| 34 Bushing 9060-105002 Sold in quantities of 2 $9.04 |
| 35 Return spring 9060-080003 $17.98 |
| 36 Washer 12 30306-120112 Sold in quantities of 6 $9.24 |
| 37 Cotter pin 3.2x22 30903-0322210 Sold in quantities of 6 $9.24 |
| 38 Inner hex screw m6x1x16 30102-060016810 Sold in quantities of 6 $9.24 |
| 39 Tie band 7030-150005 Sold in quantities of 6 $17.94 |
| 40 Mounting ties 5x250 8010-150003 Sold in quantities of 6 $9.24 |
| 41 Epb controller 5ASV-1500001 $346.56 |
| 42 Bolt, m6x1.0x16 30006-060016810 Sold in quantities of 6 $9.24 |
