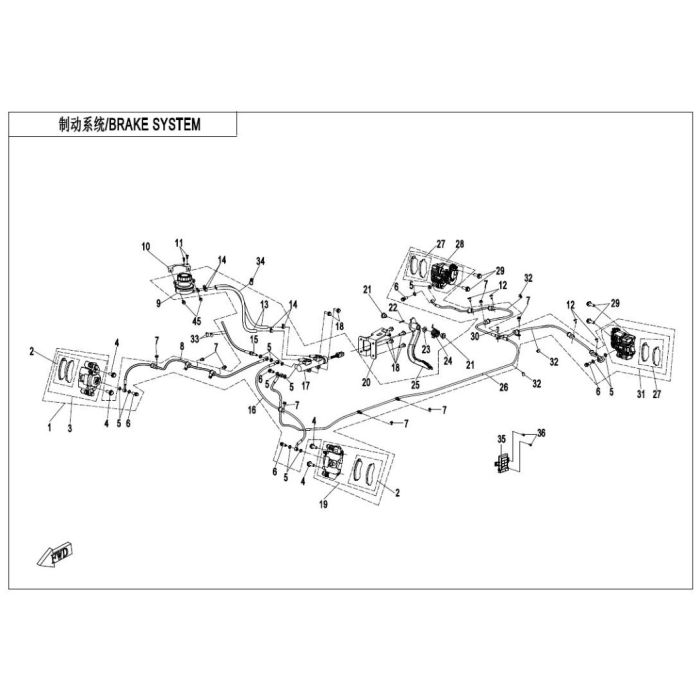

BRAKE SYSTEM

Be the first to review this product

Grouped product items
Product Name
02 Front brake pad assy 5HYV-0811A0 $107.53
03 Rh front brake caliper 7DHV-081400-1400 $202.60
04 Bolt, m10x1.25x25 30006-102025810 Sold in quantities of 6 $17.94
06 Bolt, fuel pipe 6KM#-080103-8101 $10.59
08 Rh front brake fluid hose 5ASV-081020-1000 $106.88
09 Reservoir assy 5BW1-080150-20000 $115.10
10 Bracket, oil cup 5UWB-030110 $41.11
11 Tapping screw st4.8×16 30110-480160010 Sold in quantities of 6 $9.24
12 Open-end flat head blind rivet 30902-0501320 $1.51
13 Reservoir hose 5ASV-081001-6000 $47.27
14 Pipe clip, master cylinder 7020-081002 $2.99
15 Hydraulic induction switch 5HY0-080010-20000 $38.02
16 Lh front brake fluid hose 5ASV-081010-1000 $78.10
17 Brake master cylinder assy 7DHV-081C00-1000 $140.94
18 Bolt, m8x1.25x25 30006-080025810 Sold in quantities of 6 $9.24
19 Front lh brake caliper assy 7DHV-081300-1400 $202.60
20 Fixed bracket, foot pedal 5BY0-080010 $57.09
21 Bushing 9060-105002 Sold in quantities of 2 $9.04
22 Cotter pin 3.2x22 30903-0322210 Sold in quantities of 6 $9.24
23 Washer 12 30306-120112 Sold in quantities of 6 $9.24
24 Return spring 9060-080003 $17.98
25 Brake pedal assy 5ASV-082000-6001 $77.08
26 Rear brake fluid hose 5ASV-081030-1000 $195.26
27 Rear brake pad assy 5ASV-0813A0 $98.96
28 Rear lh caliper assy 7DHV-081700-1400 $369.97
29 Hex bolt m10x1.25x40 30006-102040810 Sold in quantities of 6 $17.94
30 Inner hex screw m6x1x16 30102-060016810 Sold in quantities of 6 $9.24
31 Rear rh caliper assy 7DHV-081800-1400 $369.97
32 Tie band 7030-150005 Sold in quantities of 6 $17.94
33 Mounting ties 5x250 8010-150003 Sold in quantities of 6 $9.24
34 Mounting ties 9010-150004 Sold in quantities of 6 $22.02
35 Epb controller 5ASV-1500001 $346.56
36 Bolt, m6x1.0x16 30006-060016810 Sold in quantities of 6 $9.24
