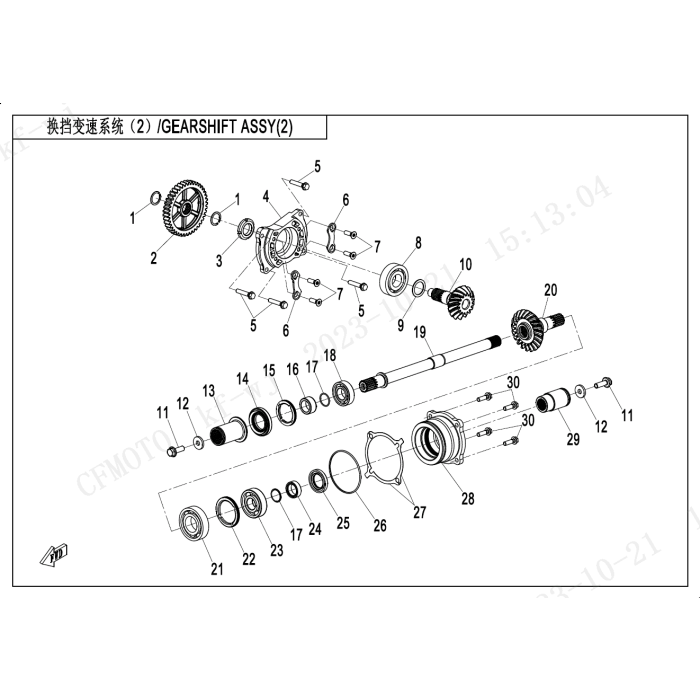

TRANSMISSION SYSTEM II

Be the first to review this product

Grouped product items
Product Name	Qty
1 RETAINER 25 0180-061007-0050 Sold in quantities of 2 $1.54	– +
2 DRIVEN GEAR, OUTPUT 0800-062102 $112.02	– +
6 LIMITATOR , BEARING 0180-062104-0010 $4.52	– +
7 SCREW M8×25 30124-080025810 Sold in quantities of 6 $1.54	– +
8 BEARING 28x68x18 0110-041007 $96.13	– +
9 ADJUSTING WASHER, DRIVE BEVEL GEAR t=1.400-1.449 0JYV-062101-1E00-Q0-00001 $1.54	– +
9 ADJUSTING WASHER, DRIVE BEVEL GEAR t=1.450-1.499 0JYV-062101-1E00-Q0-00002 $1.54	– +
9 ADJUSTING WASHER, DRIVE BEVEL GEAR t=1.500-1.549 0JYV-062101-1E00-Q0-00003 $1.54	– +
9 ADJUSTING WASHER, DRIVE BEVEL GEAR t=1.550-1.549 0JYV-062101-1E00-Q0-00004 $1.54	– +
9 ADJUSTING WASHER, DRIVE BEVEL GEAR t=1.600-1.649 0JYV-062101-1E00-Q0-00005 $1.54	– +
11 LOCK NUT, BEVEL GEAR 0JWA-060002-00001 $6.06	– +
12 WASHER 10 X 27.5 X 4 0GR0-062204 Sold in quantities of 6 $2.99	– +
14 OIL SEAL 35X61X9 0JWA-062302-00001 $27.24	– +
15 BEARING RETAINER, FRONT OUT 0180-060008 $25.69	– +
17 O-RING 25X2 0800-062205 Sold in quantities of 2 $4.52	– +
18 BEARING 25 30400-02501 $15.11	– +
21 BEARING 30499-03501 $63.76	– +
22 STOPPER NUT, BEARING 0800-062206 $12.13	– +
23 BEARING 25 30499-02501 $50.43	– +
25 OIL SEAL 35X50X7 0800-062204 $18.10	– +
26 O-RING 88X2.5 0180-062205 $12.13	– +
27 SHIM (t=0.10) 0800-062203 $2.99	– +
27 SHIM (t=0.20) 0800-062203-0001 $2.99	– +
27 SHIM (t=0.30) 0800-062203-0002 $2.99	– +
27 SHIM (t=0.40) 0800-062203-0003 $2.99	– +
27 SHIM (t=0.50) 0800-062203-0004 $2.99	– +
27 ADJUSTING WASHER, DRIVEN BEVEL GEAR t=0.1 0800-062203-0050 $2.99	– +
28 DRIVEN BEVEL GEAR BEARING SEAT 0800-062202-10001 $80.16	– +
30 BOLT M8x28 0JYA-062104 Sold in quantities of 6 $2.99	– +
