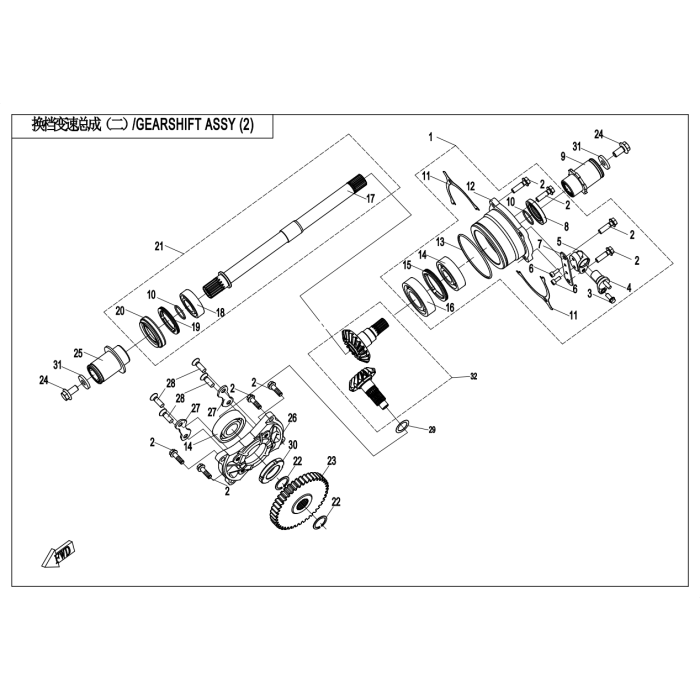

Transmission system (ii)

Be the first to review this product

Grouped product items
Product Name	Qty
1 Driven bevel gear 0800-0622B0-00001 $185.72	– +
2 Bolt m8x28 0JYA-062104 Sold in quantities of 6 $17.94	– +
3 Bolt, m6x1.0x14 30001-060014810 Sold in quantities of 6 $9.24	Inventory coming soon
4 Sensor, speed 7020-150400 $43.16	– +
5 Mounting seat, speed sensor 0800-062208 $28.26	Inventory coming soon
6 Screw m5x0.8x12 30102-050012810 Sold in quantities of 6 $9.24	Inventory coming soon
7 Mounting plate, speed sensor 0800-062209 $14.68	– +
8 Oil seal 35x50x7 0800-062204 $18.10	– +
9 Rear output sleeve 0JWA-060100 $55.50	– +
10 O-ring 25x2 0800-062205 Sold in quantities of 2 $9.04	– +
11 Shim (t=0.10) 0800-062203 $2.99	– +
12 Driven bevel gear bearing seat 0800-062202-10001 $80.16	Inventory coming soon
13 O-ring 88x2.5 0180-062205 $12.13	– +
14 Bearing 28x68x18 0110-041007 $96.13	– +
15 Stopper nut, bearing 0800-062206 $12.13	– +
16 Bearing 35 30400-03500 $25.70	– +
17 Front output shaft 0JWA-062301-10001 $79.13	Inventory coming soon
18 Bearing 25 30499-02501 $50.43	– +
19 Bearing retainer, front out 0180-060008 $25.69	– +
20 Oil seal 35x61x9 0JWA-062302-00001 $27.24	– +
21 Front output shaft assy 0JWA-062300-10001 $121.85	– +
22 Retainer 25 0180-061007-0050 Sold in quantities of 2 $3.08	– +
23 Driven gear, output 0800-062102 $112.02	– +
24 Lock nut, bevel gear 0JWA-060002-00001 $6.06	– +
25 Front output bushing assy 0GQ0-060100-00001 $43.16	– +
26 Bearing seat, drive bevel gear 0JYA-062103-00001 $70.91	– +
27 Limitator , bearing 0180-062104-0010 $4.52	– +
28 Screw m8×25 30124-080025810 Sold in quantities of 6 $9.24	– +
29 Adjusting washer, drive bevel gear t=1.500-1.549 0JYV-062101-1E00-Q0-00003 $1.54	– +
29 Adjusting washer, drive bevel gear t=1.400-1.449 0JYV-062101-1E00-Q0-00001 $1.54	– +
29 Adjusting washer, drive bevel gear t=1.450-1.499 0JYV-062101-1E00-Q0-00002 $1.54	– +
29 Adjusting washer, drive bevel gear t=1.550-1.549 0JYV-062101-1E00-Q0-00004 $1.54	– +
29 Adjusting washer, drive bevel gear t=1.600-1.649 0JYV-062101-1E00-Q0-00005 $1.54	– +
30 Lock nut, bevel gear 0JYA-062102-00001 $9.05	– +
31 Washer 10 x 27.5 x 4 0GR0-062204 Sold in quantities of 6 $17.94	– +
32 Bevel gear assy 0JYA-0622B0-00002 $278.95	– +
