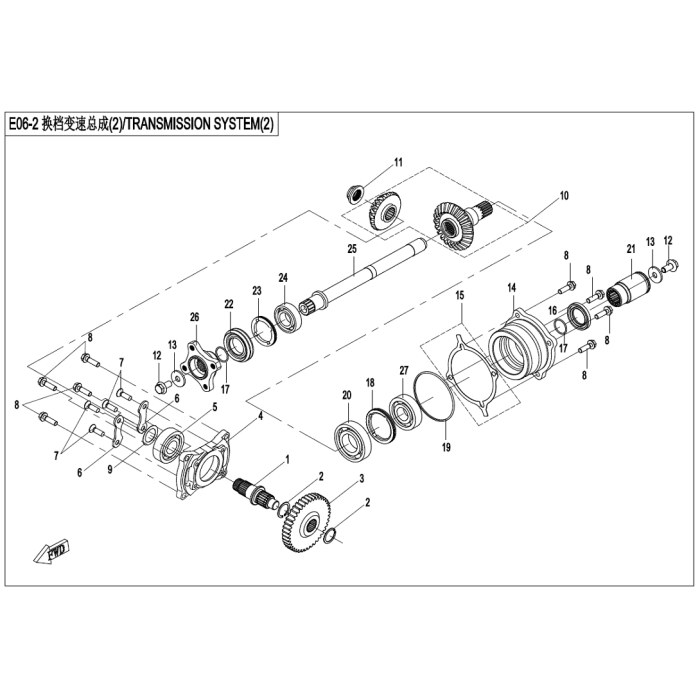

Transmission system ii

Be the first to review this product

Grouped product items
Product Name	Qty
1 Drive bevel gear shaft 0180-062101 $82.22	– +
2 Retainer 25 0180-061007-0050 Sold in quantities of 2 $3.08	– +
3 Output driven gear 0180-062102-00001 $118.92	– +
4 Bearing seat,drive bevel gear 0180-062103-10000 $75.02	– +
5 Bearing 30400-02506 $38.06	Inventory coming soon
6 Limitator , bearing 0180-062104-0010 $4.52	– +
7 Screw m8×25 30124-080025810 Sold in quantities of 6 $9.24	– +
8 Bolt m8x28 0JYA-062104 Sold in quantities of 6 $17.94	– +
9 Adjusting shim, drive bevel gear (0.3) 0180-062105-0003 $2.99	Inventory coming soon
9 Adjusting shim, drive bevel gear (0.15) 0180-062105 Sold in quantities of 6 $17.94	Inventory coming soon
9 Adjusting shim, drive bevel gear (0.20) 0180-062105-0001 Sold in quantities of 2 $5.98	– +
9 Adjusting shim, drive bevel gear (0.25) 0180-062105-0002 Sold in quantities of 2 $5.98	– +
9 Adjusting shim, drive bevel gear (0.35) 0180-062105-0004 $2.99	– +
10 Bevel gear assy 0GR0-0622A0-10001 $234.90	– +
11 Lock nut, bevel gear 0180-062107-00001 $14.68	– +
12 Lock nut, bevel gear 0JWA-060002-00001 $6.06	– +
13 Washer 10 x 27.5 x 4 0GR0-062204 Sold in quantities of 6 $17.94	– +
14 Driven bevel gear bearing seat 0800-062202-10001 $80.16	Inventory coming soon
15 Shim (t=0.50) 0800-062203-0004 $2.99	– +
15 Shim (t=0.40) 0800-062203-0003 $2.99	– +
15 Shim (t=0.10) 0800-062203 $2.99	– +
15 Shim (t=0.20) 0800-062203-0001 $2.99	Inventory coming soon
15 Shim (t=0.30) 0800-062203-0002 $2.99	– +
16 Oil seal 35x50x7 0800-062204 $18.10	– +
17 O-ring 25x2 0800-062205 Sold in quantities of 2 $9.04	– +
18 Stopper nut, bearing 0800-062206 $12.13	– +
19 O-ring 88x2.5 0180-062205 $12.13	– +
20 Bearing 35 30400-03500 $25.70	– +
21 Drive sleeve, engine 9CR6-300201-10000 $47.27	– +
22 Oil seal 35x61x9 0JWA-062302-00001 $27.24	– +
23 Bearing retainer, front out 0180-060008 $25.69	– +
24 Bearing 25 30400-02501 $15.11	– +
25 Front output shaft 0GR0-062301-10001 $116.13	Inventory coming soon
26 Coupler 0GR0-060003 $78.10	– +
27 Bearing 30400-02502 $22.71	– +
