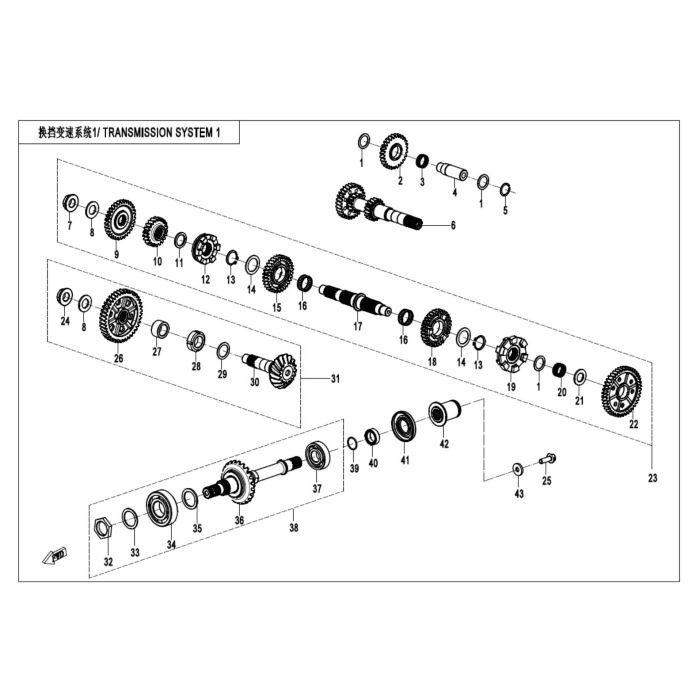

TRANSMISSION SYSTEM (1)

Be the first to review this product

Grouped product items
Product Name	Qty
1 Washer 25x34x1.5 0GR0-061009-00001 Sold in quantities of 6 $27.12	– +
2 Reverse intermediate gear 0LYV-060003-1000 $49.33	– +
3 Needle bearing k25×29×10 30402-02500 $43.80	– +
4 Reverse intermediate gear shaft 0LYV-060001-1000 $55.34	– +
5 Retainer 25 0180-061007-0050 Sold in quantities of 2 $3.08	– +
6 Gearshift main shaft assy 0LYV-060040-1000 $186.45	– +
7 Nut m20×1.5 0LYV-061014-1000 $10.58	– +
8 Washer 21×38×3 0LYV-061013-1000 $4.53	– +
9 Parking gear 0LYV-061012-1000 $54.47	– +
10 Driven shaft output gear 0LYV-061009-1000 $51.38	– +
11 Washer 25.5×35×3 0LYV-061011-1000 $4.53	– +
12 High range sliding bushing 0LYV-061007-1000 $62.80	– +
13 Circlip for shaft 30×2 0LYV-061004-1000 $3.02	– +
14 Washer 30.5×44×1.5 0LYV-061015-1000 $3.02	– +
15 Driven high range gear 0LYV-061008-1000 $71.94	– +
16 Needle bearing 30413-03000 $15.11	– +
17 Driven shaft 0LYV-061001-1000 $125.53	– +
18 Reverse driven gear 0LYV-061006-1000 $73.99	– +
19 Low gear sliding bushing 0LYV-061005-1000 $54.24	– +
20 Needle bearing 24 30402-02402 $10.59	– +
21 Washer 20.5×36×3 0LYV-061002-1000 $4.53	– +
22 Driven low range gear 0LYV-061003-1000 $95.58	– +
23 Driven shaft assy 0LYV-06100Z-1000 $514.78	– +
24 Nut m20×1.5 0LYV-062107-1000 $10.58	– +
25 Lock nut, bevel gear 0JWA-060002-00001 $6.06	Inventory coming soon
26 Output driven gear 0LYV-062102-1000 $113.05	– +
27 Drive bevel gear shaft sleeve 0LYV-062105-1000 $28.26	– +
28 Bevel gear lock nut 0LYV-062101-1000 $7.56	– +
29 Adjusting washer, drive bevel gear t=1.500-1.549 0JYV-062101-1E00-Q0-00003 $1.54	– +
29 Adjusting washer, drive bevel gear t=1.400-1.449 0JYV-062101-1E00-Q0-00001 $1.54	– +
29 Adjusting washer, drive bevel gear t=1.450-1.499 0JYV-062101-1E00-Q0-00002 $1.54	– +
29 Adjusting washer, drive bevel gear t=1.550-1.549 0JYV-062101-1E00-Q0-00004 $1.54	– +
29 Adjusting washer, drive bevel gear t=1.600-1.649 0JYV-062101-1E00-Q0-00005 $1.54	– +
30 Drive bevel gear 0LYV-062106-1000 $248.85	– +
31 Drive bevel gear assy 0LYV-06210Z-1000 $325.44	– +
32 Nut m33×1.5 0LYV-062204-1000 $12.09	– +
33 Driven bevel gear bearing washer 0NYV-066203-1001 $3.02	– +
34 Ball bearing 30499-03500 $72.31	Inventory coming soon
35 Driven bevel gear washer 2.610±0.015 a 0NYV-066202-1001-Q0-00001 $3.02	– +
35 Driven bevel gear washer 2.670±0.015 b 0NYV-066202-1001-Q0-00002 $3.02	– +
35 Driven bevel gear washer 2.730±0.015 c 0NYV-066202-1001-Q0-00003 $3.02	– +
35 Driven bevel gear washer 2.790±0.015 d 0NYV-066202-1001-Q0-00004 $3.02	– +
35 Driven bevel gear washer 2.850±0.015 e 0NYV-066202-1001-Q0-00005 $3.02	– +
35 Driven bevel gear washer 2.910±0.015 f 0NYV-066202-1001-Q0-00006 $3.02	– +
35 Driven bevel gear washer 2.970±0.015 g 0NYV-066202-1001-Q0-00007 $3.02	– +
35 Driven bevel gear washer 3.030±0.015 h 0NYV-066202-1001-Q0-00008 $3.02	– +
35 Driven bevel gear washer 3.090±0.015 i 0NYV-066202-1001-Q0-00009 $3.02	– +
35 Driven bevel gear washer 3.150±0.015 j 0NYV-066202-1001-Q0-00010 $3.02	– +
35 Driven bevel gear washer 3.210±0.015 k 0NYV-066202-1001-Q0-00011 $3.02	– +
36 Driven bevel gear assy 0LYV-062210-1100 $292.32	– +
37 Bearing 25 30499-02501 $50.43	– +
38 Driven bevel gear assy 0LYV-06220Z-1100 $365.97	– +
39 O-ring, 18x3.55 0110-013030 Sold in quantities of 2 $3.08	– +
40 Bushing 0JWV-062208-3001 $21.18	– +
41 Oil seal 35×69×8 0LYV-062203-1000 $31.74	– +
42 Rear output bushing 0LYV-060101-1000 $53.29	– +
43 Washer 10 x 27.5 x 4 0GR0-062204 Sold in quantities of 6 $17.94	– +
