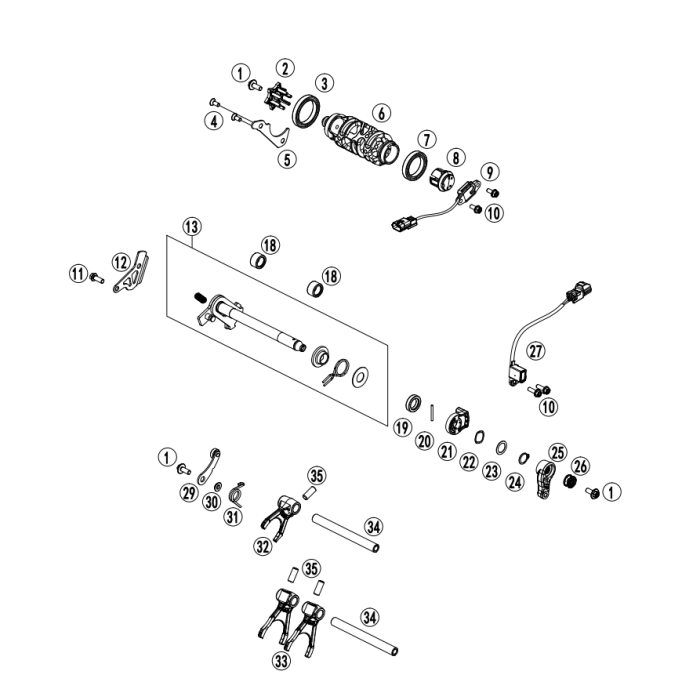

SHIFTING MECHANISM

Be the first to review this product

Grouped product items
Product Name	Qty
1 HH COLLAR SCREW M6X15 TX30 C0000240601500S $1.54	Inventory coming soon
2 SHIFT STAR C90034015000 $57.55	– +
3 DEEP GROOVE BALL BEARINGS 35/47/7 C0625068070 $35.21	– +
4 INT. TORX FLAT HEAD M5X12 T25 C0000190501200S $1.54	Inventory coming soon
5 BEARING RETAINING BRACKET SHIFT DRUM C90034011200 $15.42	Inventory coming soon
6 SHIFT DRUM 6G K-63534012001 $697.06	Inventory coming soon
7 DEEP GROOVE BALL BEARINGS 30/42/7 C0625068060 $31.40	– +
8 MAGNET HOLDER CPL. C90034012020 $50.43	– +
9 GEAR POSITION SENSOR C90011023100 $111.34	– +
10 HH COLLAR SCREW M5X12 TX30 C0000250501200 $15.11	Inventory coming soon
12 BEARING LOCK WASHER (SHIFT SHAFT STOP) C90033022000 $23.12	– +
13 SHIFT SHAFT CPL. 63534005033 $237.10	Inventory coming soon
14 TORSION SPRING 0.8MM C90034013100 $13.57	– +
15 SPRING GUIDE C90034020000 $21.18	– +
16 RETURN SPRING C90034014000 $25.70	– +
17 STOP DISC 14X30X1 C90034050001 $28.26	– +
18 NEEDLE SLEEVE 14/20/12 C90032095000 $10.59	– +
19 SHAFT SEAL RING 14X24X6 C0760142460 $4.52	– +
20 STUD 2,5X24 C0007025241 Sold in quantities of 2 $4.52	– +
21 MAGNET HOLDER C90034050000 $48.55	– +
22 WAVE SPRING C90034050010 $15.11	– +
23 SHIM 14X20X0,5 C0988142005 Sold in quantities of 2 $2.99	– +
24 SEEGER RING 14X1 C0471140100 Sold in quantities of 2 $1.54	– +
25 LINK SUPPORT CAM 6413403000033 $129.23	Inventory coming soon
26 NORDLOCK WASHER M6 C90033041500 $14.68	– +
27 SHIFT SHAFT SENSOR C90034051100 $196.97	Inventory coming soon
29 LOCKING LEVER C63534024000 $39.53	– +
31 SPRING ARREST ARM C90034023000 $2.99	– +
32 SHIFT FORK C90034002000 $51.38	– +
33 SHIFT FORK C90034001000 $60.63	– +
34 SHIFT FORK SHAFT C90034019100 $39.53	– +
35 NEELDE ROLLER D8X20 C0402080200 $2.99	– +
