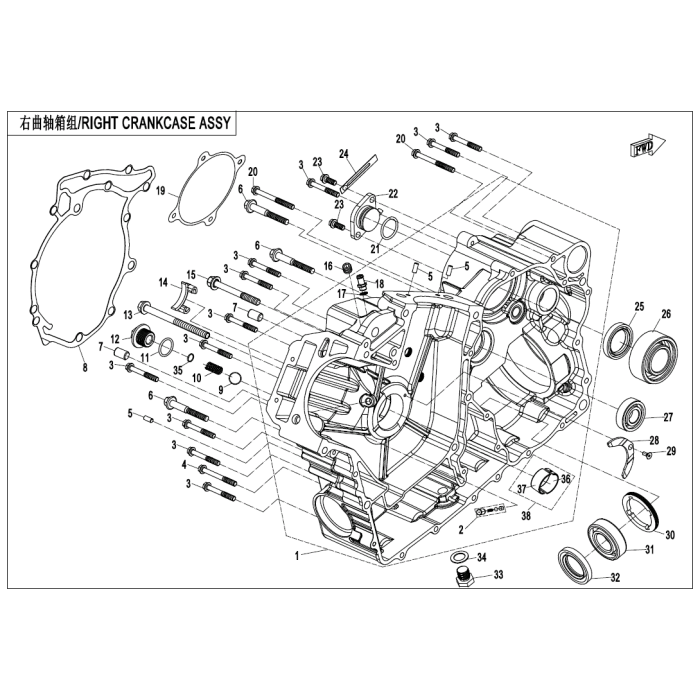

RIGHT CRANKCASE ASSY

Be the first to review this product

Grouped product items
Product Name	Qty
1 RH CRANKCASE ASSY 0JWA-012100-20004 $530.16	– +
2 NOZZLE VALVE ASSY 0800-011400-00001 $35.57	– +
3 BOLT, M6X1.0X45 0180-013208-0010 Sold in quantities of 6 $1.54	– +
4 BOLT, M6X1.0X55 0010-021018-0010 Sold in quantities of 6 $1.54	– +
5 NEEDLE PIN 5X11.8 30406-00500 Sold in quantities of 6 $1.54	– +
6 BOLT, M8X1.25X60 0130-011109-0010 Sold in quantities of 6 $2.99	– +
7 DOWEL PIN f10X14 0010-021005 Sold in quantities of 6 $1.54	– +
8 GASKET, CVT CASE (1) 0JWA-012001 $10.59	– +
9 STEEL BALL 3120015 $1.54	– +
10 SPRING, RELIEF VALVE 0700-012603-1000 $6.06	– +
11 O-RING 19X2.5 0180-332004 Sold in quantities of 2 $1.54	– +
12 SCREW PLUG ,DECOMPRESSOR M20X1.5X13 0GR0-014003 $9.05	– +
13 BOLT 0130-011115-00001 Sold in quantities of 6 $6.06	– +
14 GUIDE, TIMING CHAIN 0800-011007 $11.01	– +
15 BOLT M8x73 0700-012003-00002 Sold in quantities of 6 $4.52	– +
16 SCREW 01A0-012010-00001 $1.54	– +
17 O-RING, 15.8X2.4 0010-011008 Sold in quantities of 2 $1.54	– +
18 JOINT, WATER PUMP COVER 0JWA-080009-00001 $7.60	Inventory coming soon
19 GASKET, CVT CASE (2) 0JWA-012002 $2.99	– +
20 BOLT M6x75 0A70-011005-00001 Sold in quantities of 6 $1.54	– +
21 O-RING 24X2.5 0180-023002 Sold in quantities of 2 $2.99	– +
22 GEAR SENSOR 080V-012200-2000 $38.02	– +
23 BOLT, M6X1.0X16 0010-090005-0010 Sold in quantities of 6 $1.54	– +
24 CABLE CLIP 6 0180-014010 Sold in quantities of 6 $3.67	– +
25 OIL SEAL 30X45X8 0180-012006-10000 $13.57	– +
26 BEARING 3206A 30499-03000 $107.52	– +
27 BEARING 17 6203 30400-01704 $39.28	– +
28 THRUST WASHER 0800-011003 $21.18	– +
29 SCREW M4 X 10 30122-040010850 Sold in quantities of 6 $4.52	– +
30 MIDDLE BEARING RETAINER,FRONT OUTPUT SHAFT 0JWA-012004 $35.57	– +
31 BEARING 25 30400-02501 $15.11	– +
32 OIL SEAL 25X40X8 0010-011002 $13.57	– +
33 MAGNETIC DRAIN BOLT 0JWA-012200-00001 Sold in quantities of 6 $10.59	– +
34 SPACER 14.1X22X1 0JWA-012003 Sold in quantities of 6 $1.54	– +
35 WASHER 6 30304-050440 Sold in quantities of 6 $1.54	– +
38 MAIN PLAIN BEARING COMP. (RED) 0800-0111A0-00001 $40.81	– +
38 MAIN PLAIN BEARING COMP. (BLUE) 0800-0111B0-00001 $53.36	– +
