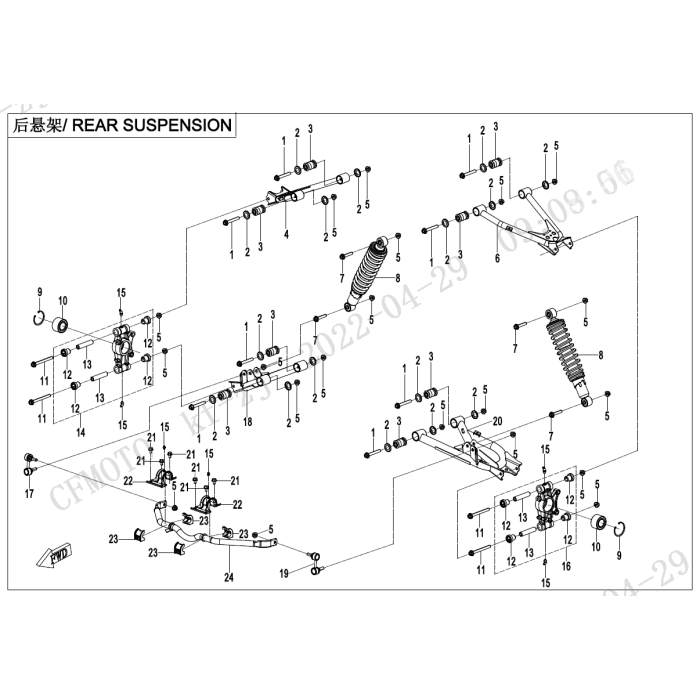

REAR SUSPENSION

Be the first to review this product

Grouped product items
Product Name	Qty
1 BOLT, M10X1.25X70 30006-102070810 Sold in quantities of 6 $2.99	– +
2 CAP, CUSHION SLEEVE 9DSV-050900-6K00 $2.99	– +
3 DAMPING SLEEVE ASSY 9DQV-050900-3000 $13.57	– +
4 REAR RH UPPER SWING ARM 9DSV-060310-6K01-0BP00 $73.99	– +
5 LOCK NUT M10X1.25 30204-102810 Sold in quantities of 6 $1.54	Inventory coming soon
6 REAR LH UPPER SWING ARM 9DSV-060110-6K01-0BP00 $73.99	– +
7 BOLT, M10X1.25X55 30006-102055810 Sold in quantities of 6 $4.52	– +
8 REAR SHOCK ABSORBER ASSY BLACK 9DS#-060600-6000 $146.81	– +
8 REAR SHOCK ABSORBER ASSY FORCE RED 9DS#-060600-6000-0RH00 $204.07	Inventory coming soon
8 REAR SHOCK ABSORBER VEHICLE NEW SILVER WHITE 9DS#-060600-6000-0VN00 $204.07	Inventory coming soon
9 RETAINER 55 30800-05505 Sold in quantities of 6 $2.99	– +
10 BEARING, HUB 9GQ0-050710 $58.97	– +
11 BOLT, M10X1.25X100 30006-102100810 Sold in quantities of 6 $4.52	Inventory coming soon
12 SHORT BUSHING 5ASV-050002-6001 Sold in quantities of 2 $10.59	– +
13 MIDDLE SPACER, REAR BEARING CARRIER 7020-060702-00001 $6.06	– +
14 RH REAR BEARING CARRIER ASSY 7020-0608B0 $222.66	– +
15 ZUT M6 3120100 Sold in quantities of 2 $2.99	– +
16 LH REAR BEARING CARRIER ASSY 7020-0607B0 $224.24	– +
17 BALL PIN, RH 9010-060800-20000 $71.24	– +
18 REAR RH LOWER SWING ARM ASSY 9DQV-060410-3000 $124.57	– +
19 BALL PIN, LH 9010-060700-20000 $71.24	– +
21 BOLT, M8X1.25X12 30006-080012810 Sold in quantities of 6 $1.54	– +
22 PRESS COVER, SWAY BAR 9DS#-060601-6001 $41.50	Inventory coming soon
23 RUBBER SUPPORT 9GQ0-060003 $9.07	– +
24 STABILIZER BAR 9010-060500 $108.94	– +
