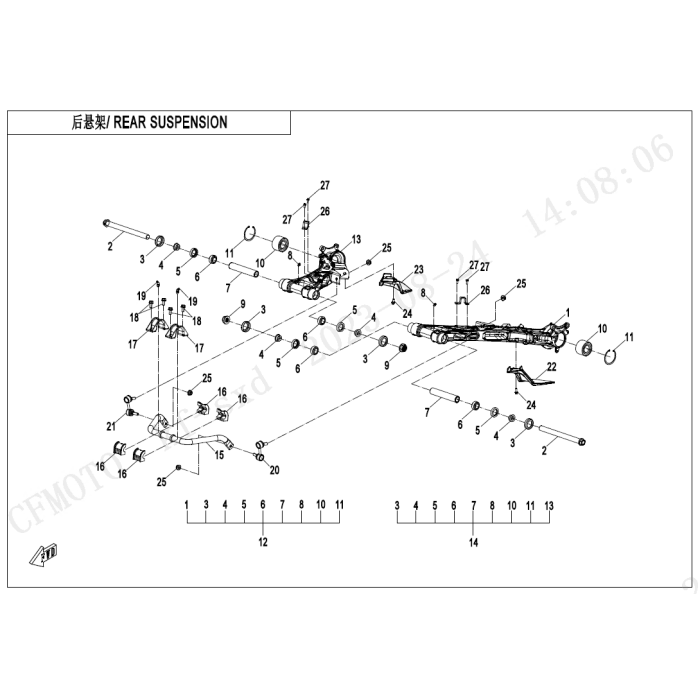

REAR SUSPENSION

Grouped product items
Product Name	Qty
3 DUST COVER 9AWA-060105-10000 $4.52	– +
4 BUSHING, SWING ARM 9AWA-060102 $9.05	– +
5 OIL SEAL 24x38x8 9AWA-060106 $6.06	– +
6 BEARING, REAR SWINGARM 9AWA-060109 $38.06	– +
7 INNER LINER, REAR SWING ARM 9AWA-060101-10000 $13.60	– +
8 ZUT M6 3120100 Sold in quantities of 2 $2.99	– +
9 LOCK NUT, SWING ARM 9AWA-060108 $12.13	– +
10 HUB BEARING 30411-03081 $58.97	– +
11 CIRCLIP FOR HOLE (60) 30800-06005 Sold in quantities of 6 $4.52	– +
16 RUBBER SUPPORT 7000-060003 $6.06	– +
18 BOLT, M8X1.25X16 30006-080016810 Sold in quantities of 6 $1.54	– +
19 GREASE FITTING M6 3121401 $2.99	– +
20 BALL PIN, LH 9010-060700-20000 $71.24	– +
21 BALL PIN, RH 9010-060800-20000 $71.24	– +
22 REAR SUSPENSION PLATE, LH 9AWA-044043 $20.55	Inventory coming soon
23 REAR SUSPENSION PLATE, RH 9AWA-044044 $15.42	Inventory coming soon
24 INNER HEX BOLT M6x14 5BWV-040001-5000 Sold in quantities of 6 $1.54	– +
25 LOCK NUT M10X1.25 30204-102810 Sold in quantities of 6 $1.54	Inventory coming soon
26 BRACKET, PARKING CABLE, REAR SWING ARM 9AWA-060107 $33.40	Inventory coming soon
27 BOLT, M6X1.0X16 30006-060016810 Sold in quantities of 6 $1.54	– +
