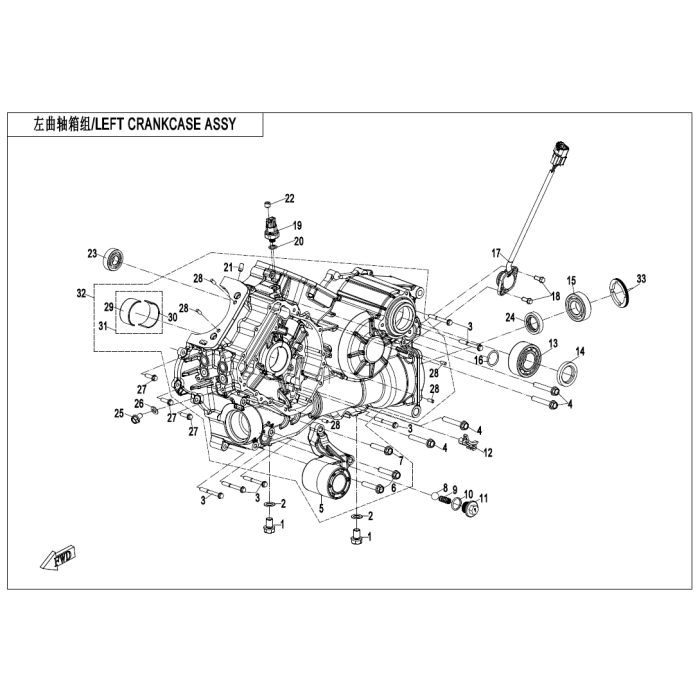

LEFT CRANKCASE ASSY

Be the first to review this product

Grouped product items
Product Name	Qty
1 DRAIN BOLT M12X1.5, MAGNETIC 0180-011500 Sold in quantities of 6 $7.60	– +
2 WASHER 12 0010-021014 Sold in quantities of 6 $1.54	– +
3 BOLT, M6X1.0X50 0010-013010-0010 Sold in quantities of 6 $1.54	– +
4 BOLT, M8X1.25X50 0040-012006-0010 Sold in quantities of 6 $2.99	– +
5 LH FRONT BRACKET 9AWV-450271-8000 $80.16	– +
6 SCREW M8x40 30006-080040110 $2.99	– +
7 BOLT 30006-080035110 $2.99	– +
8 STEEL BALL 3120015 $1.54	– +
9 SPRING, RELIEF VALVE 0700-012603-1000 $6.06	– +
10 O-RING 19X2.5 0180-332004 Sold in quantities of 2 $1.54	– +
11 SCREW PLUG ,DECOMPRESSOR M20X1.5X13 0GR0-014003 $9.05	– +
12 GUIDE, TIMING CHAIN 0800-011007 $11.01	– +
13 BEARING 3206A 30499-03000 $107.52	– +
14 OIL SEAL 30X45X8 0180-012006-10000 $13.57	– +
15 BEARING 25 30400-02501 $15.11	– +
16 O-RING 24X2.5 0180-023002 Sold in quantities of 2 $2.99	– +
17 GEAR SENSOR 0JWV-012200-3000 $51.38	– +
18 BOLT, M6X1.0X16 0010-090005-0010 Sold in quantities of 6 $1.54	– +
19 OIL PRESSURE SWITCH 0800-012400 $41.11	– +
20 WASHER 10 80 0010-060010 Sold in quantities of 6 $2.99	– +
21 NOZZLE VALVE ASSY 0800-011400-00001 $35.57	– +
22 SCREW 01A0-012010-00001 $1.54	– +
23 BEARING 17 6203 30400-01704 $39.28	– +
24 OIL SEAL 25X40X8 0010-011002 $13.57	– +
25 BOLT M8X12.5, FLANGE 0180-332002-0010 Sold in quantities of 6 $1.54	– +
26 WASHER 8.5 0010-023305 Sold in quantities of 6 $4.52	– +
27 BOLT M6x20 0010-023010-0010 Sold in quantities of 6 $1.54	– +
28 NEEDLE PIN 5X11.8 30406-00500 Sold in quantities of 6 $1.54	– +
31 MAIN BEARING ASSY (RED) 0JWV-0111A0 $44.73	– +
31 MAIN BEARING ASSY (BLUE) 0JWV-0111B0 $44.73	– +
32 LH CRANKCASE ASSY 0JWF-0111A0 $582.55	– +
33 MIDDLE BEARING RETAINER,FRONT OUTPUT SHAFT 0JWA-012004 $35.57	– +
