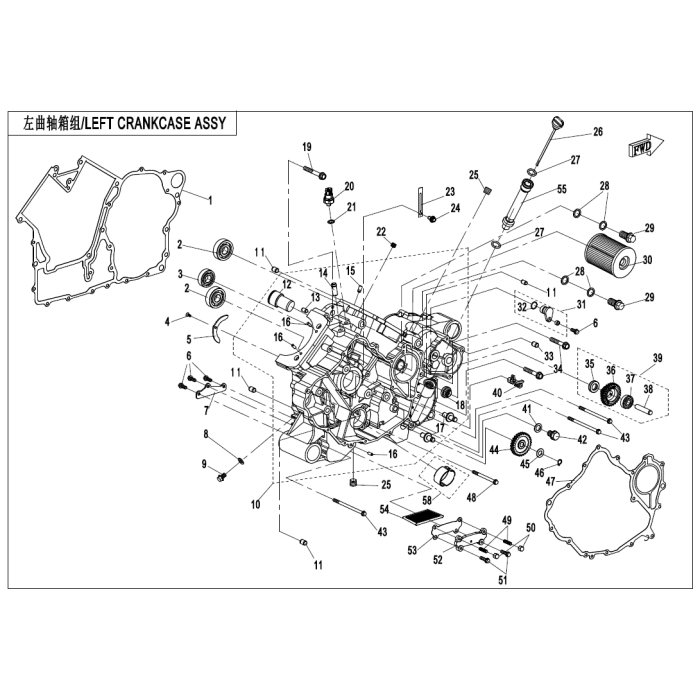

LEFT CRANKCASE ASSY

Be the first to review this product

Grouped product items
Product Name	Qty
1 GASKET, CRANKCASE 0JWA-011001-30000 $39.94	– +
2 BEARING 17 6303 30499-01700 $34.75	– +
3 BEARING 17 6203 30400-01704 $39.28	– +
4 SCREW M4 X 10 30122-040010850 Sold in quantities of 6 $4.52	– +
5 THRUST WASHER 0800-011003 $21.18	– +
6 BOLT, M6X1.0X16 0010-090005-0010 Sold in quantities of 6 $1.54	– +
7 PLATE, OIL STRAINER 0JWA-011008 $11.01	– +
8 WASHER 8.5 0010-023305 Sold in quantities of 6 $4.52	– +
9 BOLT M8X12.5, FLANGE 0180-332002-0010 Sold in quantities of 6 $1.54	– +
10 LEFT CRANKCASE ASSY 0JWA-011100-20001 $455.45	– +
11 DOWEL PIN f10X14 0010-021005 Sold in quantities of 6 $1.54	– +
12 GEARSHAFT, REVERSE 0JWA-060001-10000 $37.55	– +
13 PIN, DOWEL 8X14 0700-022018 $1.54	– +
14 JOINT, BREATHER HOSE 0010-013006-0010 $2.99	– +
15 NOZZLE VALVE ASSY 0800-011400-00001 $35.57	– +
16 NEEDLE PIN 5X11.8 30406-00500 Sold in quantities of 6 $1.54	– +
17 IDLE GEAR SHAFT, BREATHER 0800-011104 $33.40	– +
18 SEAT, BREATHER 0800-011105 $25.69	– +
19 BOLT, M8X1.25X60 0130-011109-0010 Sold in quantities of 6 $2.99	– +
20 OIL PRESSURE SWITCH 0800-012400 $41.11	– +
21 WASHER 10 80 0010-060010 Sold in quantities of 6 $2.99	– +
22 RESTRICTION PLUG 0800-011013-00001 $1.54	– +
23 CABLE CLIP 6 0180-014010 Sold in quantities of 6 $3.67	– +
24 BOLT, M6X1.0X12 0010-021019-0010 Sold in quantities of 6 $1.54	– +
25 SCREW PLUG 0800-011006-00001 $7.34	– +
26 DIPSTICK COMP. ENGINE OIL 0JWA-014100 $30.83	– +
27 O-RING, 18X3.55 0110-013030 Sold in quantities of 2 $1.54	– +
28 WASHER 14 0180-011006 Sold in quantities of 6 $2.99	– +
29 BANJO BOLT M14x1.5x32 0180-011007-0010 $6.06	– +
30 OIL FILTER 0800-011300-0004 $19.65	– +
31 PLUG, SEAL 0130-011400 $7.34	– +
32 O-RING 14X1.44 0130-011303 Sold in quantities of 2 $2.99	– +
33 DOWEL PIN f8X14 0010-080008 Sold in quantities of 6 $1.54	– +
34 BOLT, M8X1.25X50 0040-012006-0010 Sold in quantities of 6 $2.99	– +
35 OIL SEAL 15×26×6 0800-011203 $10.59	– +
36 GEAR, BREATHER 0800-011201 $14.68	– +
37 BEARING 6200-RS 30400-01003 $13.57	– +
38 SHAFT, BREATHER 0800-011202 $17.98	– +
39 BREATHER ASSY 0800-011200 $31.86	– +
40 GUIDE, TIMING CHAIN 0800-011007 $11.01	– +
41 WASHER 12 0010-021014 Sold in quantities of 6 $1.54	– +
42 DRAIN BOLT M12X1.5, MAGNETIC 0180-011500 Sold in quantities of 6 $7.60	– +
43 BOLT, M6X105 0030-011006-0010 Sold in quantities of 6 $2.99	– +
44 IDLE GEAR, BREATHER 0800-011004 $18.35	– +
45 WASHER 10 0800-011005 Sold in quantities of 6 $2.99	– +
46 CIRCLIP 10 30801-01005 Sold in quantities of 6 $1.54	– +
47 GASKET, LEFT CRANKCASE COVER 0JWA-011004-30000 $36.29	– +
48 BOLT M6x75 0A70-011005-00001 Sold in quantities of 6 $1.54	– +
49 SOFT FLUID HOSE, FRONT BRAKE(LH) 5BWB-081010-00001 $126.41	– +
50 CAP-SHAPE BOLT M6 30212-060810 Sold in quantities of 6 $2.99	– +
51 BOLT, M6X1.0X22 0010-080013-0010 Sold in quantities of 6 $1.54	– +
52 OUTER PLATE , OIL STRAINER 0JWA-011002 $20.55	– +
53 OUTER GASKET, STRAINER 0JWA-011003-10000 $1.54	– +
54 OIL STRAINER 0JWA-011009 $15.42	– +
55 JOINT PIPE, OIL DIPSTICK 0800-011011-1000 $43.76	– +
58 MAIN PLAIN BEARING COMP. (RED) 0800-0111A0-00001 $40.81	– +
58 MAIN PLAIN BEARING COMP. (BLUE) 0800-0111B0-00001 $53.36	– +
