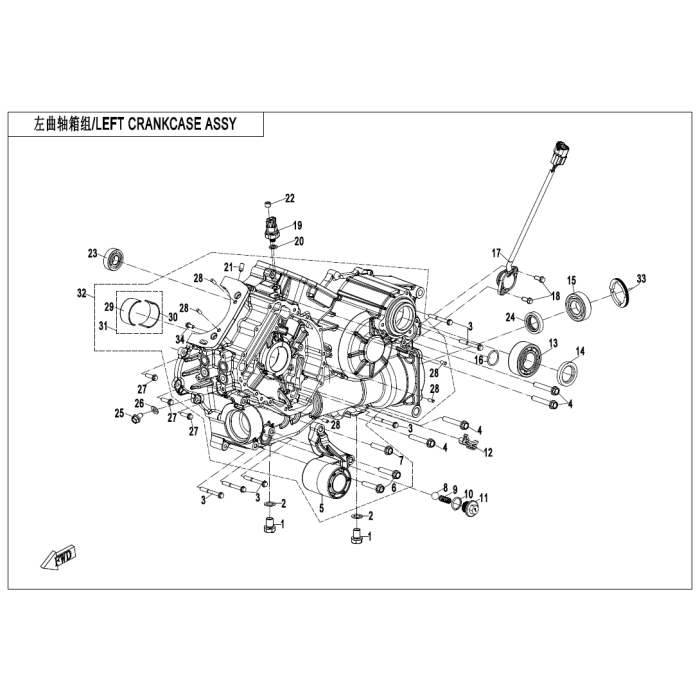

LEFT CRANKCASE ASSY

Be the first to review this product

Grouped product items
Product Name	Qty
2 Washer 12 0010-021014 Sold in quantities of 6 $9.24	– +
3 Bolt, m6x1.0x50 0010-013010-0010 Sold in quantities of 6 $9.24	– +
4 Bolt, m8x1.25x50 0040-012006-0010 Sold in quantities of 6 $17.94	– +
5 Lh front bracket 9AWV-450271-8000 $80.16	– +
6 Screw m8x40 30006-080040110 $2.99	– +
7 Bolt 30006-080035110 $2.99	– +
8 Steel ball 3120015 $1.54	– +
9 Spring, relief valve 0700-012603-1000 $6.06	– +
10 O-ring 19x2.5 0180-332004 Sold in quantities of 2 $3.08	– +
11 Screw plug ,decompressor m20x1.5x13 0GR0-014003 $9.05	Inventory coming soon
12 Guide, timing chain 0800-011007 $11.01	– +
13 Bearing 3206a 30499-03000 $107.52	– +
14 Oil seal 30x45x8 0180-012006-10000 $13.57	– +
15 Bearing 25 30400-02501 $15.11	– +
16 O-ring 24x2.5 0180-023002 Sold in quantities of 2 $5.98	– +
17 Gear sensor 0JWV-012200-3001 $39.05	– +
18 Bolt, m6x1.0x16 0010-090005-0010 Sold in quantities of 6 $9.24	– +
19 Oil pressure switch 0800-012400 $41.11	– +
20 Washer 10 80 0010-060010 Sold in quantities of 6 $17.94	– +
21 Nozzle valve assy 0800-011400-00001 $35.57	– +
22 Screw 01A0-012010-00001 $1.54	– +
23 Ball bearing 17×40×12 30499-01703 $40.81	Inventory coming soon
24 Oil seal 25x40x8 0010-011002 $13.57	– +
25 Bolt m8x12.5, flange 0180-332002-0010 Sold in quantities of 6 $9.24	Inventory coming soon
26 Washer 8.5 0010-023305 Sold in quantities of 6 $27.12	– +
28 Needle pin 5x11.8 30406-00500 Sold in quantities of 6 $9.24	– +
29 Main bearing 1 0JWV-011102-3001-Q0-00001 $21.18	Inventory coming soon
29 Main bearing 1 0JWV-011102-3001-Q0-00002 $21.18	Inventory coming soon
30 Main bearing 2 0JWV-011103-3001-Q0-00001 $21.18	Inventory coming soon
30 Main bearing 2 0JWV-011103-3001-Q0-00002 $21.18	Inventory coming soon
31 Main bearing assy (red) 0JWV-0111A0 $44.73	Inventory coming soon
31 Main bearing assy (blue) 0JWV-0111B0 $44.73	– +
32 Lh crankcase assy SH-0JWF-0111A0-1000 $515.56	Inventory coming soon
33 Middle bearing retainer,front output shaft 0JWA-012004 $35.57	– +
