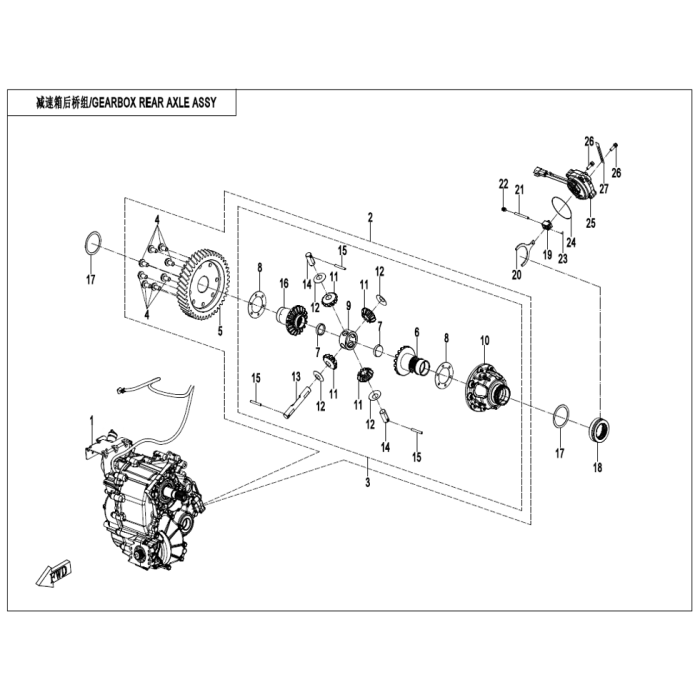

GEARBOX REAR AXLE ASSY

Be the first to review this product

Grouped product items
Product Name	Qty
1 GEARBOX ASSY 0NYV-06010Z-3005 $3,007.36	– +
2 REAR GEAR CASE DIFFERENTIAL ASSY 0NYV-06900Z-3002 $574.36	Inventory coming soon
3 DIFFERENTIAL ASSY 0NYV-069100-3001 $412.21	– +
4 BOLT M10X1.25X22 0181-313100-0010 Sold in quantities of 6 $2.99	Inventory coming soon
5 REAR GEAR CASE GEAR 0NYV-069001-3000 $220.95	– +
6 LH SHAFT GEAR 0NYV-069106-3001 $121.12	– +
7 SHAFT GEAR SEAL COVER 0NYV-069107-3000 $2.99	– +
8 SEMIAXIS GEAR GASKE 0NYV-069105-3001 $7.34	– +
9 CROSS BUSHING Q870-333102 $42.35	– +
10 DIFFERENTIAL HOUSING 0NYV-069103-3000 $140.85	– +
11 PLANET GEAR Q870-333105 $39.28	– +
12 SPHERICAL WASHER Q870-333109 $2.99	– +
13 PLANET GEAR SHAFT Q870-333106 $30.43	– +
14 SHORT PLANET GEAR SHAFT Q870-333107 $19.64	– +
15 PIN 30906-0504000 $1.54	– +
16 RH CV SHAFT GEAR 0NYV-069102-3001 $125.38	– +
17 SHIM 61X50.5X0.10 Q820-330003-00100 $2.99	– +
17 SHIM 61X50.5X0.30 Q820-330003-00200 $2.99	– +
17 SHIM 61X50.5X0.50 Q820-330003-00300 $2.99	– +
17 SHIM 61X50.5X0.90 Q820-330003-00400 $4.52	– +
17 SHIM 61X50.5X0.92 Q820-330003-00500 $4.52	– +
17 SHIM 61X50.5X0.94 Q820-330003-00600 $4.52	– +
17 SHIM 61X50.5X0.96 Q820-330003-00700 $4.52	– +
17 SHIM 61X50.5X0.98 Q820-330003-00800 $4.52	– +
17 SHIM 61X50.5X1.00 Q820-330003-00900 $4.52	– +
18 SPLINE BUSHING 0NYV-070001-3000 $39.28	– +
19 BLOCK ASSY. Q890-310010 $58.06	– +
20 FORK Q870-330002 $18.10	– +
21 PIN SHAFT Q870-330004 $2.99	– +
22 SCREW M8×10 30130-080010810 Sold in quantities of 6 $1.54	– +
23 PIN SHAFT 30913-0300550 $1.54	– +
24 O'RING 67.5 X 2 Q830-310012-10000 $6.06	– +
25 ELECTRICAL REAR GEAR CASE MOTOR 9AWV-152910-8000 $314.18	– +
26 BOLT M6x18 0010-023008-00001 Sold in quantities of 6 $1.54	– +
27 CABLE CLIP 6 0180-014010 Sold in quantities of 6 $3.67	– +
