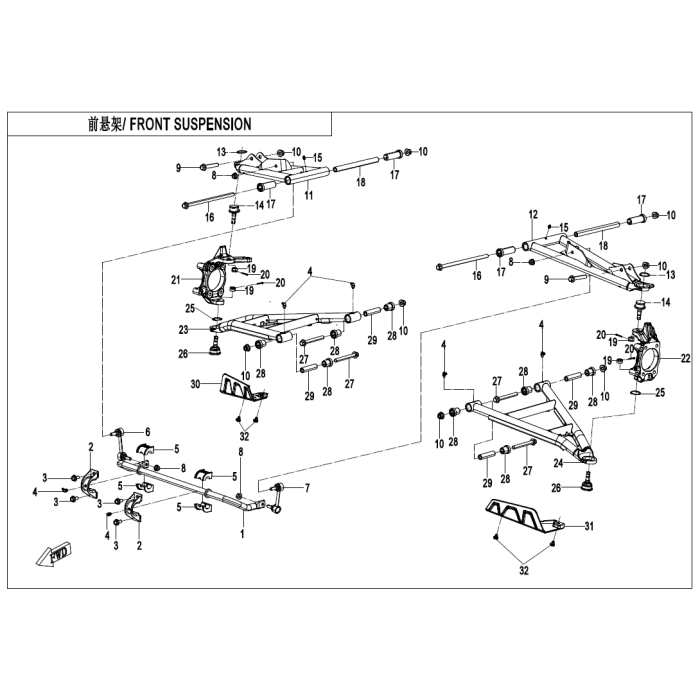

FRONT SUSPENSION

Be the first to review this product

Grouped product items
Product Name	Qty
SWAY BAR PRESS COVER 5GYV-050620-1001 $23.12	– +
1 FRONT SWAY BAR ASSY 5HYV-050610-6000 $92.49	– +
3 HEXAGON FLANGE BOLTS M10x1.25x20 30006-102020810 Sold in quantities of 6 $4.52	– +
4 OIL CUP 90 DEGREE 3121400 $2.99	– +
5 RUBBER SUPPORT 7000-060003 $6.06	– +
6 RH BALL PIN ASSY 5HYV-050660-6000 $41.88	– +
7 LH BALL PIN ASSY 5HYV-050650-6000 $41.88	– +
8 TORQUE TYPE HEXAGON NUTS WITH FLANGE M10×1.25 30204-102810 Sold in quantities of 6 $1.54	– +
9 HEXAGON FLANGE BOLTS M12x1.25x70 30001-122070160 Sold in quantities of 6 $10.59	– +
10 NUT 30204-122110 $2.99	– +
11 FRONT UPPER RH SWING ARM MAUD SPIRIT BLACK 5HYV-050310-6001-0BP00 $145.35	– +
12 FRONT UPPER LH SWING ARM MAUD SPIRIT BLACK 5HYV-050110-6001-0BP00 $145.35	– +
13 CIRCLIPS FOR SHAFT 32 A-TYPE 30801-03205 Sold in quantities of 6 $1.54	– +
14 MAIN PIN ASSY CCVI 9030-050600-10000 $70.65	– +
15 OIL CUP 3120100 Sold in quantities of 2 $2.99	– +
16 SHAFT, SWNG ARM 5SYV-050103-6000 $28.69	– +
17 DAMPING SLEEVE, FRONT UPPER SWING ARM 5BY0-050102 Sold in quantities of 2 $13.57	– +
18 MIDDLE SPACER, SWING ARM 5SYV-050101-6000 $28.69	– +
19 HEXAGON THIN SLOTTED NUTS M12x1.25@COLOR ZINC 30219-122810 Sold in quantities of 6 $2.99	– +
20 SPLIT PINS 3.2x22@COLOR ZINC 30903-0322210 Sold in quantities of 6 $1.54	– +
21 RH STEERING KNUCKLE 5HYV-050801-6000 $149.02	Inventory coming soon
22 LH STEERING KNUCKLE 5HYV-050701-6000 $149.02	Inventory coming soon
23 FRONT LOWER RH SWING ARM ASSY MAUD SPIRIT BLACK 5HYV-050410-6000-0BP00 $182.78	– +
24 FRONT LOWER LH SWING ARM ASSY MAUD SPIRIT BLACK 5HYV-050210-6000-0BP00 $182.78	– +
25 CIRCLIPS FOR SHAFT 34 30801-03405 Sold in quantities of 6 $1.54	– +
26 BALL PIN ASSY CCVI 9060-050900-10000 $84.21	– +
27 HEXAGON FLANGE BOLTS COLOR ZINC TRIVALENT CHROMIUM 30024-122100110 Sold in quantities of 6 $10.59	– +
28 SHORT BUSHING, SWING ARM 5SYV-060202-6000 $10.59	– +
29 SHORT MIDDLE SPACER, SWING ARM 5SYV-060201-6000 $12.13	– +
30 FRONT RH SWING ARM GUARD 5HYV-050401-6000 $23.12	– +
31 FRONT LH SWING ARM GUARD 5HYV-050201-6000 $23.12	– +
32 INNER HEX BOLT M6x14 5BWV-040001-5000 Sold in quantities of 6 $1.54	– +
