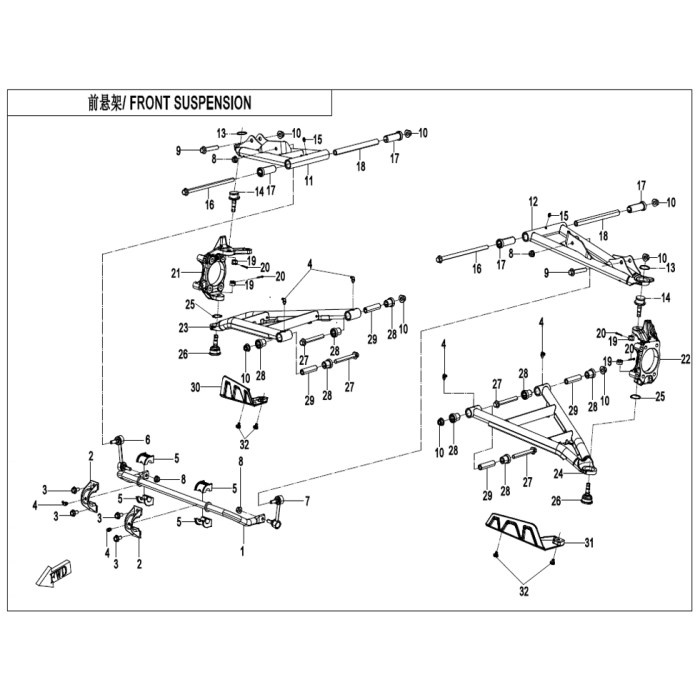

FRONT SUSPENSION

Be the first to review this product

Grouped product items
Product Name	Qty
1 FRONT SWAY BAR ASSY 5HYV-050610-6000 $92.49	– +
2 SWAY BAR PRESS COVER 5GYV-050620-1000 $23.12	– +
3 BOLT, M10X1.25X20 (BLACK) 30006-102020810 Sold in quantities of 6 $4.52	– +
4 GREASE NOZZLE 90° 3121400 $2.99	– +
5 RUBBER SUPPORT 7000-060003 $6.06	– +
6 RH BALL PIN ASSY 5HYV-050660-6000 $41.88	– +
7 LH BALL PIN ASSY 5HYV-050650-6000 $41.88	– +
8 LOCK NUT M10X1.25 30204-102810 Sold in quantities of 6 $1.54	Inventory coming soon
9 BOLT M10x1.25x70 30001-122070160 Sold in quantities of 6 $10.59	– +
10 NUT 30204-122110 $2.99	– +
11 FRONT UPPER RH SWING ARM MAUD SPIRIT BLACK 5HYV-050310-6001-0BP00 $145.35	Inventory coming soon
12 FRONT UPPER LH SWING ARM MAUD SPIRIT BLACK 5HYV-050110-6001-0BP00 $145.35	Inventory coming soon
13 RETAINER 30801-03205 Sold in quantities of 6 $1.54	– +
14 BALL PIN 36mm 9060-050900-10000 $84.21	– +
15 ZUT M6 3120100 Sold in quantities of 2 $2.99	– +
16 SHAFT, SWNG ARM 5SYV-050103-6000 $28.69	– +
17 LONG BUSHING, SWING ARM 23mm 5BY0-050102 Sold in quantities of 2 $13.57	– +
18 MIDDLE SPACER, SWING ARM 5SYV-050101-6000 $28.69	– +
19 CASTLE NUT M12X1.25 30219-122810 Sold in quantities of 6 $2.99	– +
20 COTTER PIN 3.2X22 30903-0322210 Sold in quantities of 6 $1.54	– +
21 RH STEERING KNUCKLE 5HYV-050801-6000 $149.02	– +
22 LH STEERING KNUCKLE 5HYV-050701-6000 $149.02	– +
23 FRONT LOWER RH SWING ARM ASSY MAUD SPIRIT BLACK 5HYV-050410-6000-0BP00 $182.78	– +
24 FRONT LOWER LH SWING ARM ASSY MAUD SPIRIT BLACK 5HYV-050210-6000-0BP00 $182.78	– +
25 RETAINER 34 30801-03405 Sold in quantities of 6 $1.54	– +
26 BALL PIN COMP. 32mm 9030-050600-10000 $70.65	– +
27 BOLT 30024-122100110 Sold in quantities of 6 $10.59	– +
28 SHORT BUSHING, SWING ARM 5SYV-060202-6000 $10.59	– +
29 SHORT MIDDLE SPACER, SWING ARM 5SYV-060201-6000 $12.13	– +
30 FRONT RH SWING ARM GUARD 5HYV-050401-6000 $23.12	– +
31 FRONT LH SWING ARM GUARD 5HYV-050201-6000 $23.12	– +
32 INNER HEX BOLT M6x14 5BWV-040001-5000 Sold in quantities of 6 $1.54	– +
