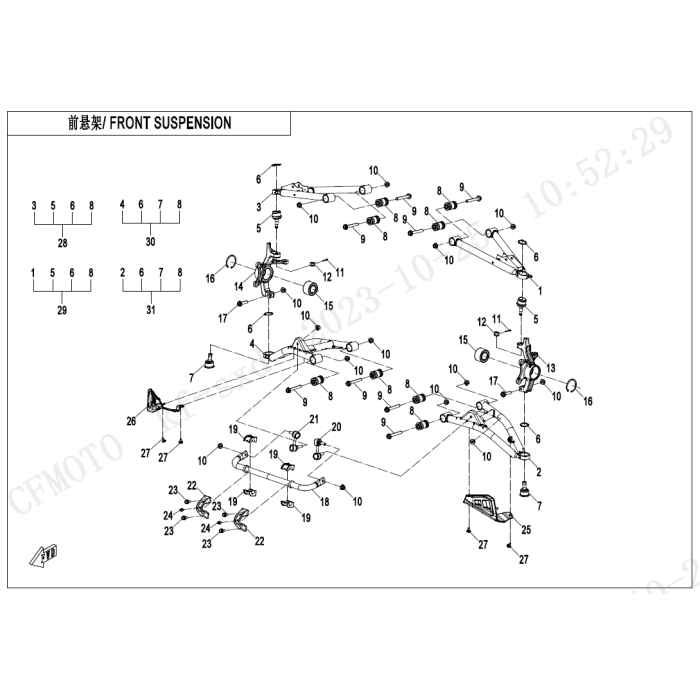

FRONT SUSPENSION

Be the first to review this product

Grouped product items
Product Name	Qty
1 FRONT LH UPPER SWING ARM ASSY 9AWV-050110-8001-0BP00 $131.54	Inventory coming soon
2 FRONT LH LOWER SWING ARM ASSY 9AWV-050210-8001-0BP00 $140.94	Inventory coming soon
3 FRONT RH UPPER SWING ARM ASSY 9AWV-050310-8001-0BP00 $131.54	Inventory coming soon
4 FRONT RH LOWER SWING ARM ASSY 9AWV-050410-8001-0BP00 $140.94	Inventory coming soon
5 TOP BALL PIN 9010-050700-1000 $71.94	– +
6 RETAINER 34 30801-03405 Sold in quantities of 6 $1.54	– +
7 LOWER BALL PIN ASSY 9010-050800-20000 $68.90	– +
8 DAMPING SLEEVE ASSY 9DQV-050900-3000 $13.57	– +
9 BOLT 30006-102070110 Sold in quantities of 6 $4.52	Inventory coming soon
10 LOCK NUT M10X1.25 30204-102810 Sold in quantities of 6 $1.54	Inventory coming soon
11 COTTER PIN 30903-0252010 Sold in quantities of 6 $1.54	– +
12 CASTLE NUT M10X1.25 9010-100002 Sold in quantities of 6 $4.52	– +
13 LH STEERING KNUCKLE 9AWV-050701-8000 $164.43	– +
14 RH STEERING KNUCKLE 9AWV-050801-8000 $164.43	– +
15 BEARING, HUB 9GQ0-050710 $58.97	– +
16 RETAINER 55 30800-05505 Sold in quantities of 6 $2.99	– +
17 BOLT, M10X1.25X45 30006-102045810 Sold in quantities of 6 $4.52	– +
18 FRONT SWAY BAR ASSY MAUD SPIRIT BLACK 9AWV-050610-8001-0BP00 $113.05	– +
19 RUBBER SUPPORT 9GQ0-060003 $9.07	– +
20 BALL PIN, LH 9010-060700-20000 $71.24	– +
21 BALL PIN, RH 9010-060800-20000 $71.24	– +
22 FRONT SWAY BAR PRESS COVER 9AWV-050620-8000 $20.55	– +
23 BOLT, M8X1.25X16 30006-080016810 Sold in quantities of 6 $1.54	– +
24 GREASE FITTING M6 3121401 $2.99	– +
25 LH FRONT SUSPENSION GUARD 9AWV-044041-8000 $28.26	– +
26 RH FRONT SUSPENSION GUARD 9AWV-044042-8000 $28.26	– +
27 INNER HEX BOLT M6x14 5BWV-040001-5000 Sold in quantities of 6 $1.54	– +
28 FRONT RH UPPER SWING ARM ASSY MAUD SPIRIT BLACK 9AWV-050300-8001-0BP00 $179.85	– +
29 FRONT LH UPPER SWING ARM ASSY MAUD SPIRIT BLACK 9AWV-050100-8001-0BP00 $179.85	– +
30 FRONT RH LOWER SWING ARM ASSY MAUD SPIRIT BLACK 9AWV-050400-8001-0BP00 $230.50	– +
31 FRONT LH LOWER SWING ARM ASSY MAUD SPIRIT BLACK 9AWV-050200-8001-0BP00 $230.50	– +
