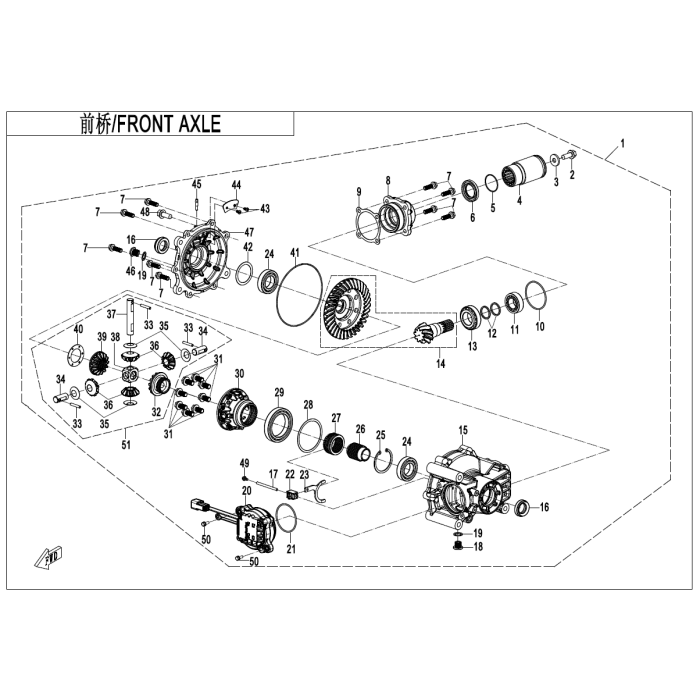

FRONT AXLE

Be the first to review this product
Grouped product items
Product Name Qty
1 FRONT GEAR CASE ASSY Q890-310000-30000
$1,532.99
–
+
2 BOLT, M10X1.25X20 0GR0-062203 Sold in quantities of 6
$4.52
–
+
3 WASHER 10 X 27.5 X 4 0GR0-062204 Sold in quantities of 6
$2.99
–
+
4 DRIVE SLEEVE, ENGINE 9CR6-300201-10000
$47.27
–
+
5 O-RING 25X2 0800-062205 Sold in quantities of 2
$4.52
–
+
6 OIL SEAL 35X50X7 0800-062204
$18.10
–
+
7 BOLT M8x28 0JYA-062104 Sold in quantities of 6
$2.99
–
+
8 BEARING SEAT, FRONT AXLE Q830-311002-00001
$51.40
–
+
9 SHIM 0.20 Q830-310023-00100 Sold in quantities of 6
$4.52
–
+
9 SHIM 0.30 Q830-310023-00200 Sold in quantities of 6
$4.52
–
+
10 O'RING 55 x 2.5 Q830-310006-10000
$7.60
–
+
11 BEARING 25X47X17 33005 30409-02500
$40.91
–
+
12 SHIM 32x25.4x2.10 Q830-311003-00100 Sold in quantities of 6
$2.99
–
+
12 SHIM 32x25.4x2.20 Q830-311003-00200 Sold in quantities of 6
$2.99
Inventory coming soon
12 SHIM 32x25.4x2.30 Q830-311003-00300 Sold in quantities of 6
$2.99
–
+
12 SHIM 32x25.4x2.40 Q830-311003-00400 Sold in quantities of 6
$2.99
–
+
12 SHIM 32x25.4x2.42 Q830-311003-00500 Sold in quantities of 6
$2.99
Inventory coming soon
12 SHIM 32x25.4x2.44 Q830-311003-00600 Sold in quantities of 6
$2.99
–
+
12 SHIM 32x25.4x2.46 Q830-311003-00700 Sold in quantities of 6
$2.99
Inventory coming soon
12 SHIM 32x25.4x2.48 Q830-311003-00800 Sold in quantities of 6
$2.99
–
+
12 SHIM 32x25.4x2.50 Q830-311003-00900 Sold in quantities of 6
$2.99
–
+
12 SHIM 32x25.4x2.60 Q830-311003-01000 Sold in quantities of 6
$2.99
–
+
12 SHIM 32x25.4x2.70 Q830-311003-01100 Sold in quantities of 6
$2.99
–
+
12 SHIM 32x25.4x2.80 Q830-311003-01200 Sold in quantities of 6
$2.99
–
+
12 SHIM 32x25.4x2.90 Q830-311003-01300 Sold in quantities of 6
$2.99
–
+
12 SHIM 32x25.4x3.00 Q830-311003-01400 Sold in quantities of 6
$2.99
–
+
13 BEARING 30×55×17 32006 30409-03000
$36.18
–
+
14 BEVEL GEAR, FRONT GEAR CASE Q890-3130A0
$278.62
Inventory coming soon
15 FRONT GEAR CASE BODY Q890-310001-00001
$123.32
–
+
16 OIL SEAL 24X38X8 0180-311001
$6.06
–
+
17 PIN , SHAFT Q830-310003
$18.35
–
+
18 MAGNETIC DRAIN BOLT M14X1.25X12 0180-332100 Sold in quantities of 6
$9.05
–
+
19 WASHER 14 0180-011006 Sold in quantities of 6
$2.99
–
+
20 ELECTRICAL FRONT GEAR CASE MOTOR 9AWV-152900-8000
$314.18
–
+
21 O'RING 67.5 X 2 Q830-310012-10000
$6.06
–
+
22 BLOCK ASSY. Q890-310010
$58.06
–
+
23 SHIFT FORK Q890-310003
$9.05
–
+
24 BEARING 6006 30x55x13 30400-03001
$27.24
–
+
25 RETAINER 55 30800-05505 Sold in quantities of 6
$2.99
–
+
26 DRIVE CLUTCH COVER Q830-310014
$51.38
–
+
27 SPLINE BUSHING Q830-310013
$34.25
–
+
28 SHIM 79.5x68x0.10 Q830-310015-00100 Sold in quantities of 6
$4.52
–
+
28 SHIM 79.5x68x0.20 Q830-310015-00200 Sold in quantities of 6
$4.52
–
+
28 SHIM 79.5x68x0.30 Q830-310015-00300 Sold in quantities of 6
$4.52
–
+
28 SHIM 79.5x68x0.40 Q830-310015-00400 Sold in quantities of 6
$4.52
–
+
28 SHIM 79.5x68x0.50 Q830-310015-00500 Sold in quantities of 6
$4.52
–
+
28 SHIM 79.5x68x0.60 Q830-310015-00600 Sold in quantities of 6
$4.52
–
+
29 BEARING 61911 (55×80×13) 30400-05500
$58.97
–
+
30 DIFFERENTIAL HOUSING Q890-313002
$132.25
Inventory coming soon
31 BOLT M10X1.25X22 0181-313100-0010 Sold in quantities of 6
$2.99
Inventory coming soon
32 GEAR CCV SHAFT Q830-313004
$82.22
–
+
33 STRAIGHT PIN 5×30 30906-0503000
$1.54
–
+
34 PLANET GEAR SHAFT, SHORT Q820-333005
$10.59
–
+
35 FRICTION-REDCUTION WASHER 0181-313011 Sold in quantities of 2
$2.99
–
+
36 MIDDLE GEAR, FRONT DIFFERENTIAL 0180-313003-00004
$41.50
–
+
37 PLANET GEAR AXLE Q820-333006
$19.64
–
+
38 CROSS BUSHING Q820-333008
$43.48
–
+
39 DRIVEN GEAR, FRONT DIFFERENTIAL 0180-313006-00001
$63.72
–
+
40 GEAR WASHER Q800-313005-00100
$4.52
–
+
40 GEAR WASHER Q800-313005-00200
$4.52
–
+
41 O-RING 141X2.4 0180-310005 Sold in quantities of 2
$2.99
–
+
42 SHIM 54.5x43x0.10 Q830-310009-00100 Sold in quantities of 6
$2.99
–
+
42 SHIM 54.5x43x0.20 Q830-310009-00200 Sold in quantities of 6
$2.99
–
+
42 SHIM 54.5x43x0.30 Q830-310009-00300 Sold in quantities of 6
$2.99
–
+
42 SHIM 54.5x43x0.40 Q830-310009-00400 Sold in quantities of 6
$2.99
–
+
42 SHIM 54.5x43x0.50 Q830-310009-00500 Sold in quantities of 6
$2.99
–
+
42 SHIM 54.5x43x1.00 Q830-310009-00600 Sold in quantities of 6
$2.99
–
+
43 CROSS SCREW GB818 M4X8 30105-040008410 Sold in quantities of 6
$4.52
–
+
44 OIL BAFFLE Q820-330007-10000
$2.99
–
+
45 JOINT, BREATHER PIPE 0180-311004-0020
$2.99
–
+
46 BOLT M14x1.25x12 0180-021008-00001 Sold in quantities of 2
$4.52
–
+
47 FRONT GEAR CASE COVER Q890-310002
$67.83
–
+
48 BOLT, M10X1.25X25 0180-330004-0010 Sold in quantities of 6
$2.99
–
+
49 SCREW M8×10 30130-080010810 Sold in quantities of 6
$1.54
–
+
50 BOLT M6x18 0010-023008-00001 Sold in quantities of 6
$1.54
–
+
51 DIFFERENTIAL ASSY Q830-3130A0
$153.42
–
+
