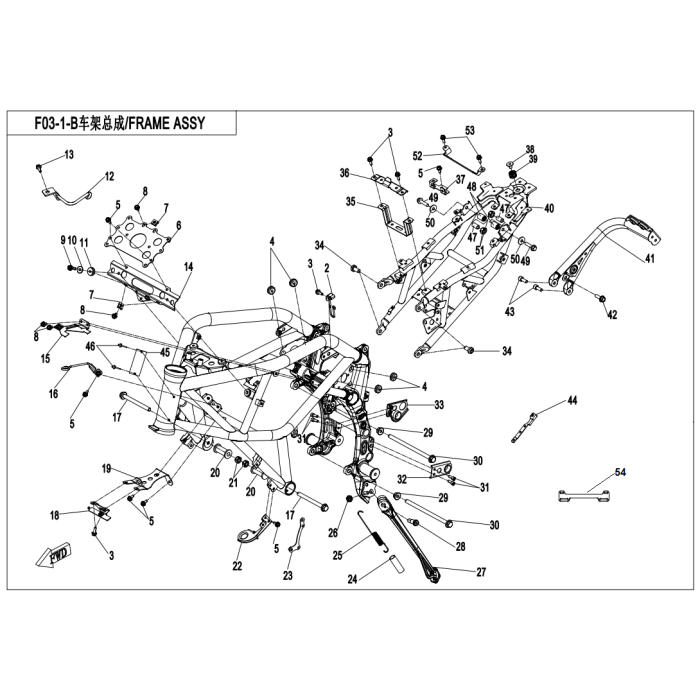

FRAME

Grouped product items
Product Name Qty
2 WIRE CLIP, REAR BRAKE FLUID HOSE 6GU#-030110-6000
$9.05
+
3 BOLT M6x16 30006-060016870
$1.54
+
4 RUBBER COLLAR 0180-015003 Sold in quantities of 6
$1.54
+
5 BOLT GB5789 M6X10 30006-060010810 Sold in quantities of 6
$1.54
+
6 BRACKET, ECU 6GU#-030020-6000
$22.71
Inventory coming soon
7 CLAMP, NUT M6 8030-040800-00001 Sold in quantities of 6
$1.54
+
8 BOLT M6x12 30006-060012870 Sold in quantities of 6
$1.54
+
9 BOLT M6x20 30006-060020870 Sold in quantities of 6
$1.54
+
10 LIMIT BRACKET 6GU#-030150-6001
$2.99
Inventory coming soon
11 RUBBER CUSHION,HEADLIGHT 9010-160101 Sold in quantities of 6
$3.67
+
12 BRACKET, CLUTCH CABLE 6GU#-030130-6000
$12.13
Inventory coming soon
13 BOLT, M5X0.8X12 30006-050012810 Sold in quantities of 6
$1.54
+
14 BRACKET, AIR FILTER 6GU#-030050-6000
$37.83
Inventory coming soon
15 BRACKET, ROLL-OVER VALVE 6GU#-030006-6000
$7.60
Inventory coming soon
16 LIMIT BRACKET 6GUV-030140-6002
$15.11
Inventory coming soon
17 BOLT, M10X1.25X110 30006-102110110 Sold in quantities of 6
$4.52
+
18 BRACKET, FRONT BRAKE FLUID HOSE 6GU#-030060-6000
$9.05
Inventory coming soon
19 BRACKET, ABS 6GU#-030040-6000
$15.11
Inventory coming soon
20 BUSHING, ENGINE A000-000201
$13.57
Inventory coming soon
21 NUT M10X1.25 30203-102110 Sold in quantities of 6
$1.54
+
22 BRACKET, RADIATOR 6GU#-030090-6000
$19.64
Inventory coming soon
23 BRACKER, REFLECTOR 6GUV-030001-6200
$7.60
+
24 SPRING, SIDE STAND A000-030210
$19.64
+
25 SPRING COLLAR, SIDE STAND A000-030004
$4.52
+
26 NUT M10x1.25 30208-102810 Sold in quantities of 6
$1.54
Inventory coming soon
27 SIDE BRACKET 6GU#-030005-6000
$139.89
Inventory coming soon
28 BOLT, SIDE BRACKET 6GU#-030008-6000
$7.60
Inventory coming soon
29 LOCK NUT M10X1.25 30204-102810 Sold in quantities of 6
$1.54
Inventory coming soon
30 ENGINE MOUNTING SHAFT 6GU#-030002-6000
$15.11
Inventory coming soon
31 INNER HEX SCREW M6X1X16 30102-060016810 Sold in quantities of 6
$1.54
+
32 LH BRACKET, MUFFLER 6GU#-030070-6000
$21.18
Inventory coming soon
33 RH BRACKET, MUFFLER 6GU#-030080-6000
$34.25
Inventory coming soon
34 MOUNTING BOLT, VICE FRAME 6GU#-030007-6000
$2.99
Inventory coming soon
35 BRACKET, FUEL TANK 6GU#-030010-6000
$12.13
Inventory coming soon
36 LIMIT BRACKET, SEAT 6GU#-030001-6000
$12.13
Inventory coming soon
37 BRACKET, ROLL-OVER SENSOR 6GU#-030120-6000
$12.13
Inventory coming soon
38 T-TYPE BUSHING ASSY 6KM0-120010
$6.06
+
39 RUBBER, LICENSE PLATE BRACKET (FR) 5020-031001 Sold in quantities of 6
$3.67
+
40 SUB FRAME ASSY 6GUV-032000-7000-0BP00
$599.84
Inventory coming soon
41 BRACKET, REAR FENDER 6GU#-030200-6000
$120.85
Inventory coming soon
42 BOLT, M8X1.25X25 30006-080025810 Sold in quantities of 6
$1.54
+
43 SCREW M8x20 30102-080020870
$1.54
+
44 BRACKET, FENDER GUARD 6GU#-030160-6000
$16.65
Inventory coming soon
46 SINGLE RIVET 4×8 30902-0401320 Sold in quantities of 6
$1.54
+
47 FRONT SPACER, REAR SEAT 6WWV-130201-5000
$18.10
+
48 FRONT RUBBER SLEEVE, REAR SEAT 6WWV-130202-5000
$2.99
+
49 BOLT, M8X1.25X35 30006-080035810 Sold in quantities of 6
$1.54
+
50 BIG WASHER 30305-080112 Sold in quantities of 6
$1.54
+
51 NUT M8 30204-080810 Sold in quantities of 6
$1.54
+
52 LOCK BRACKET, FRONT SEAT 6GUV-030010-7000
$19.64
+
53 INNER HEX SCREW M6x12 6KM#-040702-8000 Sold in quantities of 6
$2.99
+
54 BRACKET, REAR LICENSE 6FIV-031004-6600
$18.35
Inventory coming soon
