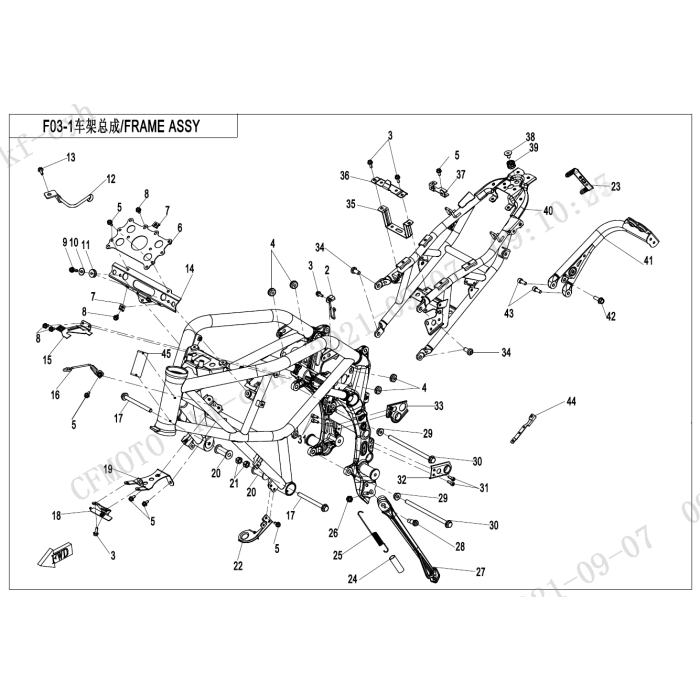

FRAME

Grouped product items
Product Name Qty
1 MAIN FRAME 6GU#-031000-6001-0BP00
$1,146.95
Inventory coming soon
2 WIRE CLIP, REAR BRAKE FLUID HOSE 6GU#-030110-6000
$10.79
Inventory coming soon
3 BOLT M6x16 30006-060016870
$4.07
+
4 RUBBER COLLAR 0180-015003 Sold in quantities of 6
$7.74
+
5 BOLT GB5789 M6X10 30006-060010810 Sold in quantities of 6
$4.07
+
6 BRACKET, ECU 6GU#-030020-6000
$20.24
Inventory coming soon
7 CLAMP, NUT M6 8030-040800-00001 Sold in quantities of 6
$4.20
+
8 BOLT M6x12 30006-060012870 Sold in quantities of 6
$4.07
+
9 BOLT M6x20 30006-060020870 Sold in quantities of 6
$4.07
+
10 LIMIT BRACKET 6GU#-030150-6001
$5.40
Inventory coming soon
11 RUBBER CUSHION,HEADLIGHT 9010-160101 Sold in quantities of 6
$4.07
+
12 BRACKET, CLUTCH CABLE 6GU#-030130-6000
$14.39
Inventory coming soon
13 BOLT, M5X0.8X12 30006-050012810 Sold in quantities of 6
$8.35
+
14 BRACKET, AIR FILTER 6GU#-030050-6000
$26.98
Inventory coming soon
15 BRACKET, ROLL-OVER VALVE 6GU#-030006-6000
$9.00
Inventory coming soon
16 LIMIT BRACKET 6GUV-030140-6002
$17.98
Inventory coming soon
17 BOLT, M10X1.25X110 30006-102110110 Sold in quantities of 6
$8.35
+
18 BRACKET, FRONT BRAKE FLUID HOSE 6GU#-030060-6000
$10.79
Inventory coming soon
19 BRACKET, ABS 6GU#-030040-6000
$17.98
Inventory coming soon
20 BUSHING, ENGINE A000-000201
$16.19
Inventory coming soon
21 NUT M10X1.25 30203-102110 Sold in quantities of 6
$4.20
+
22 BRACKET, RADIATOR 6GU#-030090-6000
$17.54
Inventory coming soon
23 BRACKER, REFLECTOR 6GUV-030001-6200
$9.00
Inventory coming soon
24 SPRING, SIDE STAND A000-030210
$15.46
Inventory coming soon
25 SPRING COLLAR, SIDE STAND A000-030004
$5.40
Inventory coming soon
26 NUT M10x1.25 30208-102810 Sold in quantities of 6
$3.86
Inventory coming soon
27 SIDE BRACKET 6GU#-030005-6000
$132.19
Inventory coming soon
28 BOLT, SIDE BRACKET 6GU#-030008-6000
$9.00
Inventory coming soon
29 LOCK NUT M10X1.25 30204-102810 Sold in quantities of 6
$5.71
+
30 ENGINE MOUNTING SHAFT 6GU#-030002-6000
$17.98
Inventory coming soon
31 INNER HEX SCREW M6X1.25X30 30102-060016810 Sold in quantities of 6
$4.20
+
32 LH BRACKET, MUFFLER 6GU#-030070-6000
$18.88
Inventory coming soon
33 RH BRACKET, MUFFLER 6GU#-030080-6000
$38.85
Inventory coming soon
34 MOUNTING BOLT, VICE FRAME 6GU#-030007-6000
$5.40
Inventory coming soon
35 BRACKET, FUEL TANK 6GU#-030010-6000
$14.39
Inventory coming soon
36 LIMIT BRACKET, SEAT 6GU#-030001-6000
$14.39
Inventory coming soon
37 BRACKET, ROLL-OVER SENSOR 6GU#-030120-6000
$14.39
Inventory coming soon
38 T-TYPE BUSHING ASSY 6KM0-120010
$10.79
Inventory coming soon
39 RUBBER, LICENSE PLATE BRACKET (FR) 5020-031001 Sold in quantities of 6
$4.07
+
40 SUB FRAME ASSY 6GUV-032000-7000-0BP00
$551.10
Inventory coming soon
41 BRACKET, REAR FENDER 6GU#-030200-6000
$114.21
Inventory coming soon
42 BOLT, M8X1.25X25 30006-080025810 Sold in quantities of 6
$4.20
Inventory coming soon
43 SCREW M8x20 30102-080020870
$3.86
+
44 BRACKET, FENDER GUARD 6GU#-030160-6000
$19.79
Inventory coming soon
45 VEHICLE PLATE 6GUV-190011-7400-10
$10.79
Inventory coming soon
