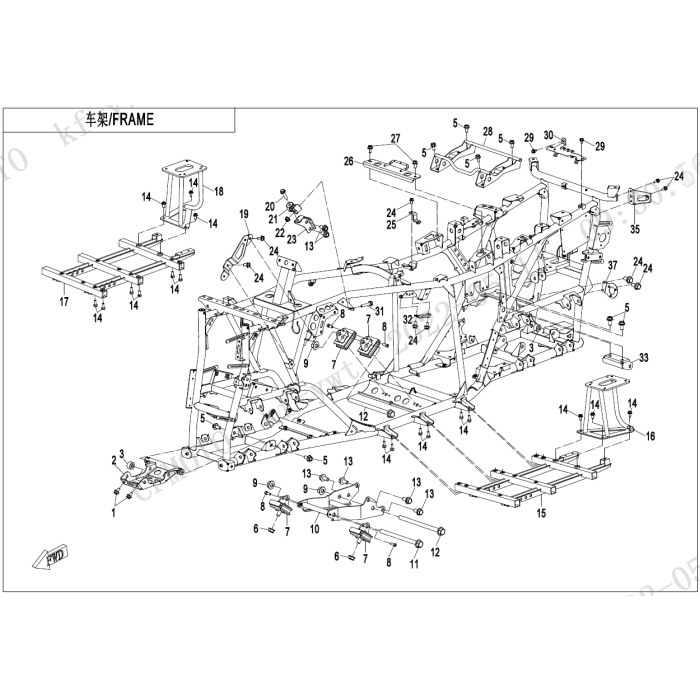

FRAME

Grouped product items
Product Name Qty
1 BOLT, M8X1.25X14 (BLACK) 30006-080014810 Sold in quantities of 6
$4.07
+
2 BRACKET, FRONT GEAR CASE 9DS#-030100-6001
$60.27
Inventory coming soon
3 BUSHING, FRONT AXLE 9AWA-030002
$11.19
Inventory coming soon
4 FRAME 9CSV-031000-A000-01
$1,076.83
Inventory coming soon
5 BOLT, M10X1.25X20 (BLACK) 30006-102020810 Sold in quantities of 6
$5.71
+
6 LOCK NUT M10X1.25 30204-102810 Sold in quantities of 6
$5.71
+
7 DAMPING BLOCK, ENGINE 9DQV-000300-3000
$48.56
Inventory coming soon
8 INNER HEX SCREW M6X1.25X30 30102-060016810 Sold in quantities of 6
$4.20
+
9 NUT M12X1.25 30204-122810 Sold in quantities of 6
$4.20
+
10 FRONT BRACKET COMP,ENGINE 9CR6-001100-20000
$56.44
Inventory coming soon
11 BOLT M12x1.25x170 30006-122170810 Sold in quantities of 6
$18.61
Inventory coming soon
12 BOLT, M12X1.25X180 30006-122180810 Sold in quantities of 6
$20.48
Inventory coming soon
13 BOLT, M10X1.5X20 30006-103020810 Sold in quantities of 6
$5.51
+
14 BOLT, M8X1.25X20 (BLACK) 30006-080020810 Sold in quantities of 6
$8.56
+
15 BRACKET, LH FOOTREST 9DS#-030300-6001
$159.03
Inventory coming soon
16 BRACKET, LH PEDAL 9CS#-030500-6400
$110.65
Inventory coming soon
17 BRACKET, RH FOOTREST 9CS#-030400-6401
$159.03
+
18 BRACKET, RH PEDAL 9CS#-030600-6400
$98.57
+
19 BRACKET, EPS CONTROLLER 9DS#-030070-6000
$26.65
Inventory coming soon
20 BOLT, M8X1.25X35 30006-080035810 Sold in quantities of 6
$4.07
+
21 UPPER MOUNT JOINT, ENGINE 7020-000160
$23.46
+
22 NUT M8 30204-080810 Sold in quantities of 6
$4.20
+
23 UPPER BRACKET, ENGINE 9DS#-030040-6001
$25.33
Inventory coming soon
24 BOLT M6x12 30006-060012870 Sold in quantities of 6
$4.07
+
25 BRACKET, AIR FILTER 9DSV-030020-A000
$22.94
Inventory coming soon
26 BRACKET, FRONT SEAT 9DS#-030020-6000
$46.65
+
27 BOLT, M8X1.25X16 30006-080016810 Sold in quantities of 6
$4.20
+
28 BRACKET, REAR SEAT 9CS#-030100-6400
$168.32
+
29 BOLT GB5789 M6X10 30006-060010810 Sold in quantities of 6
$4.07
+
30 LOCKING PLATE 4, WIRE CONNECTOR 9DSV-030081-6K00
$17.98
Inventory coming soon
31 BOLT, M8X1.25X40 30006-080040810 Sold in quantities of 6
$5.51
+
32 PRESSING PLATE III, WIRE CONNNECTOR 9DS#-030091-6000
$23.10
Inventory coming soon
33 SUSPENSION BRACKET ASSY, REAR GEAR CASE 9CRB-030010
$22.66
Inventory coming soon
34 RH BRACKET, REAR TRUNK 9DS#-030504-6000
$18.61
Inventory coming soon
35 LH BRACKET, REAR TRUNK 9DS#-030503-6000
$18.61
Inventory coming soon
36 WASHER 6 30305-060112 Sold in quantities of 6
$4.20
+
37 TRAILER POWER BRACKET 9DSV-030010-A000
$14.39
Inventory coming soon
