Back to parts catalog

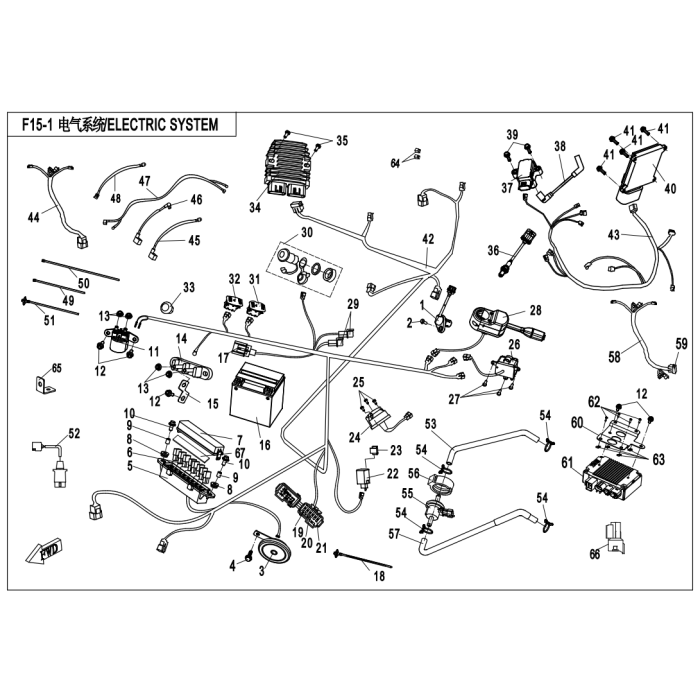

Electric system

Grouped product items
Product Name Qty
1 Speed sensor 0GR0-011020
$91.46
–
+
2 Bolt, m6x1.0x16 0010-090005-0010 Sold in quantities of 6
$9.24
–
+
3 Electric horn 6050-150500
$37.55
–
+
4 Bolt, m8x1.25x14 (black) 30006-080014810 Sold in quantities of 6
$9.24
–
+
5 Relay box 7020-040411
$30.83
–
+
6 Auxiliary relay 30a 9010-150350
$17.98
–
+
7 Cover, relay box 7020-040412-10000
$25.69
–
+
8 Rubber collar 0180-015003 Sold in quantities of 6
$9.24
–
+
9 Bushing 6090-040303 Sold in quantities of 6
$9.24
–
+
10 Bolt m6x16 30006-060016870
$1.54
–
+
11 Starter relay 5270-150500
$51.38
–
+
12 Bolt m6x12 30006-060012870 Sold in quantities of 6
$9.24
–
+
13 Nut m6 30204-060810 Sold in quantities of 6
$9.24
–
+
14 Terminal, cable 7030-151611
$15.42
Inventory coming soon
15 Ground connector 7030-151612
$2.99
Inventory coming soon
16 Battery 32ah 31023004
$260.35
–
+
17 Fuse 30a 7020-150111
$17.98
Inventory coming soon
18 Tie band 7030-150005 Sold in quantities of 6
$17.94
Inventory coming soon
19 Fuse 5a 8080-151301 Sold in quantities of 2
$7.34
Inventory coming soon
20 Fuse 10a 806A-151302 Sold in quantities of 2
$29.36
–
+
21 Fuse 15a 806A-151305 Sold in quantities of 2
$7.34
–
+
22 Flasher 4020-150340
$28.26
–
+
23 Cushion washer, flasher 8010-150002 Sold in quantities of 6
$9.24
–
+
24 Power socket, trailer ( waterproof) 7020-150800-1000
$56.52
–
+
25 Tapping screw m5x30 30105-050030410 Sold in quantities of 6
$9.24
Inventory coming soon
26 2wd/4wd switch assy 7030-160700-10002
$75.02
–
+
27 Tapping screw st4.8×16 30110-480160010 Sold in quantities of 6
$9.24
–
+
28 Switch, combination 7030-160800
$145.93
–
+
29 Diode, start 6090-150500
$11.01
–
+
30 Power socket comp (waterproof ) 7020-150500-1000
$48.30
–
+
31 Overriding switch 7030-151400
$39.53
Inventory coming soon
32 Warning switch 7030-151600
$43.48
–
+
33 Button, clock without wire 7030-170300
$51.38
–
+
34 Regulator (eps) 0800-177000-10000
$263.77
–
+
35 Bolt m6x30 30006-060030810 Sold in quantities of 6
$9.24
Inventory coming soon
36 Oxygen sensor / lambda sensor 018B-176000
$191.59
–
+
37 Ignition coil 018B-178000
$81.19
–
+
38 High-tension cable 0GRB-178000-10000
$47.43
Inventory coming soon
39 Screw m6x25 30006-060025810 Sold in quantities of 6
$9.24
–
+
40 Ecu 0GRB-174000
$518.47
Inventory coming soon
41 Screw m5x16 30105-050016410 Sold in quantities of 6
$9.24
Inventory coming soon
44 Auxiliary cable, tail light 7030-150300-10000
$104.82
Inventory coming soon
45 Positive wire, battery 7030-150510-10000
$47.27
Inventory coming soon
46 Negative wire, battery 7030-150610-10000
$47.27
Inventory coming soon
47 Cable, starter motor 7030-150520
$194.53
Inventory coming soon
48 Cable, starter relay 7030-150530
$41.50
Inventory coming soon
49 Mounting ties 9010-150004 Sold in quantities of 6
$22.02
Inventory coming soon
50 Mounting ties 5x250 8010-150003 Sold in quantities of 6
$9.24
–
+
51 Mounting ties 801F-100101 Sold in quantities of 6
$44.04
–
+
53 Air outlet pipe, idel valve 5UR0-000002
$38.54
Inventory coming soon
54 Clamp a12 30601-112010 Sold in quantities of 6
$9.24
Inventory coming soon
55 Control valve, canister 018B-172000
$123.32
–
+
56 Idel valve rubber cap 901F-000005
$11.01
Inventory coming soon
57 Air inlet pipe, idle speed 5UR0-000001
$39.53
Inventory coming soon
58 Eps control cable 7030-150400
$121.27
Inventory coming soon
59 Fuse 40a 9CR6-103501
$17.98
–
+
60 Support, eps controller 7030-106001
$23.12
Inventory coming soon
61 Eps controller 5UR0-150800
$523.80
Inventory coming soon
62 Self-tapping screw 30110-481130010
$1.51
–
+
63 Clamps st4.2 8010-000002 Sold in quantities of 6
$17.94
–
+
64 Plug, pda 905B-150103
$7.34
Inventory coming soon
65 Bracket,fuse box 7020-038002
$7.34
Inventory coming soon
66 Connector, headlight is always on 5UR0-150001
$20.55
Inventory coming soon
67 Rubber mat, relay box cover 7020-040414
$11.01
Inventory coming soon
