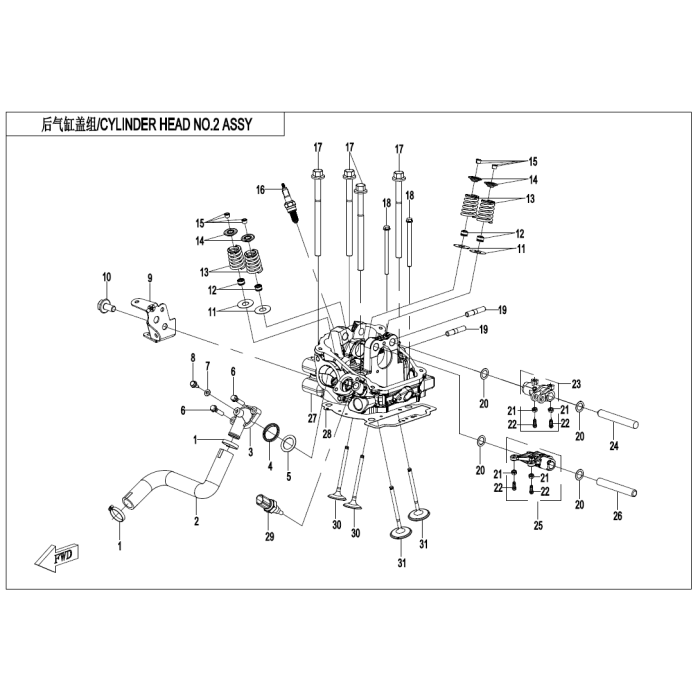

CYLINDER HEAD NO.2 ASSY.

Be the first to review this product

Grouped product items
Product Name	Qty
1 CLAMP D25 30603-125020 $2.99	– +
2 CONNECTING PIPE, FRONT REAR CYLINDER 0JWV-026001-3000 $22.71	– +
3 HOUSING, THERMOSTAT 0800-022013-10000 $15.42	– +
4 SEAL RING 0010-022802 Sold in quantities of 2 $2.99	– +
5 WASHER 20.5X30X0.8 0800-026002 $1.54	– +
6 BOLT, M6X1.0X25 0010-021017-0010 Sold in quantities of 6 $1.54	– +
7 WASHER 0800-022011-00001 $1.54	– +
8 SCREW 5.5×16 0JWV-022102-2000 $1.54	Inventory coming soon
9 PIPE BRACKET 0JWV-026002-3001 $18.35	– +
10 BOLT, M10X1.5X20 30006-103020810 Sold in quantities of 6 $2.99	– +
11 LOWER SEAT, VALVE SPRING 0JYV-022008-4000 $2.99	Inventory coming soon
12 OIL SEAL, VALVE 0JYV-022300-4000 $4.52	– +
13 VALVE SPRING 0JYV-022006-4002 $10.59	– +
14 UPPER SEAT, VALVE SPRING 0JYV-022007-4000 $7.60	Inventory coming soon
15 LOCK CLIP, VALVE 0JYV-022016-4000 $1.54	– +
16 SPARK PLUG 0JWD-170200-7000 $37.51	– +
17 BOLT, CYLINDER M10X1.5X146 0JY0-022003-00001 $7.60	– +
18 BOLT M6x85 0060-013021-00002 Sold in quantities of 6 $2.99	– +
19 STUD M8X1.25X42 0180-022003-00001 $2.99	– +
20 WASHER 12.3X18.5X0.5 0800-022002 $1.54	– +
21 ADJUST NUT 0800-022506 $1.54	– +
22 ADJUST SCREW 0800-022510 $9.05	– +
23 ROCKER ARM ASSY, EXHAUST 0800-022600-20000 $77.08	– +
24 SHAFT, ROCKER ARM 0800-022001 $23.12	– +
25 SWING ARM, INTAKE 0JYV-022500-4001 $81.19	– +
26 SWING ARM SHAFT, INTAKE 0JYV-022001-4000-10 $33.40	– +
27 REAR CYLINDER HEAD ASSY 0JWV-026100-3000 $518.41	– +
28 GASKET, CYLINDER HEAD 0800-022200-00002 $34.75	– +
29 WATER TEMPERATURE SENSOR 018B-022810 $31.86	– +
30 EXHAUST VALVE 0JYV-022005-4000 $41.88	– +
31 INTAKE VALVE 0JYV-022004-4000 $36.29	– +
