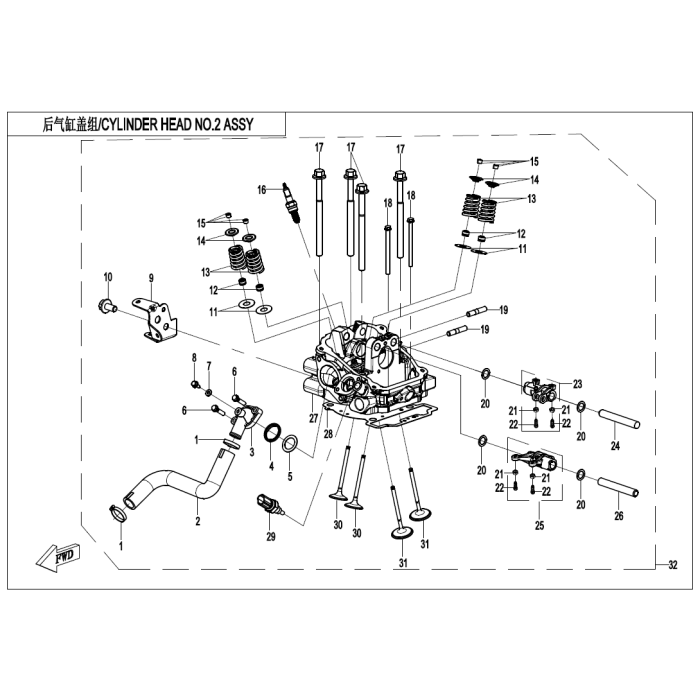

Cylinder head no.2 assy.

Be the first to review this product

Grouped product items
Product Name	Qty
1 Clamp d25 30603-125020 $2.99	– +
2 Connecting pipe, front rear cylinder 0JWV-026001-3000 $22.71	– +
3 Housing, thermostat 0800-022013-10000 $15.42	– +
4 Seal ring 0010-022802 Sold in quantities of 2 $5.98	– +
5 Washer 20.5x30x0.8 0800-026002 $1.54	– +
6 Bolt, m6x1.0x25 0010-021017-0010 Sold in quantities of 6 $9.24	– +
7 Washer 0800-022011-00001 $1.54	– +
8 Screw 5.5×16 0JWV-022102-2000 $1.54	– +
9 Pipe bracket 0JWV-026002-3001 $18.35	– +
10 Bolt, m10x1.5x20 30006-103020810 Sold in quantities of 6 $17.94	– +
11 Lower seat, valve spring 0JYV-022008-4000 $2.99	Inventory coming soon
12 Oil seal, valve 0JYV-022300-4000 $4.52	– +
13 Valve spring 0JYV-022006-4002 $10.59	– +
14 Upper seat, valve spring 0JYV-022007-4000 $7.60	Inventory coming soon
15 Lock clip, valve 0JYV-022016-4000 $1.54	Inventory coming soon
16 Spark plug 0JWD-170200-7000 $37.51	– +
17 Bolt, cylinder m10x1.5x146 0JY0-022003-00001 $7.60	– +
18 Bolt m6x85 0060-013021-00002 Sold in quantities of 6 $17.94	– +
19 Stud 0180-022003-00002 $1.54	– +
20 Washer 12.3x18.5x0.5 0800-022002 $1.54	– +
21 Adjust nut 0800-022506 $1.54	– +
22 Adjust screw 0800-022510 $9.05	– +
23 Rocker arm assy, exhaust 0800-022600-20000 $77.08	– +
24 Shaft, rocker arm 0800-022001 $23.12	– +
25 Swing arm, intake 0JYV-022500-4001 $81.19	– +
26 Swing arm shaft, intake 0JYV-022001-4000-10 $33.40	Inventory coming soon
27 Rear cylinder head assy 0JWV-026100-3000 $518.41	– +
28 Gasket, cylinder head 0800-022200-00002 $34.75	– +
29 Water temperature sensor 018B-022810 $31.86	– +
30 Exhaust valve 0JYV-022005-4000 $41.88	– +
31 Intake valve 0JYV-022004-4000 $36.29	– +
32 Cylinder 2 head assy SH-0JWF-0261A0 $522.74	– +
