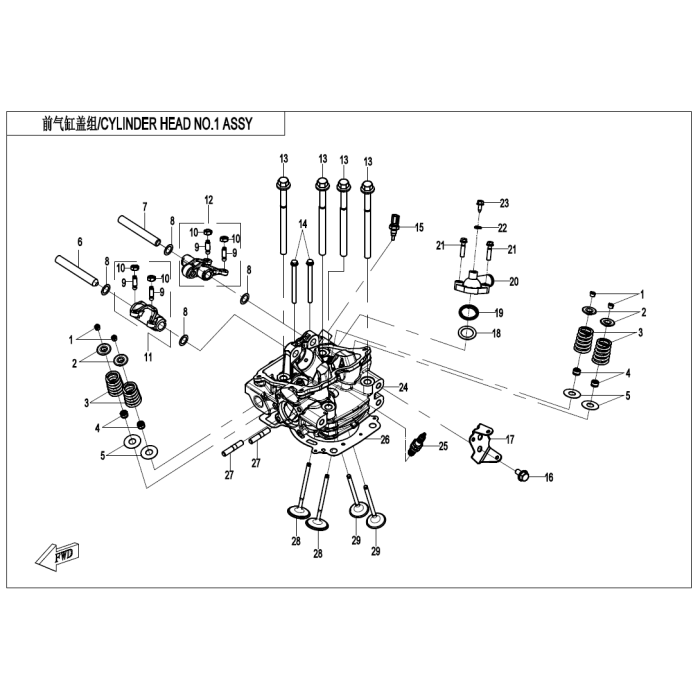

CYLINDER HEAD NO.1 ASSY

Be the first to review this product

Grouped product items
Product Name	Qty
1 LOCK CLIP, VALVE 0JYV-022016-4000 $1.54	– +
2 UPPER SEAT, VALVE SPRING 0JYV-022007-4000 $7.60	Inventory coming soon
3 VALVE SPRING 0JYV-022006-4002 $10.59	– +
4 OIL SEAL, VALVE 0JYV-022300-4000 $4.52	– +
5 LOWER SEAT, VALVE SPRING 0JYV-022008-4000 $2.99	Inventory coming soon
6 SHAFT, ROCKER ARM 0800-022001 $23.12	– +
7 SWING ARM SHAFT, INTAKE 0JYV-022001-4000-10 $33.40	– +
8 WASHER 12.3X18.5X0.5 0800-022002 $1.54	– +
9 ADJUST SCREW 0800-022510 $9.05	– +
10 ADJUST NUT 0800-022506 $1.54	– +
11 ROCKER ARM ASSY, EXHAUST 0800-022600-20000 $77.08	– +
12 SWING ARM, INTAKE 0JYV-022500-4001 $81.19	– +
13 BOLT, CYLINDER 0800-022003-00001 $6.06	– +
14 BOLT, M6X1.0X80 0800-022009-00001 $1.54	– +
15 WATER TEMPERATURE SENSOR 018B-022810 $31.86	– +
16 BOLT, M10X1.5X20 30006-103020810 Sold in quantities of 6 $2.99	– +
17 PIPE BRACKET 0JWV-026002-3001 $18.35	– +
18 WASHER 20.5X30X0.8 0800-026002 $1.54	– +
19 SEAL RING 0010-022802 Sold in quantities of 2 $2.99	– +
20 HOUSING, THERMOSTAT 0800-022013-10000 $15.42	– +
21 BOLT, M6X1.0X25 0010-021017-0010 Sold in quantities of 6 $1.54	– +
22 WASHER 0800-022011-00001 $1.54	– +
23 SCREW ST5.5x16 30132-550160030 Sold in quantities of 6 $1.54	– +
24 FRONT CYLINDER HEAD ASSY 0JWV-022100-3000 $518.41	– +
25 SPARK PLUG 0JWD-170200-7000 $37.51	– +
26 GASKET, CYLINDER HEAD 0800-022200-00002 $34.75	– +
27 STUD M8X1.25X42 0180-022003-00001 $2.99	– +
28 EXHAUST VALVE 0JYV-022005-4000 $41.88	– +
29 INTAKE VALVE 0JYV-022004-4000 $36.29	– +
