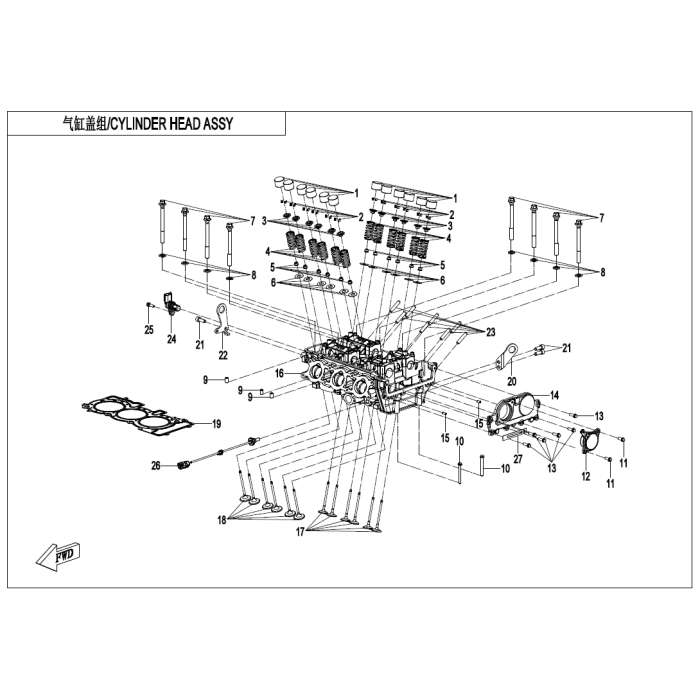

CYLINDER HEAD ASSY

Be the first to review this product

Grouped product items
Product Name	Qty
BOLT, M6X1.0X55 0010-021018-0010 Sold in quantities of 6 $1.54	– +
BOLT M6x18 0010-023008-00001 Sold in quantities of 6 $1.54	– +
BOLT, M6X1.0X16 0010-090005-0010 Sold in quantities of 6 $1.54	– +
STUD 0180-022003-00002 $1.54	– +
RETAINER, VALVE SPRING 0700-022003 $6.06	– +
COLLET,VALVE 0700-022004 $1.54	– +
TAPPET t=3.20 0700-022005-10100 $24.18	– +
TAPPET t=3.22 0700-022005-10200 $24.18	– +
TAPPET t=3.24 0700-022005-10300 $24.18	– +
TAPPET t=3.26 0700-022005-10400 $24.18	– +
TAPPET t=3.28 0700-022005-10500 $24.18	– +
TAPPET t=3.30 0700-022005-10600 $24.18	– +
TAPPET t=3.32 0700-022005-10700 $24.18	– +
TAPPET t=3.34 0700-022005-10800 $24.18	– +
TAPPET t=3.36 0700-022005-10900 $24.18	– +
TAPPET t=3.38 0700-022005-11000 $24.18	– +
TAPPET t=3.40 0700-022005-11100 $24.18	– +
TAPPET t=3.42 0700-022005-11200 $24.18	– +
TAPPET t=3.44 0700-022005-11300 $24.18	– +
TAPPET t=3.46 0700-022005-11400 $24.18	– +
TAPPET t=3.48 0700-022005-11500 $24.18	– +
TAPPET t=3.50 0700-022005-11600 $24.18	– +
TAPPET t=3.52 0700-022005-11700 $24.18	– +
TAPPET t=3.54 0700-022005-11800 $24.18	– +
TAPPET t=3.56 0700-022005-11900 $24.18	– +
TAPPET t=3.58 0700-022005-12000 $24.18	– +
TAPPET t=3.60 0700-022005-12100 $24.18	– +
TAPPET t=3.62 0700-022005-12200 $24.18	– +
TAPPET t=3.64 0700-022005-12300 $24.18	– +
TAPPET t=3.66 0700-022005-12400 $24.18	– +
TAPPET t=3.68 0700-022005-12500 $24.18	– +
TAPPET t=3.70 0700-022005-12600 $24.18	– +
TAPPET t=3.72 0700-022005-12700 $24.18	– +
TAPPET t=3.74 0700-022005-12800 $24.18	Inventory coming soon
TAPPET t=3.76 0700-022005-12900 $24.18	– +
TAPPET t=3.78 0700-022005-13000 $24.18	– +
TAPPET t=3.80 0700-022005-13100 $24.18	– +
TAPPET t=3.82 0700-022005-13200 $24.18	– +
TAPPET t=3.84 0700-022005-13300 $24.18	– +
TAPPET t=3.86 0700-022005-13400 $24.18	– +
TAPPET t=3.88 0700-022005-13500 $24.18	– +
TAPPET t=3.90 0700-022005-13600 $24.18	– +
TAPPET t=3.92 0700-022005-13700 $24.18	– +
TAPPET t=3.94 0700-022005-13800 $24.18	– +
TAPPET t=3.96 0700-022005-13900 $24.18	– +
TAPPET t=3.98 0700-022005-14000 $24.18	– +
TAPPET t=4.00 0700-022005-14100 $24.18	– +
TAPPET t=4.02 0700-022005-14200 $24.18	Inventory coming soon
TAPPET t=4.04 0700-022005-14300 $24.18	– +
TAPPET t=4.06 0700-022005-14400 $24.18	– +
TAPPET t=4.08 0700-022005-14500 $24.18	– +
TAPPET t=4.10 0700-022005-14600 $24.18	– +
TAPPET t=4.12 0700-022005-14700 $24.18	– +
TAPPET t=4.14 0700-022005-14800 $24.18	– +
TAPPET t=4.16 0700-022005-14900 $24.18	– +
TAPPET t=4.18 0700-022005-15000 $24.18	– +
TAPPET t=4.20 0700-022005-15100 $24.18	– +
TAPPET t=4.22 0700-022005-15200 $24.18	– +
TAPPET t=4.24 0700-022005-15300 $24.18	– +
TAPPET t=4.26 0700-022005-15400 $24.18	– +
TAPPET t=4.28 0700-022005-15500 $24.18	– +
OIL SEAL, VALVE STEM 0700-022400-1000 Sold in quantities of 2 $4.52	– +
DOWEL PIN 0DM0-022201-10000 $1.54	– +
BOLT M6x20 0JWV-011107-3000 Sold in quantities of 6 $1.54	– +
TIMING CHAMBER COVER 0NYV-022011-1000 $42.14	– +
INTAKE VALVE 0NYV-022012-1000 $33.40	– +
EXHAUST VALVE 0NYV-022013-1000 $42.35	– +
CYLINDER HEAD BOLT GASKET 0NYV-022016-3000 $4.52	– +
VALVE SPRING LOWER SEAT 0NYV-022017-1000 $3.67	– +
SPRING VALVE 0NYV-022018-1000 $6.06	– +
FRONT HOOK 0NYV-022038-1000 $2.99	– +
REAR HOOK 0NYV-022039-1000 $4.52	– +
CYLINDER HEAD GASKET ASSY 0NYV-022100-1001 $39.94	– +
CYLINDER HEAD 0NYV-022200-1002 $670.17	– +
ELECTROMAGNET ASSY 0NYV-025300-3000 $107.91	– +
COOLANT TEMP SENSOR 0NYV-170100-3000 $41.11	– +
CAMSHAFT POSITION SENSOR 0NYV-170600-1000 $68.86	– +
CYLINDER HEAD BOLT 0TYV-022008-1003 $6.05	– +
SCREW M8x20 30102-080020810 Sold in quantities of 6 $1.54	– +
NEEDLE PIN 5X11.8 30406-00500 Sold in quantities of 6 $1.54	– +
CLIP 6WWV-030080-8000 Sold in quantities of 6 $7.34	– +
