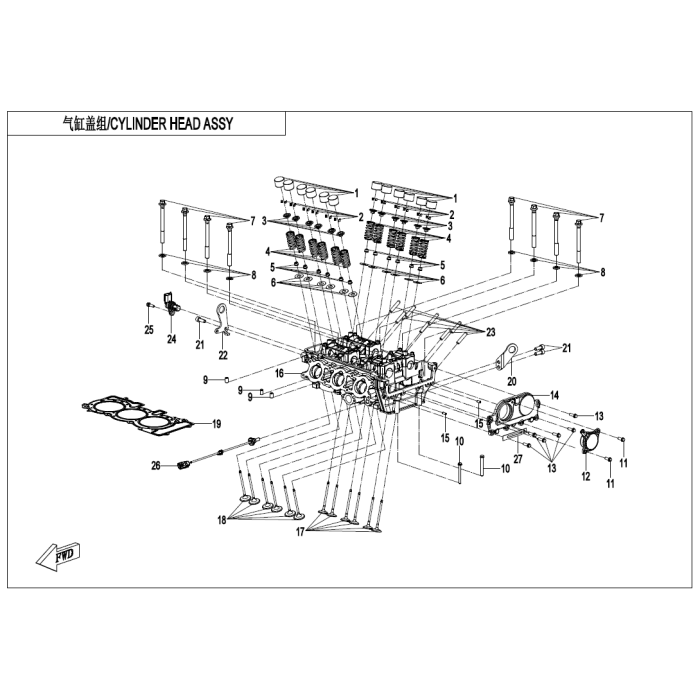

CYLINDER HEAD ASSY

Be the first to review this product

Grouped product items
Product Name	Qty
1 TAPPET t=3.20 0700-022005-10100 $36.29	– +
1 TAPPET t=3.22 0700-022005-10200 $36.29	– +
1 TAPPET t=3.24 0700-022005-10300 $36.29	– +
1 TAPPET t=3.26 0700-022005-10400 $36.29	– +
1 TAPPET t=3.28 0700-022005-10500 $36.29	– +
1 TAPPET t=3.30 0700-022005-10600 $36.29	– +
1 TAPPET t=3.32 0700-022005-10700 $36.29	– +
1 TAPPET t=3.34 0700-022005-10800 $36.29	– +
1 TAPPET t=3.36 0700-022005-10900 $36.29	– +
1 TAPPET t=3.38 0700-022005-11000 $36.29	– +
1 TAPPET t=3.40 0700-022005-11100 $36.29	– +
1 TAPPET t=3.42 0700-022005-11200 $36.29	– +
1 TAPPET t=3.44 0700-022005-11300 $36.29	– +
1 TAPPET t=3.46 0700-022005-11400 $36.29	– +
1 TAPPET t=3.48 0700-022005-11500 $36.29	– +
1 TAPPET t=3.50 0700-022005-11600 $36.29	– +
1 TAPPET t=3.52 0700-022005-11700 $36.29	– +
1 TAPPET t=3.54 0700-022005-11800 $36.29	– +
1 TAPPET t=3.56 0700-022005-11900 $36.29	– +
1 TAPPET t=3.58 0700-022005-12000 $36.29	– +
2 COLLET,VALVE 0700-022004 $1.54	– +
3 RETAINER, VALVE SPRING 0700-022003 $6.06	– +
4 SPRING VALVE 0NYV-022018-1000 $6.06	– +
5 OIL SEAL, VALVE STEM 0700-022400-1000 Sold in quantities of 2 $4.52	– +
6 VALVE SPRING LOWER SEAT 0NYV-022017-1000 $3.67	– +
7 CYLINDER HEAD BOLT 0TYV-022008-1003 $6.05	– +
8 CYLINDER HEAD BOLT GASKET 0NYV-022016-3000 $4.52	– +
9 DOWEL PIN 0DM0-022201-10000 $1.54	– +
10 BOLT, M6X1.0X55 0010-021018-0010 Sold in quantities of 6 $1.54	– +
11 BOLT, M6X1.0X16 0010-090005-0010 Sold in quantities of 6 $1.54	– +
12 ELECTROMAGNET ASSY 0NYV-025300-3000 $107.91	– +
13 BOLT M6x20 0010-023010-0010 Sold in quantities of 6 $1.54	– +
14 TIMING CHAMBER COVER 0NYV-022011-1000 $42.14	– +
15 NEEDLE PIN 5X11.8 30406-00500 Sold in quantities of 6 $1.54	– +
16 CYLINDER HEAD 0NYV-022200-1002 $670.17	– +
17 EXHAUST VALVE 0NYV-022013-1000 $42.35	– +
18 INTAKE VALVE 0NYV-022012-1000 $33.40	– +
19 CYLINDER HEAD GASKET ASSY 0NYV-022100-1001 $39.94	– +
20 FRONT HOOK 0NYV-022038-1000 $2.99	– +
21 SCREW M8x20 30102-080020810 Sold in quantities of 6 $1.54	– +
22 REAR HOOK 0NYV-022039-1000 $4.52	– +
23 STUD 0180-022003-00002 $1.54	– +
24 CAMSHAFT POSITION SENSOR 0NYV-170600-1000 $68.86	– +
25 BOLT M6x18 0010-023008-00001 Sold in quantities of 6 $1.54	– +
26 COOLANT TEMP SENSOR 0NYV-170100-3000 $41.11	– +
27 CLIP 6WWV-030080-8000 Sold in quantities of 6 $7.34	– +
