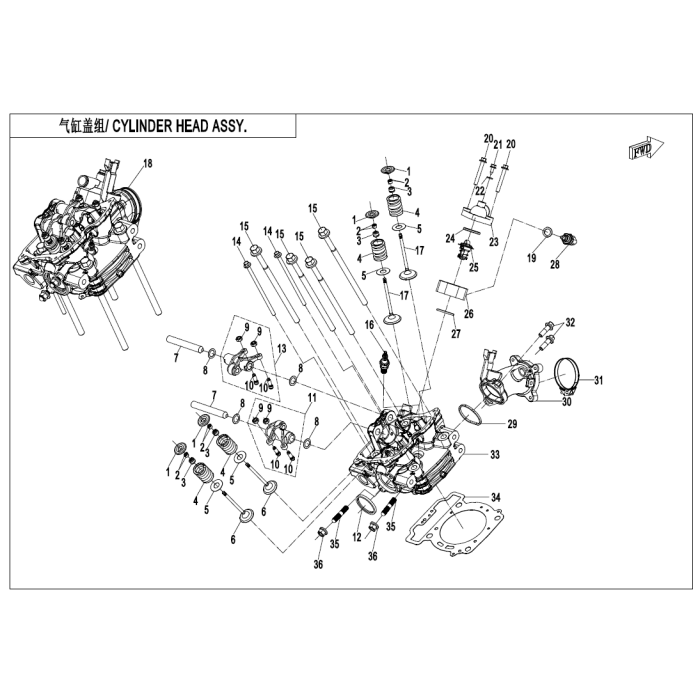

Cylinder head assy

Be the first to review this product

Grouped product items
Product Name	Qty
1 Upper seat, valve 0800-022007 $14.68	– +
2 Lock clip, valve 0800-022016 $14.68	– +
3 Seal ring, valve stem 0010-022500-10000 Sold in quantities of 2 $9.04	– +
4 Valve spring 0800-022006-10001 $18.35	– +
5 Lower seat, valve 0800-022008 $3.67	– +
6 Valve, exhaust 0800-022005 $35.57	– +
7 Shaft, rocker arm 0800-022001 $23.12	– +
8 Washer 12.3x18.5x0.5 0800-022002 $1.54	– +
9 Adjust nut 0800-022506 $1.54	– +
10 Adjust screw 0800-022510 $9.05	– +
11 Rocker arm assy, exhaust 0800-022600-20000 $77.08	– +
12 Bushing, exhaust pipe 0800-022300 $13.57	– +
13 Rocker arm assy, intake 0800-022500-20000 $52.41	– +
14 Bolt, m6x1.0x132 0GR0-022002-00001 $4.52	– +
15 Bolt, cylinder 0GR0-022001-10000 Sold in quantities of 6 $72.78	– +
16 Spark plug (dcpr8e) 0800-022800 $17.98	– +
17 Valve, intake 0800-022004 $30.83	– +
19 Washer 12.2×18×1.5 0800-022014 $2.99	– +
20 Bolt, m6x1.0x45 0180-013208-0010 Sold in quantities of 6 $9.24	– +
21 Screw 5.5×16 0JWV-022102-2000 $1.54	– +
22 Washer 5.3x11x15 0800-022011 $1.54	– +
23 Housing, thermostat 0GRB-022001 $28.26	– +
24 Seal ring 0010-022802 Sold in quantities of 2 $5.98	– +
25 Thermostat 0800-022700 $47.43	Inventory coming soon
26 Seat,thermostat 0GR0-022003 $28.26	– +
27 O-ring, 28x2.65 30502-028000N Sold in quantities of 2 $5.98	– +
28 Water temperature sensor 018B-022810 $31.86	– +
29 Seal ring, manifold 080V-025002-1000 $2.99	– +
30 Fuel injector seat 0GS0-022001 $131.54	Inventory coming soon
31 Clamp 57 01A0-110005 $4.52	– +
32 Bolt m8x25 0130-011114-00001 Sold in quantities of 2 $5.98	– +
33 Cylinder head assy 0GS0-022100-10002 $297.46	– +
34 Gasket, cylinder head 0800-022200-00002 $34.75	– +
35 Stud 0180-022003-00002 $1.54	– +
