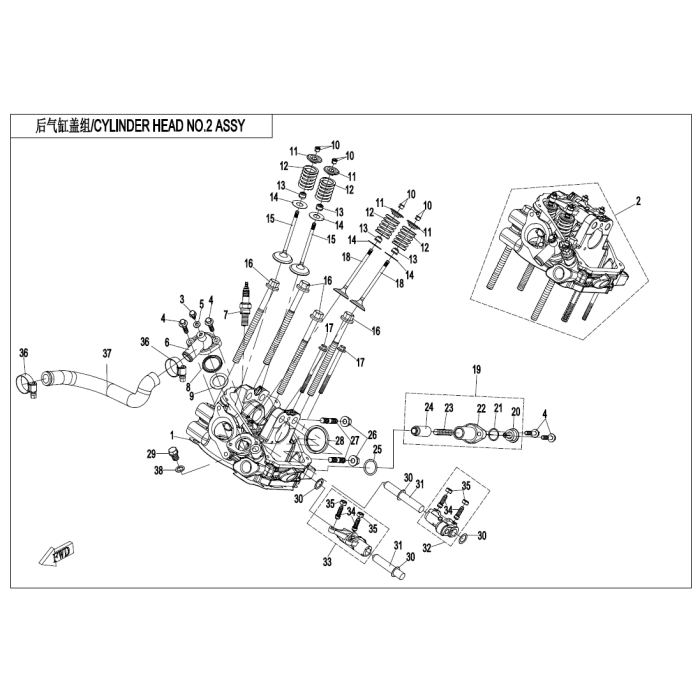

CYLINDER HEAD #2

Be the first to review this product

Grouped product items
Product Name
1 GASKET, CYLINDER HEAD 0800-022200-00002 $34.75
2 SECOND CYLINDER HEAD SUB ASSY 0JWA-026000-00002 $547.41
3 SCREW 5.5×16 0JWV-022102-2000 $1.54
4 BOLT, M6X1.0X25 0010-021017-0010 Sold in quantities of 6 $1.54
5 WASHER 5.3X11X15 0800-022011 $1.54
6 HOUSING, THERMOSTAT 0800-022013-10000 $15.42
7 SPARK PLUG (DCPR8E) 0800-022800 $17.98
8 SEAL RING 0010-022802 Sold in quantities of 2 $2.99
9 WASHER 20.5X30X0.8 0800-026002 $1.54
10 LOCK CLIP, VALVE 0800-022016 $14.68
11 UPPER SEAT, VALVE 0800-022007 $14.68
12 VALVE SPRING 0800-022006-10001 $18.35
13 SEAL RING, VALVE STEM 0010-022500-10000 Sold in quantities of 2 $4.52
14 LOWER SEAT, VALVE 0800-022008 $3.67
15 VALVE, INTAKE 0800-022004 $30.83
16 BOLT, CYLINDER 0800-022003-00001 $6.06
17 BOLT, M6X1.0X80 0800-022009-00001 $1.54
18 VALVE, EXHAUST 0800-022005 $35.57
19 TENSIONER 080V-022400-1200 $53.36
20 SCREW PLUG, TENSIONER 080V-022402-1200 $7.34
21 O-RING 080V-022407-1200 $4.52
22 CONNECTING PIPE, FRONT & REAR CYLINDER 0JYA-026001 $24.16
23 SPRING, CHAIN TENSIONER 080V-022405-1200 $2.99
24 PLUNGER, CHAIN TENSIONER 080V-022410-1200 $7.34
25 SEAL RING, TENSIONER 20.8×2.4 0800-022017 $1.54
26 JOINT NUT, EXHAUST PIPE 8010-020001 Sold in quantities of 6 $1.54
27 STUD M8X1.25X42 0180-022003-00001 $2.99
28 BUSHING, EXHAUST PIPE 0800-022300 $13.57
29 WATER TEMPERATURE SENSOR 018B-022810 $31.86
30 WASHER 12.3X18.5X0.5 0800-022002 $1.54
31 SHAFT, ROCKER ARM 0800-022001 $23.12
32 ROCKER ARM ASSY, EXHAUST 0800-022600-20000 $77.08
33 ROCKER ARM ASSY, INTAKE 0800-022500-20000 $52.41
34 ADJUST SCREW 0800-022510 $9.05
35 ADJUST NUT 0800-022506 $1.54
36 CLAMP D25 30603-125020 $2.99
