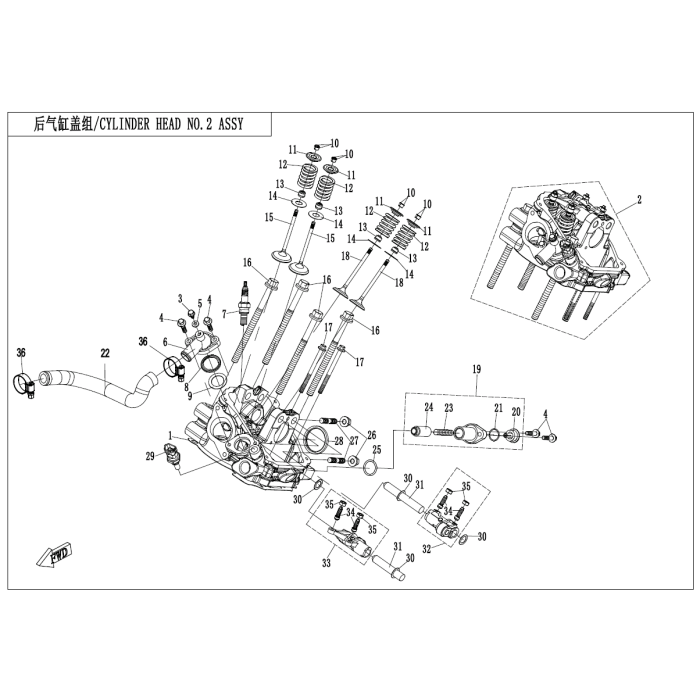

Cylinder head #2

Be the first to review this product

Grouped product items
Product Name	Qty
1 Gasket, cylinder head 0800-022200-00002 $34.75	– +
2 First cylinder head 0JWA-0260A0 $867.97	– +
3 Screw 5.5×16 0JWV-022102-2000 $1.54	– +
4 Bolt, m6x1.0x25 0010-021017-0010 Sold in quantities of 6 $9.24	– +
5 Washer 5.3x11x15 0800-022011 $1.54	– +
6 Thermostat cap 0JWV-026100-6000 $33.40	Inventory coming soon
7 Spark plug (dcpr8e) 0800-022800 $17.98	– +
8 Seal ring 0010-022802 Sold in quantities of 2 $5.98	– +
9 Washer 20.5x30x0.8 0800-026002 $1.54	– +
10 Lock clip, valve 0800-022016 $14.68	– +
11 Upper seat, valve 0800-022007 $14.68	– +
12 Valve spring 0800-022006-10001 $18.35	– +
13 Seal ring, valve stem 0010-022500-10000 Sold in quantities of 2 $9.04	– +
14 Lower seat, valve 0800-022008 $3.67	– +
15 Valve, intake 0800-022004 $30.83	– +
16 Bolt, cylinder 0800-022003-00001 $6.06	– +
17 Bolt, m6x1.0x80 0800-022009-00001 $1.54	– +
18 Valve, exhaust 0800-022005 $35.57	– +
19 Tensioner 080V-022400-1200 $53.36	– +
20 Screw plug, tensioner 080V-022402-1200 $7.34	– +
21 O-ring17×1.45 0800-022407 Sold in quantities of 2 $9.04	– +
22 Connecting pipe, front & rear cylinder 0JYA-026001 $24.16	– +
24 Plunger, chain tensioner 0800-022410 $18.35	– +
25 Seal ring, tensioner 20.8×2.4 0800-022017 $1.54	– +
26 Joint nut, exhaust pipe 8010-020001 Sold in quantities of 6 $9.24	Inventory coming soon
27 Stud 0180-022003-00002 $1.54	– +
28 Bushing, exhaust pipe 0800-022300 $13.57	– +
29 Water temperature sensor 018B-022810 $31.86	– +
30 Washer 12.3x18.5x0.5 0800-022002 $1.54	– +
31 Shaft, rocker arm 0800-022001 $23.12	– +
32 Rocker arm assy, exhaust 0800-022600-20000 $77.08	– +
33 Rocker arm assy, intake 0800-022500-20000 $52.41	– +
34 Adjust screw 0800-022510 $9.05	– +
35 Adjust nut 0800-022506 $1.54	– +
36 Clamp d25 30603-125020 $2.99	– +
