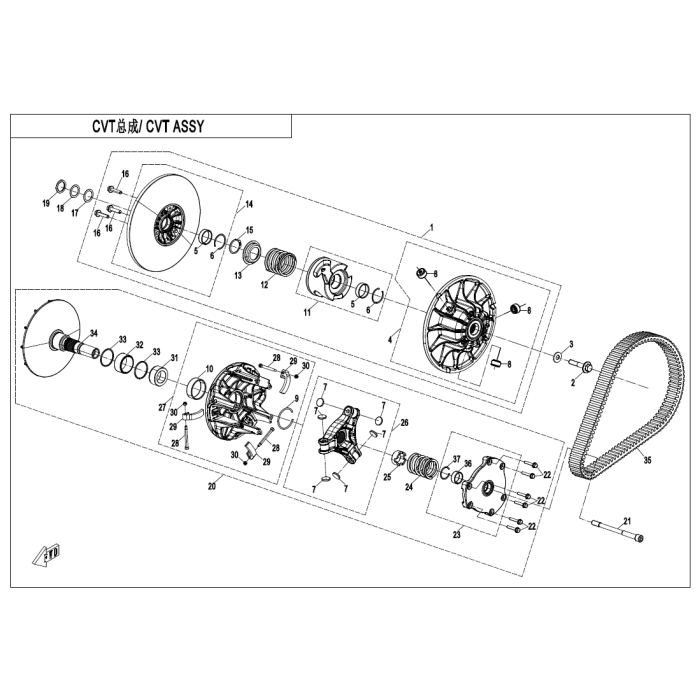

CVT ASSY VIN PRODUCED FROM 27/09/24

Be the first to review this product

Grouped product items
Product Name	Qty
1 DRIVEN PULLEY ASSY 0JWV-052000-3002 $517.43	– +
2 MAIN DRIVE SHAFT BOLT 0JWV-060001-3000 Sold in quantities of 2 $23.12	– +
3 DRIVEN PULLEY BOLT WASHER 12 0JWV-050004-3000 Sold in quantities of 3 $7.34	– +
4 DRIVEN FIXED PULLEY ASSY 0JWV-052100-3002 $320.31	– +
5 BEARING 0JWV-052202-3000 $43.80	– +
6 CIRCLIP 0JWV-052203-3000 $2.99	– +
7 THRUST DISC SLIDER 0JWV-051601-3000 $42.85	– +
8 DRIVEN FIXED PULLEY ROLLER 0JWV-052003-3001 $50.43	– +
9 CIRCLIP 0JWV-051103-3000 $2.99	– +
10 BEARING 0JWV-051102-3000 $87.52	– +
11 DRIVEN PULLEY CAM ASSY 0JWV-052300-3002 $130.82	– +
12 SPRING, DRIVEN PULLEY 0JWV-052001-3000 $37.09	– +
13 DRIVEN PULLEY SPRING SEAT 0JWV-052002-3000 $9.05	– +
14 DRIVEN SLIDER ASSY 0JWV-052200-3001 $136.27	– +
15 CIRCLIP FOR SHAFT 30801-03505 $2.99	– +
16 BOLT 30023-100045160 $9.05	– +
17 DRIVEN PULLEY WASHER 1(2.0MM) 0JWV-050002-3000 $4.52	– +
18 DRIVEN PULLEY WASHER 2(2.6MM) 0JWV-050003-3000 $4.52	– +
19 DRIVEN PULLEY WASHER 4(1.5MM) 0JWV-050005-3000 $4.52	– +
20 DRIVE PULLEY ASSY 0JYV-051000-5001 $592.52	– +
21 DRIVE PULLEY BOLT 0JWV-050001-3000 Sold in quantities of 2 $49.41	– +
22 BOLT, M6x35 30006-060035810 Sold in quantities of 6 $1.54	– +
23 DRIVE SLIDING PULLEY POSITION DISC ASSY 0JWV-051300-3000 $120.24	– +
24 SPRING, DRIVE PULLEY 0JYV-051002-5000 $28.55	– +
25 NUT, DRIVE PULLEY 0JWV-051001-3000 $27.24	– +
26 THRUST DISC ASSY 0JWV-051600-3001 $258.85	– +
27 DRIVE SLIDING PULLEY ASSY 0JYV-051100-5001 $287.02	Inventory coming soon
28 INNER HEX BOLT 0JWV-051105-3000 $12.13	– +
29 WEIGHT SLIDER ASSY 0JYV-051110-5000 $98.01	– +
30 NUT 30220-050810 $1.54	– +
31 DRIVE PULLEY BUSHING 0JWV-051006-3000 $46.25	– +
32 BEARING ASSY, DRIVE PULLEY 0JWV-051400-3000 $97.04	– +
33 DRIVE PULLEY BEARING WASHER 0JWV-051007-3000 $2.99	– +
34 DRIVE FIXED PULLEY ASSY 0JWV-051200-3000 $146.08	– +
35 CVT BELT 0JWV-055000-3000-M1 $398.91	Inventory coming soon
36 BEARING 0JWV-051302-3000 $43.80	– +
37 CIRCLIP 30805-03205 $2.99	– +
