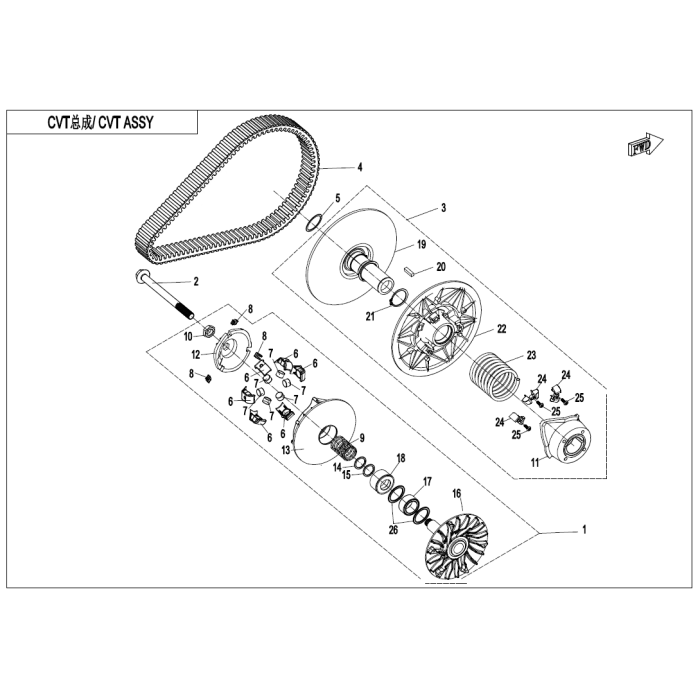

CLUTCH & CVT ASSY

Be the first to review this product

Grouped product items
Product Name	Qty
1 DRIVE PULLEY ASSY 0GS0-051000-00022 $893.56	– +
2 BOLT, DRIVE PULLEY 0JY0-050001-00001 $15.11	– +
3 DRIVEN PULLEY ASSY (CVTECH) 0GR0-052000 $461.09	– +
4 CVT BELT (BANDO) 0180-055000-0003 $298.13	– +
5 ADJUSTING WASHER 0GR0-050001-00002 Sold in quantities of 2 $1.54	– +
6 NYLON PROTECTOR,WEIGHT (CVTECH) 0GR0-051005 Sold in quantities of 6 $21.49	– +
7 WEIGHT (CVTECH 20G) 0GR0-051004-30000 Sold in quantities of 6 $45.46	– +
8 REPLACEMENT SHOE KIT FOR 0JYA-051004-10000 0982-7055 $48.73	– +
9 SPRING, DRIVE PULLEY 0JYA-051005 $87.52	– +
10 NUT, DRIVE PULLEY (CVTECH) 0JYA-051013-10001 $39.94	– +
11 CAM PLATE (CVTECH) 0GR0-052002 $192.33	– +
12 THRUST COLLAR (CVTECH) 0JYA-051006-10000 $550.83	– +
13 MOVING PLATE ASSY, DRIVE PULLEY (CVTECH) 0JYA-051100 $482.78	– +
14 STEEL WASHER (CVTECH) 0GR0-051011 $29.52	– +
15 NYLON WASHER 0GR0-051009-10000 $30.43	– +
16 DRIVE FIXED PULLEY ASSY 0GS0-051200-10000 $581.68	– +
17 BEARING ASSY, DRIVE PULLEY 0JYA-051300 $220.31	– +
18 SPRING SEAT (CVTECH) 0GR0-051001 $120.70	– +
19 DRIVEN FIXED PULLEY (CVTECH) 0GR0-052100 $536.57	– +
20 TAPER KEY (CVTECH) 0GR0-052003 $12.13	– +
21 CIRCLIP (CVTECH) 0GR0-052004 $29.52	– +
22 SLIDING FLANGE (CVTECH) 0GR0-052200 $441.34	– +
23 SPRING, DRIVEN PULLEY (CVTECH) 0GR0-052001 $198.55	– +
24 NYLON BLOCK (CVTECH) 0GR0-052005 Sold in quantities of 3 $14.48	– +
25 SCREW (CVTECH) 0GR0-052006 $12.13	– +
26 BEARING NYLON WASHER 0JYA-051016 $29.52	– +
