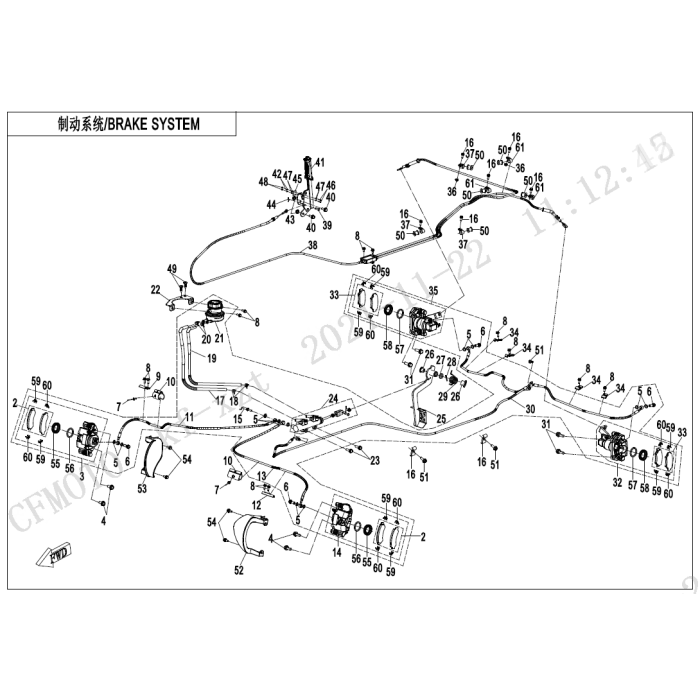

BRAKE SYSTEM

Grouped product items
Product Name Qty
1 HYDRAULIC BRAKE ASSY 5SYV-081000-6000
$1,183.22
Inventory coming soon
2 BRAKE PAD ASSY 9AWA-0811A0
$90.19
+
3 FRONT RH BRAKE CALIPER ASSY 9AWV-081200-4000
$248.57
+
4 BOLT, M10X1.25X25 30006-102025810 Sold in quantities of 6
$5.51
+
5 WASHER 10 80 0010-060010 Sold in quantities of 6
$5.71
+
6 BANJO BOLT (M10X1.0X21) 7020-081004 Sold in quantities of 6
$5.71
+
7 SINGLE RIVET 4×8 30902-0401320 Sold in quantities of 6
$4.20
+
8 BOLT M6x16 30006-060016870
$4.07
+
9 CLIP FRONT BRAKE FLUID PIPE, RH 5HY0-080004
$5.51
Inventory coming soon
10 PLASTIC CLASP 9AWA-080001
$11.19
Inventory coming soon
11 RH FRONT BRAKE FLUID HOSE 5HYV-081020-2500
$77.17
Inventory coming soon
12 CLIP FRONT BRAKE FLUID PIPE, LH 5HY0-080003
$5.51
Inventory coming soon
13 LH FRONT BRAKE FLUID HOSE 5HYV-081010-2500
$69.15
Inventory coming soon
14 FRONT LH BRAKE CALIPER ASSY 9AWV-081100-4000
$248.57
+
15 HYDRAULIC INDUCTION SWITCH 5HY0-080010-20000
$49.64
+
16 CLIP I, LH OIL HOSE M6×12 5BY0-080001
$13.02
Inventory coming soon
17 HOSE , FLUID RESERVOIR 5UWB-081002
$19.79
Inventory coming soon
18 PIPE CLIP, MASTER CYLINDER 7020-081002
$5.51
Inventory coming soon
19 HOSE 1 , FLUID RESERVOIR 5UWB-081001
$16.19
Inventory coming soon
20 CLAMP 9010-080405 Sold in quantities of 6
$5.51
+
21 RESERVOIR ASSY 5BW1-080150-20000
$92.63
Inventory coming soon
22 BRACKET, OIL CUP 5UWB-030110
$55.80
Inventory coming soon
23 BOLT, M8X1.25X25 30006-080025810 Sold in quantities of 6
$4.20
Inventory coming soon
24 MASTER CYLINDER 5SYV-081100-6000
$211.32
Inventory coming soon
25 BRAKE PEDAL ASSY 5HYV-082000-1201
$33.45
+
26 BUSHING 9060-105002 Sold in quantities of 2
$8.35
+
27 WASHER 12 30306-120112 Sold in quantities of 6
$4.07
+
28 COTTER PIN 3.2X22 30903-0322210 Sold in quantities of 6
$4.20
+
29 RETURN SPRING 9060-080003
$8.35
+
30 REAR BRAKE FLUID HOSE 5SYV-081030-6000
$244.81
Inventory coming soon
31 BOLT, M10X1.25X30 30006-102030810 Sold in quantities of 6
$5.71
+
32 REAR BRAKE CALIPER, LH 5HY0-081100
$556.97
Inventory coming soon
33 REAR BRAKE PAD ASSY 5HY0-0811A0
$71.67
+
34 CLIP, REAR BRAKE FLUID PIPE 5HY0-080002
$11.19
Inventory coming soon
35 REAR BRAKE CALIPER, RH 5HY0-081200
$556.97
+
36 NUT M6 30204-060810 Sold in quantities of 6
$4.20
+
37 CIRCLIP 9010-080104 Sold in quantities of 6
$5.51
+
38 PARKING CABLE 5SYV-083200-6000
$114.21
Inventory coming soon
39 PIN BOLT 6×20 30904-0602010 Sold in quantities of 6
$8.24
+
40 BOLT, M8X1.25X20 (BLACK) 30006-080020810 Sold in quantities of 6
$8.56
+
41 HAND BRAKE 5HY0-083100
$199.02
+
42 WASHER 2 30303-020900 Sold in quantities of 6
$4.07
Inventory coming soon
43 NUT M8 30204-080810 Sold in quantities of 6
$4.20
+
44 COTTER PIN M16×8 30903-0162010 Sold in quantities of 6
$4.07
+
45 MICRO SWITCH 7000-082210-20000
$39.09
Inventory coming soon
46 SCREW GB/T818 M2X0.5X16 30105-020016700 Sold in quantities of 6
$4.07
Inventory coming soon
47 WASHER 2 30306-020800 Sold in quantities of 6
$4.07
Inventory coming soon
48 NUT M2 30200-020500 Sold in quantities of 6
$4.07
Inventory coming soon
49 TAPPING SCREW ST4.2x13 30110-421130010 Sold in quantities of 6
$4.80
+
50 FIXING RUBBER SLEEVE 9AWA-080003
$5.51
Inventory coming soon
51 INNER HEX SCREW M6X1.25X30 30102-060016810 Sold in quantities of 6
$4.20
+
52 GUARD, FRONT LH BRAKE CALIPER 5BY0-080007
$13.02
+
53 GUARD, FRONT RH BRAKE CALIPER 5BY0-080008
$13.02
+
54 BOLT, M6X1.25X14 8010-000004 Sold in quantities of 6
$3.67
+
55 DUST SEAL, PISTON 5HYV-081100-1B00-20
$9.00
+
56 DUST SEAL, PISTON 5HYV-081100-1B00-21
$9.00
+
57 DUST SEAL, PISTON 5HYV-081300-1B00-21
$9.00
+
58 DUST SEAL, PISTON 5HYV-081300-1B00-20
$9.00
+
59 BRACKET 1 5HYV-081100-1B00-22
$8.09
+
60 BRACKET 2 5HYV-081100-1B00-23
$8.09
+
61 WIRE CLIP, OIL HOSE 5HYV-080410-1C00
$8.09
Inventory coming soon
