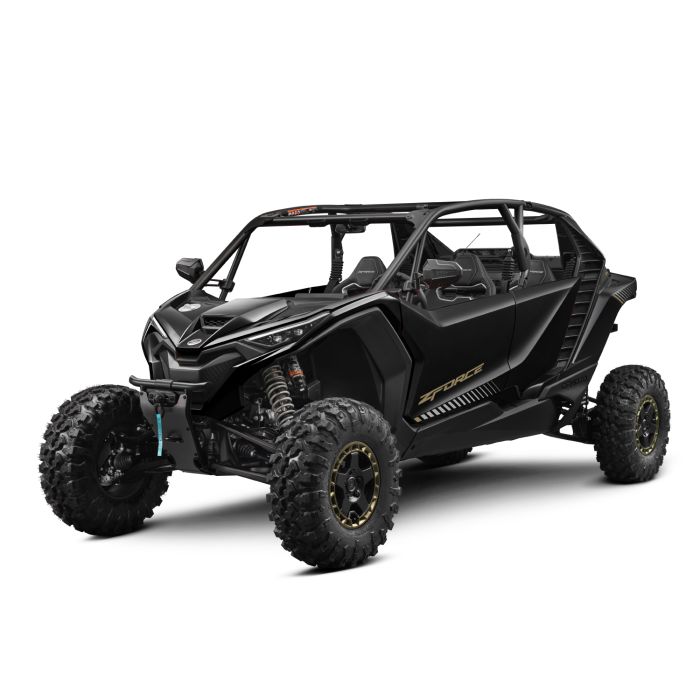

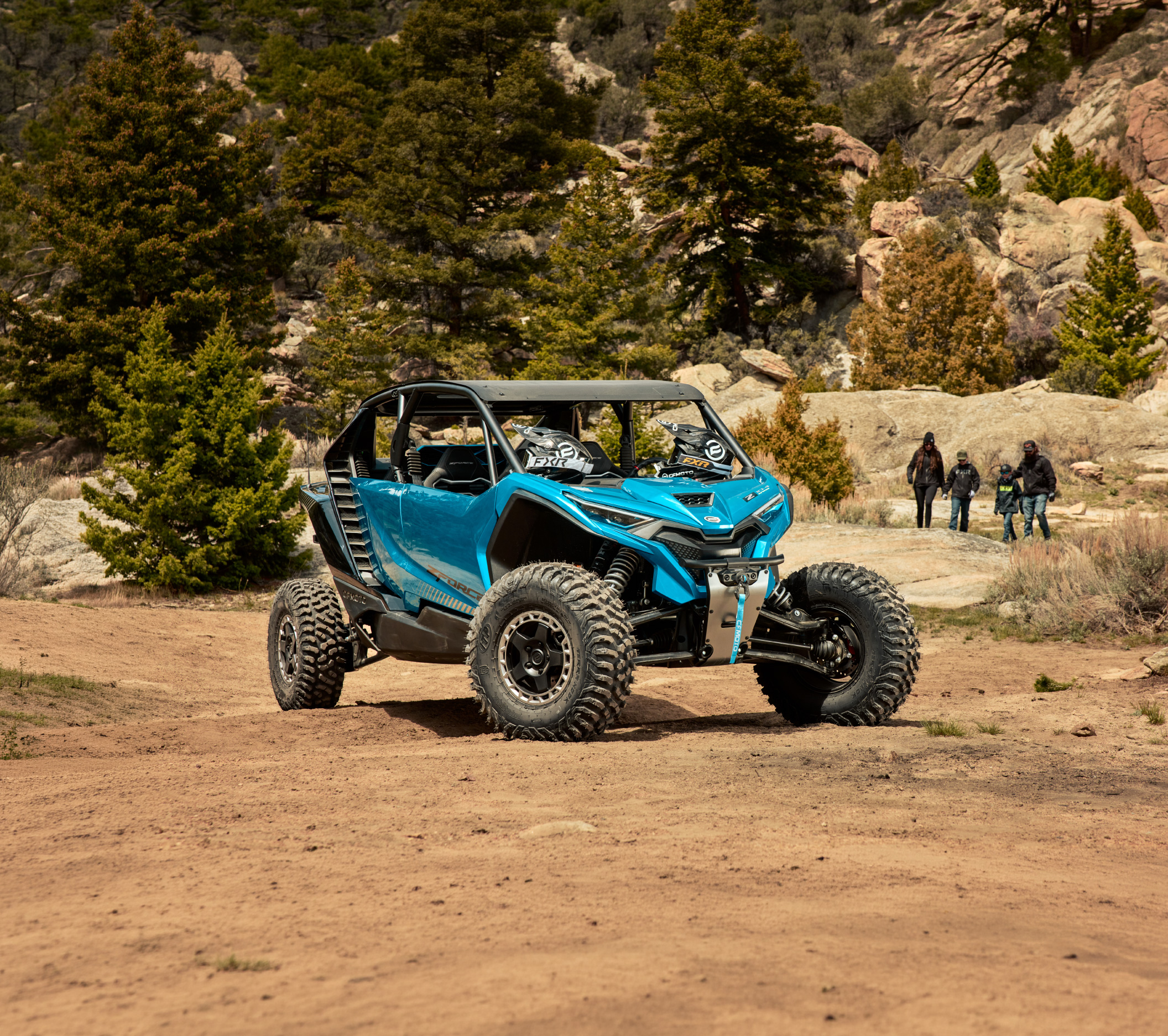

ZFORCE Z10-4
Step into the ZFORCE Z10-4 and experience the power of its all-new 154 hp turbocharged three-cylinder engine. Built to carry you and three passengers, it combines supercar-inspired technology—including the push-button start integrated into the steering wheel—with FOX® QSE shocks for an unmatched driving experience. With the roof included as standard, enjoy added versatility and greater freedom on every ride. The ZFORCE Z10-4 redefines the ultimate sport side-by-side.
*The price indicated does not include registration fees, taxes, the cost of accessories and their installation. Preparation fee may vary per dealer. Photos for illustrative purposes only, accessories not included. Specifications can change.

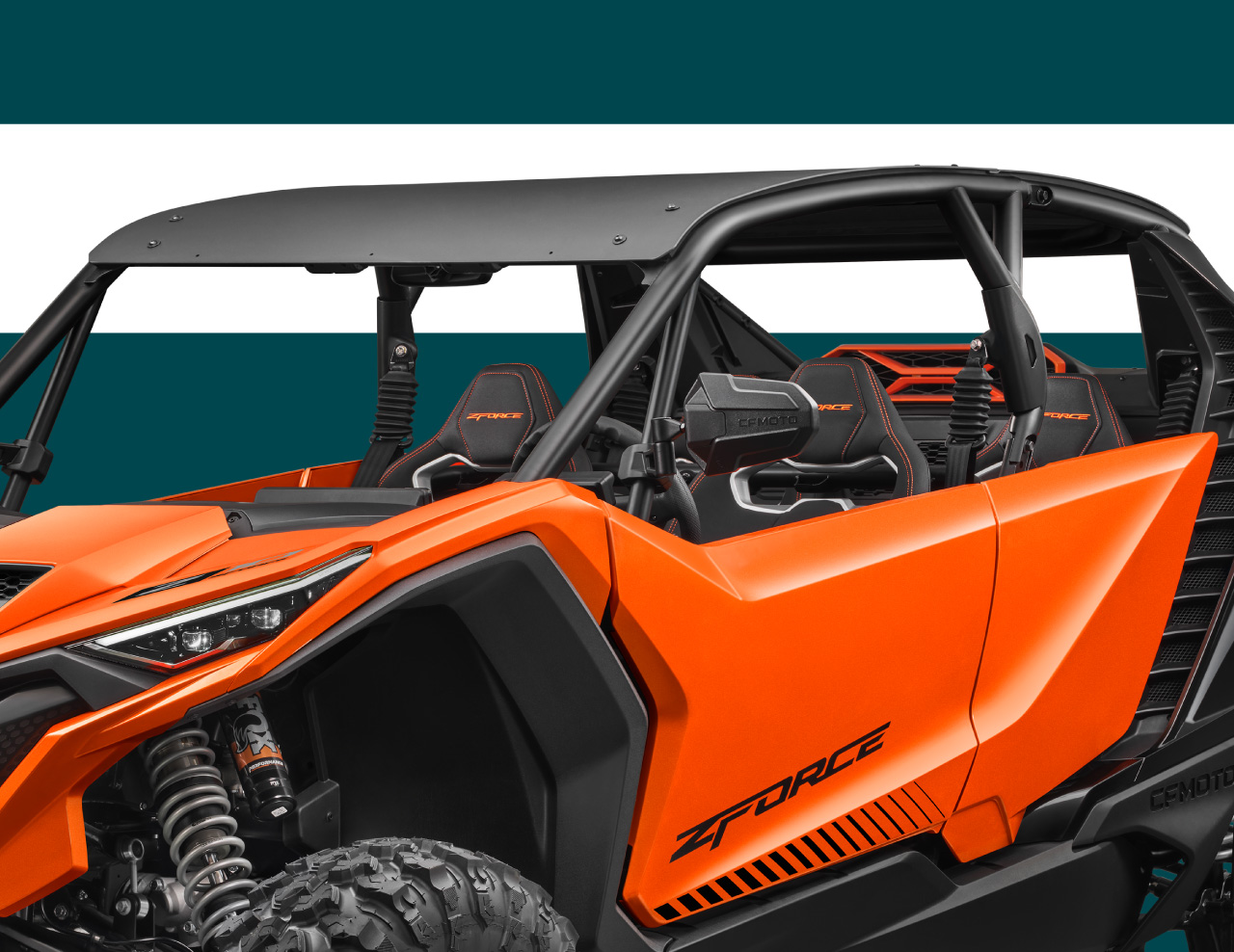

Roof included

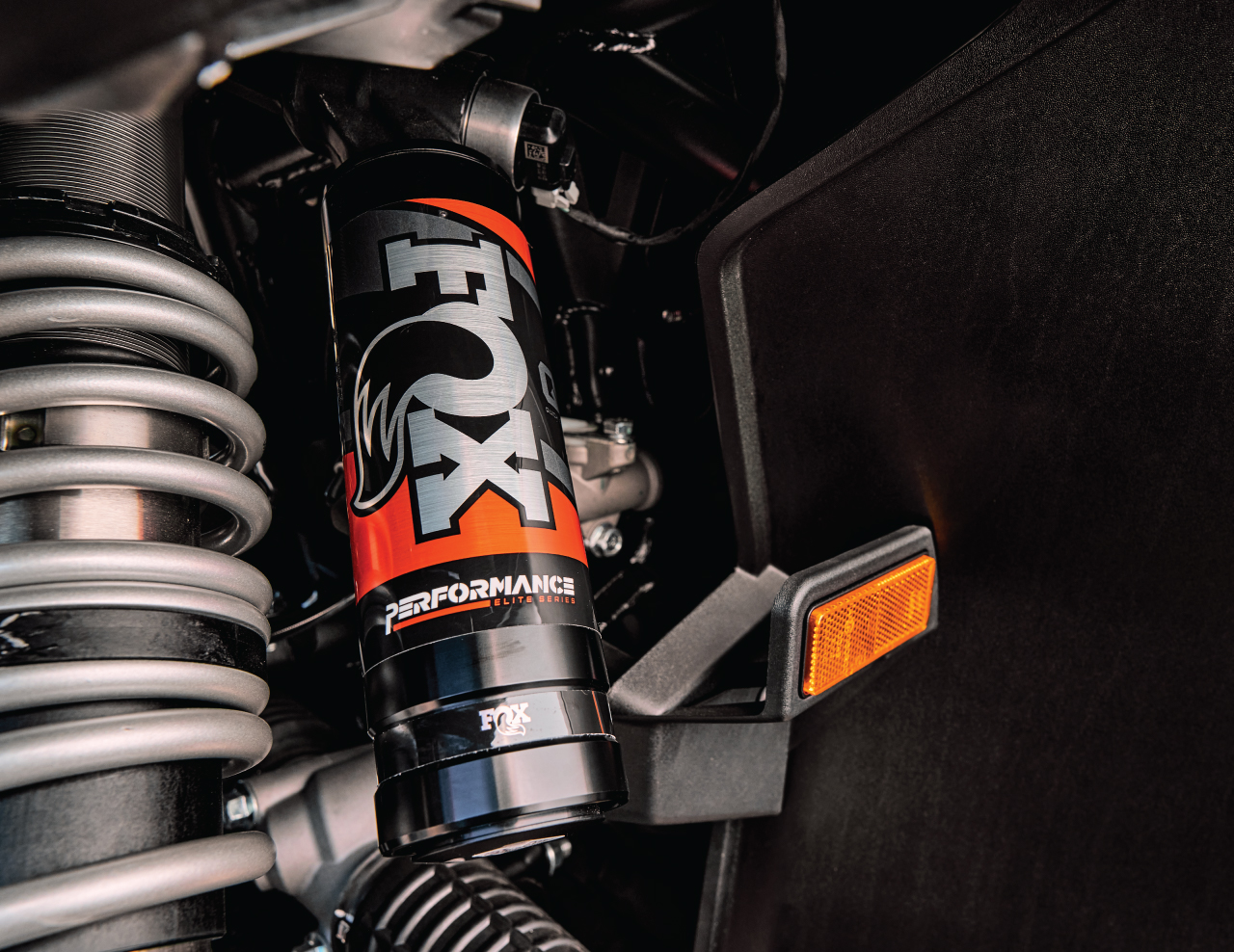

FOX® QSE SHOCKS

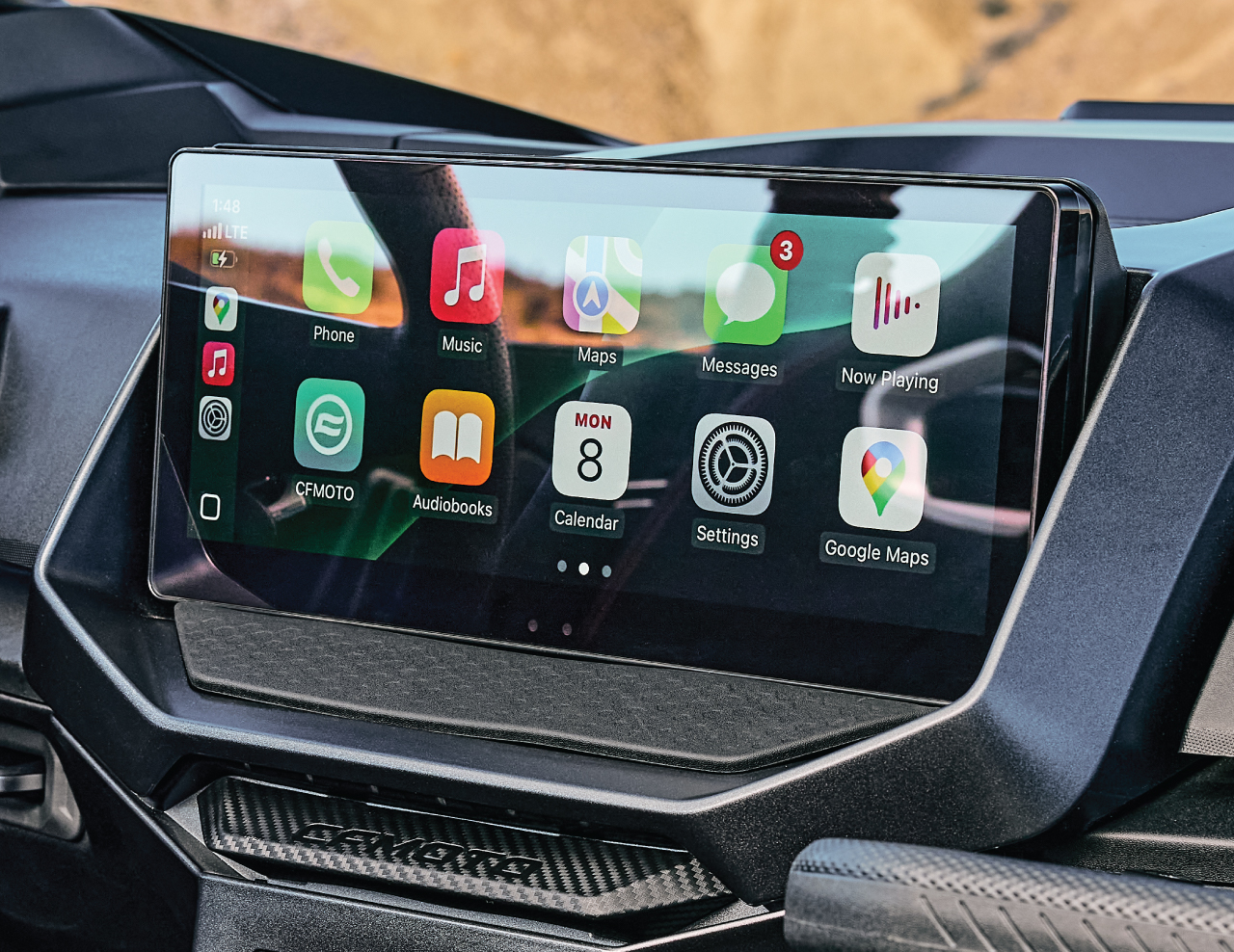

12,3" MMI TOUCHSCREEN

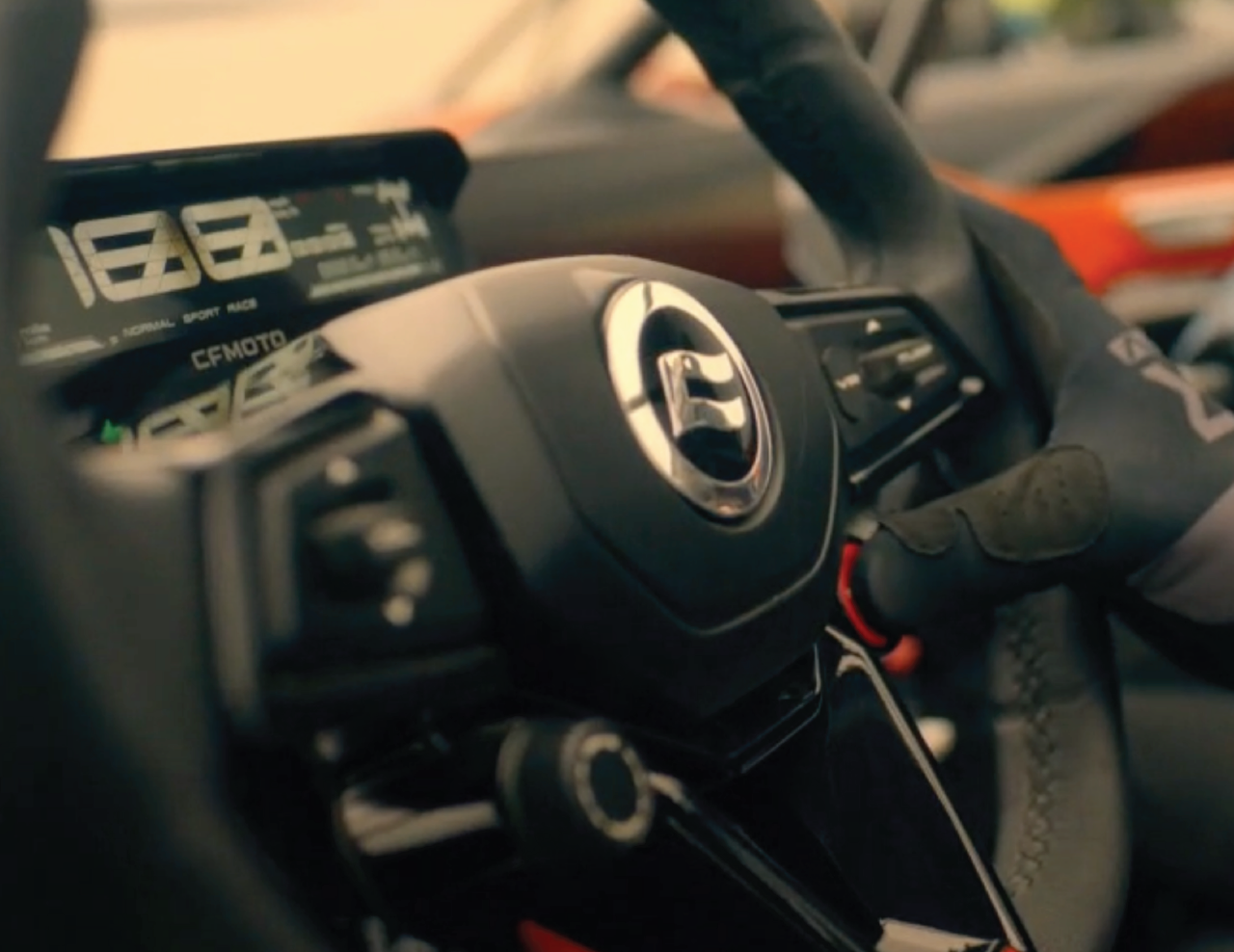

MULTI-FUNCTION STEERING WHEEL

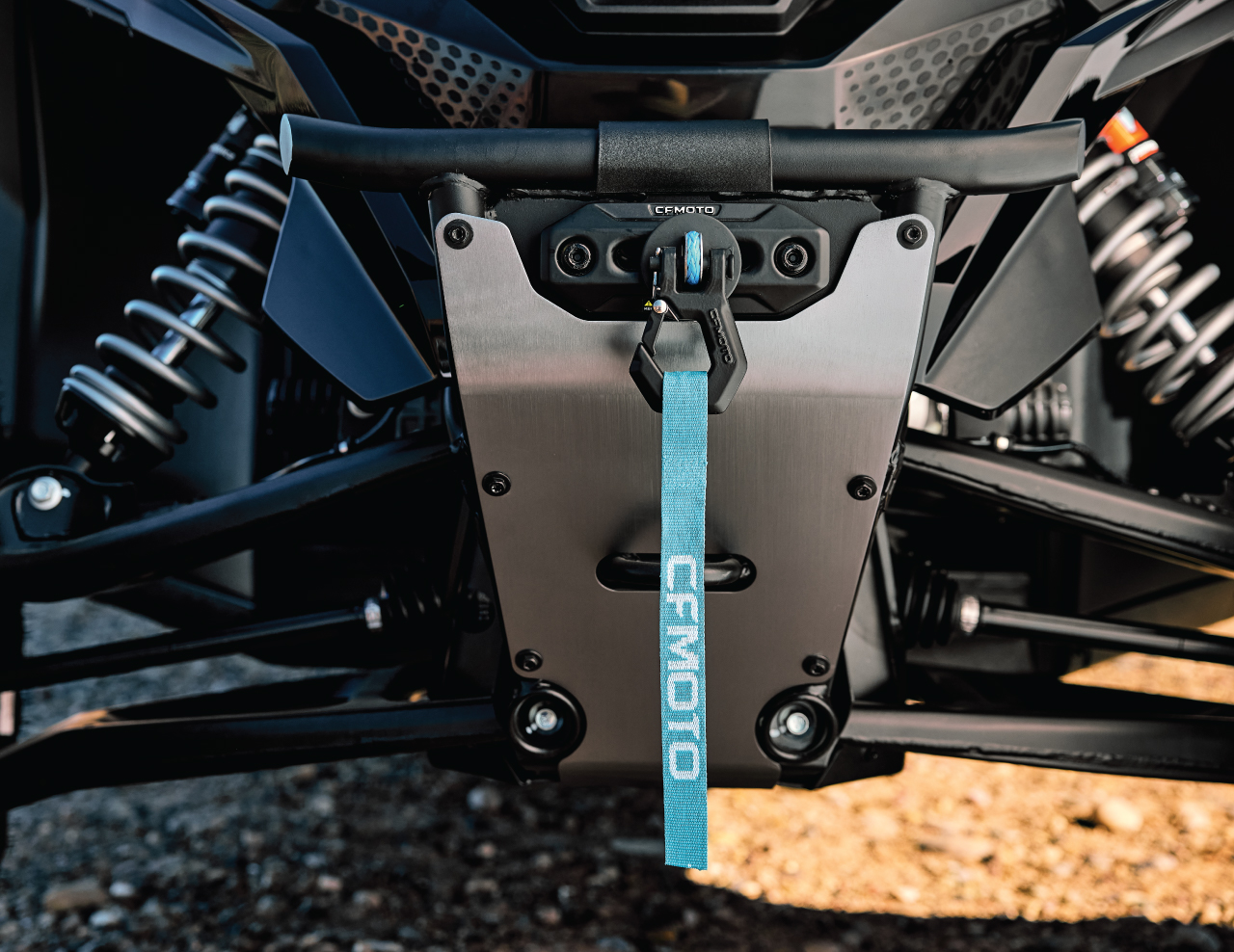

4,500lb. WINCH

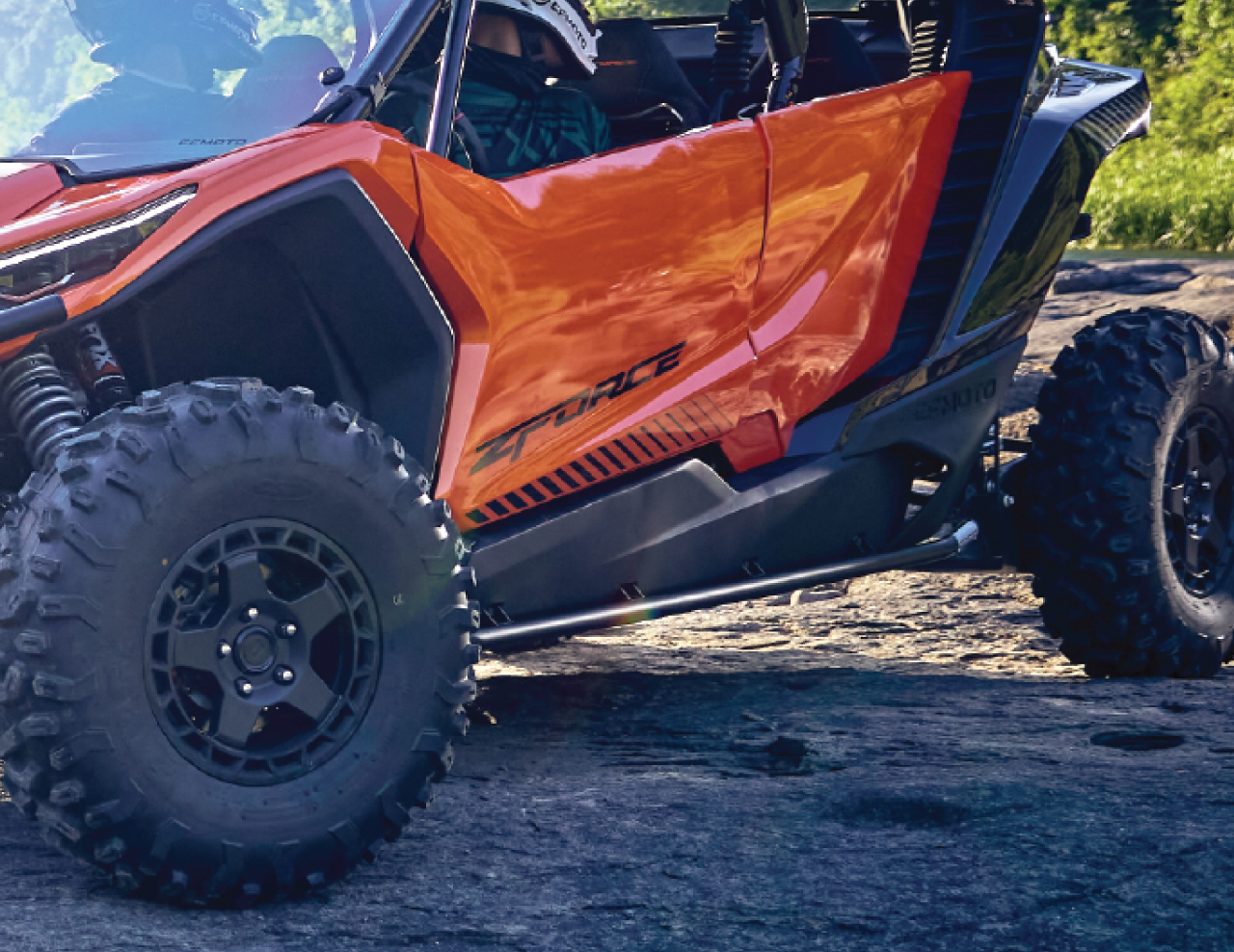

DOORS
CFMOTO RIDE
Specifications
Engine
- Type: 3 cylinder, 4-stroke, DOHC, liquid-cooled, Turbo
- Displacement: 998cc
- Max power: 154 hp / 7750 rpm
- Max torque: 107 lb-ft / 6500 rpm
- Bore & Stroke: 80 x 66.2 mm (3.1 in x 2.6 in)
- Compression: 9:2
- Engine management: Fuel injected engine
- Cooling system: Liquid
- Starting: Electric
- Battery: 33 Ah
Size / weight
- Length x Width x Height: 4039 x 1665 x 1740 mm (159 x 65.6 x 68.5 in)
- Wheelbase: 3277 mm (129 in)
- Ground clearance: 356 mm (14 in)
- Minimum turning radius: 7325 mm (288.3 in)
- Fuel tank capacity : 45 L (11.88 gal)
- Dry weight: 946 kg (2 086 lb) (59 kg /130 lb of accessories)
- Towing capacity: 400 kg (882 lb)
- Rear cargo box capacity: 90 kg (198 lb)
Transmission
- Clutch: OmniDrive™ CVT
- Gear box: P / R / N / H / L (parking lock shift system)
- Power train: 2WD / 4WD, locking front differential
Wheels
- Front wheels: Aluminum alloy (14 in)
- Rear wheels: Aluminum alloy (14 in)
- Front tires: 30 x 10-14
- Rear tires: 30 x 10-14
Suspension and steering
- Front Suspension: High clearance A-arm independent
- Front travel: 432 mm (17 in)
- Rear suspension: High clearance A-arm independent
- Rear travel: 508 mm (20 in)
- Shocks: FOX adjustable piggyback reservoir (2.5") gas shock with CAB controlled compression switch
- Steering: Variable Electric Power Steering (EPS)
Brakes
- Brakes: Four wheel brake disc
- Front Brake: Double-disc
- Rear Brake: Double-disc
Electronics
- Ignition: Electronic
- Dashboard: MMI 12.3 inch
- Driving modes: Comfort / trail / sport
- Lights: LED headlight with integrated turn signals
- USB Port: USB-C
- App control: CFMOTO Ride app connectivity
Protection plan
- Protection Plan: EASY protection plan available

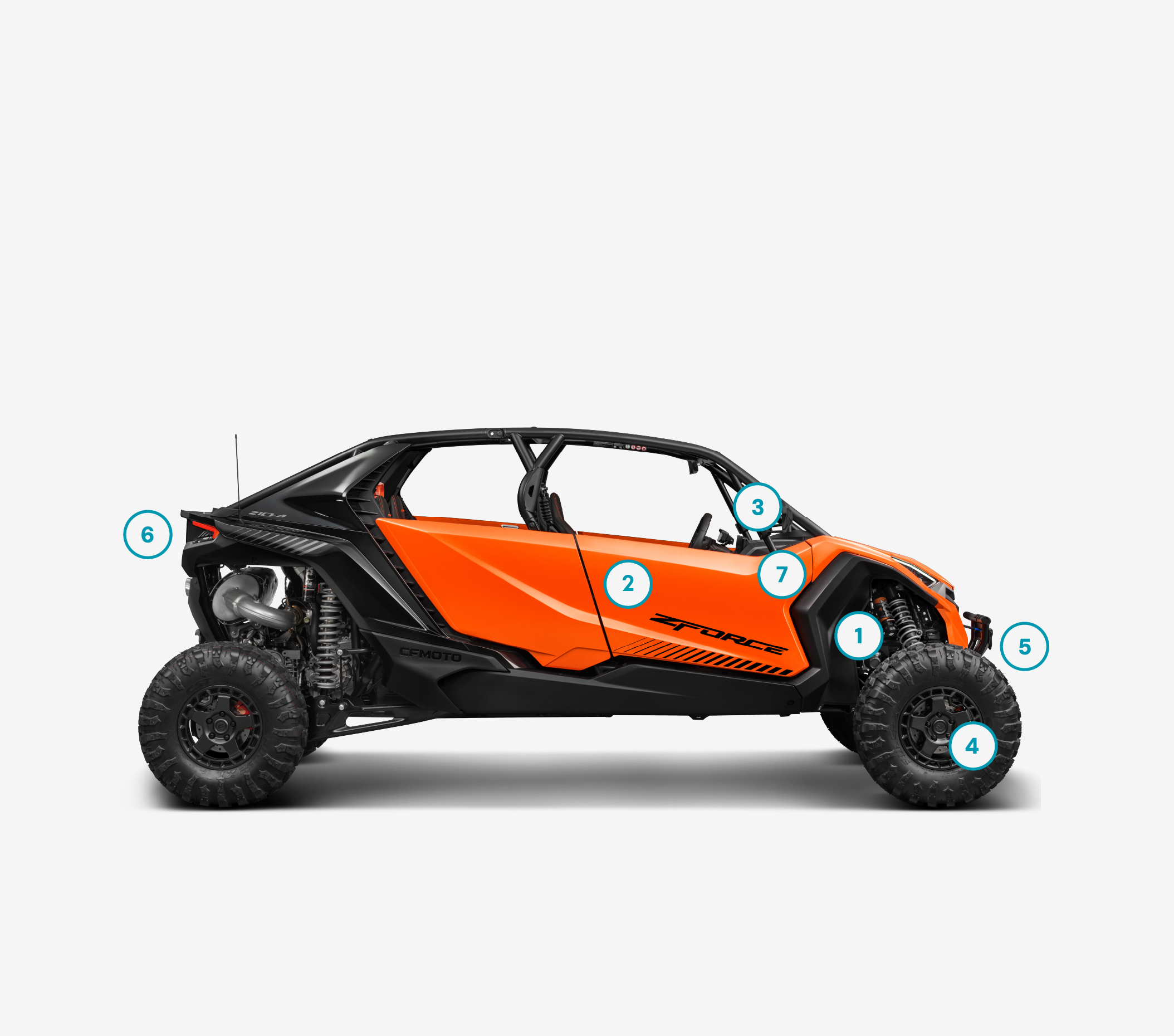

MAIN FEATURES
- 998cc fuel-injected engine
- Turbo
- Continuously Variable Transmission OmniDrive™
- Multi-function steering wheel
- Electric Power Steering (EPS)
- FOX® QSE shocks
- 12,3" MMI screen
- Rear camera
- 4 seater
- Half-doors
- 45 L fuel tank
- 4,500lb. winch
- Hitch specification: 400kg
- 14-inch black aluminum alloy rims
- 12V outlet and fast-chargin USB-C port
- Side mirrors
- LED headlights with integrated turn signals
- EASY protection plan available
- FOX QSE Shocks : $ 3,000
- Half-door: $3,000
- MMI 12.3 inch touch screen with Apple car pay: $ 2,000
- 14 inch aluminum rims: $1,500
- 4,500lb winch: $1,000
- Rear Camera : $ 300
- Safety and convenience package: $ 1,000
GIFT : Receive an aluminum top roof of $800 value as a gratuity
Why the new ZFORCE Z10-4 2027
Built to share high-performance adventures, the ZFORCE Z10-4 features the all-new OmniDrive™ continuously variable transmission for smooth power delivery and instant response. FOX® QSE shocks, adjustable from the steering wheel and integrated with the FOX app, adapt on the fly to deliver optimal control on the toughest terrain.

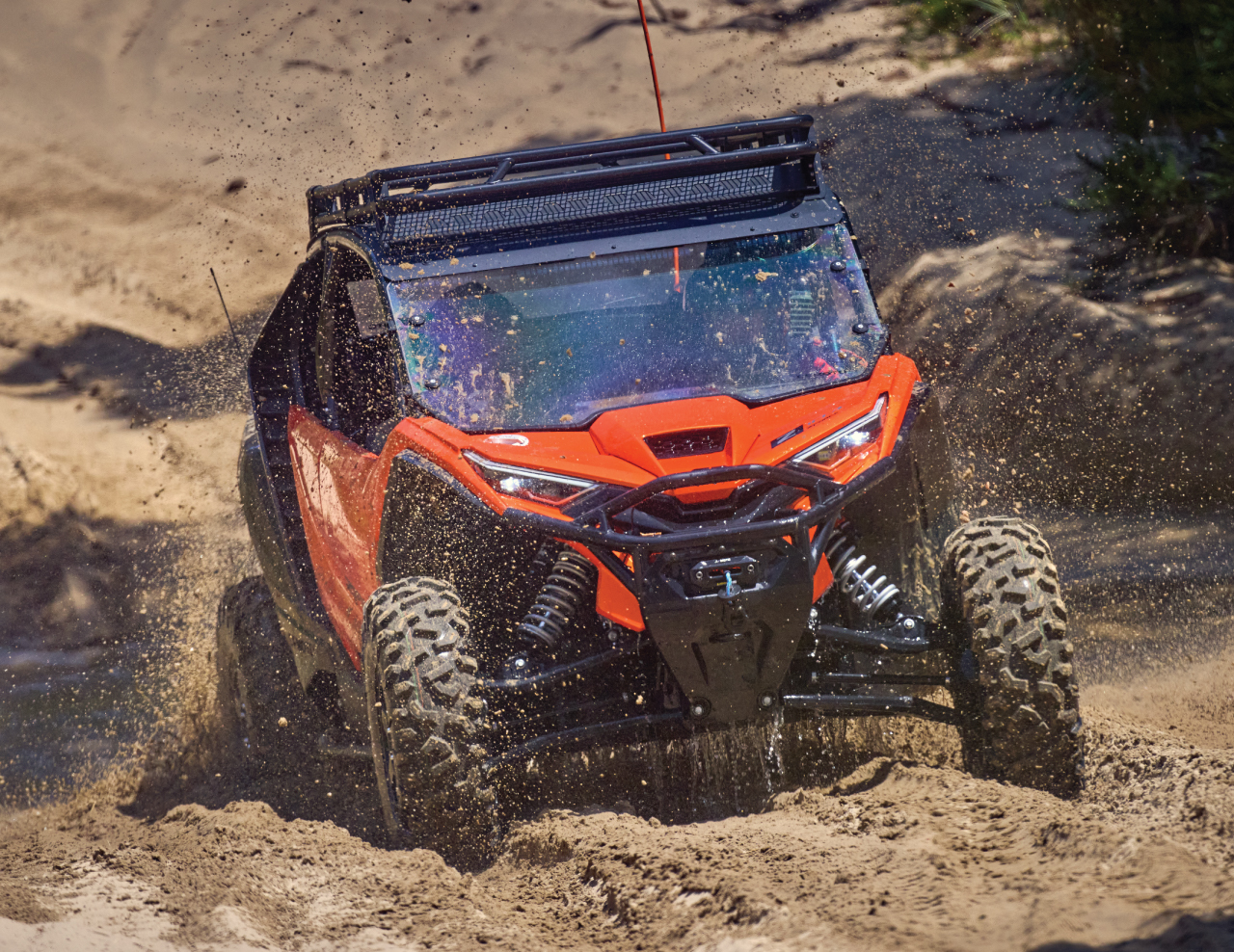

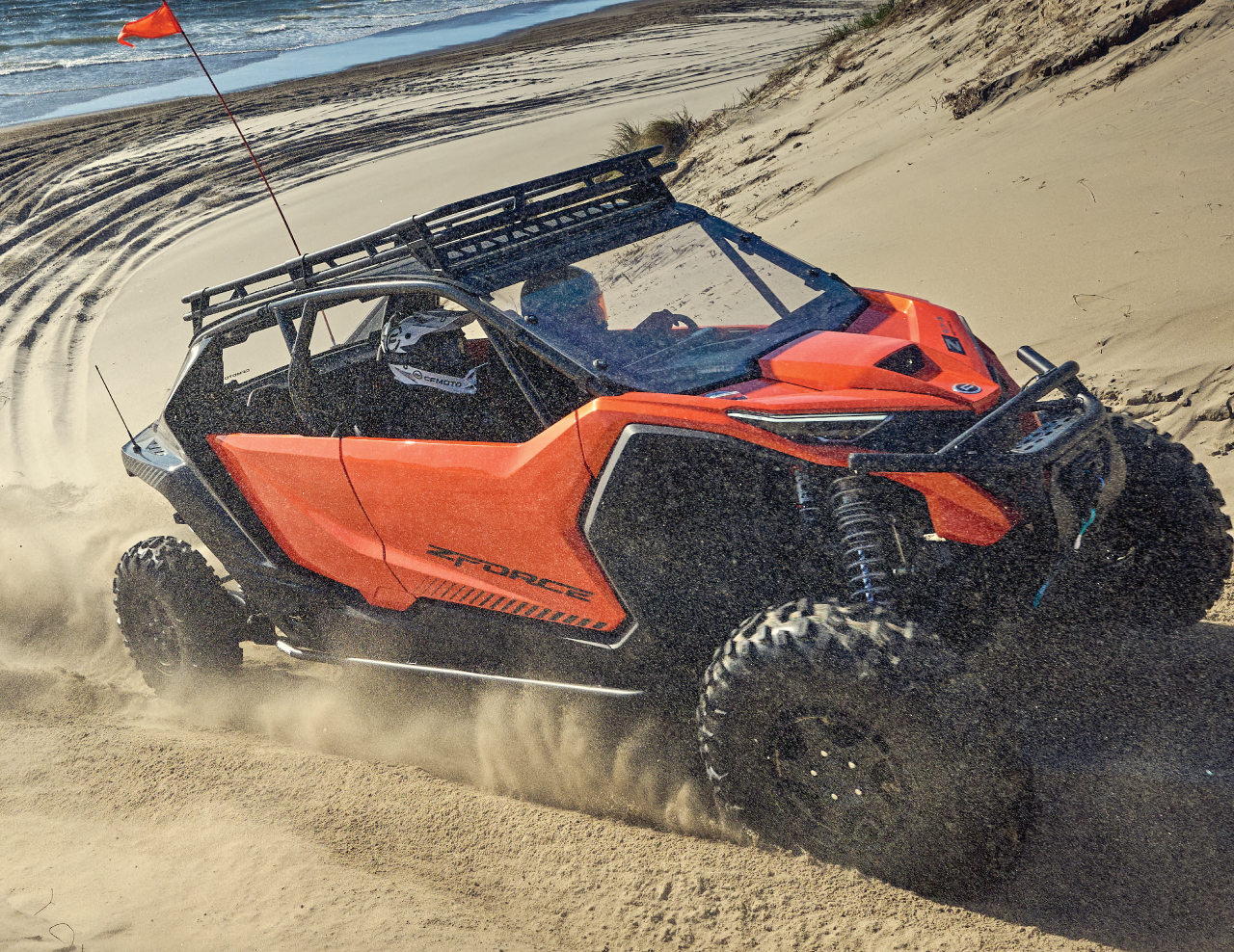

Personalize your ride
Create the vehicle that perfectly suits your needs and lifestyle. Whether it is an extra layer of protection, winter equipment or storage, you will find everything you need through our wide selection of accessories.
ROOF RACK
SIDE PROTECTION BARS
WINDSHIELD

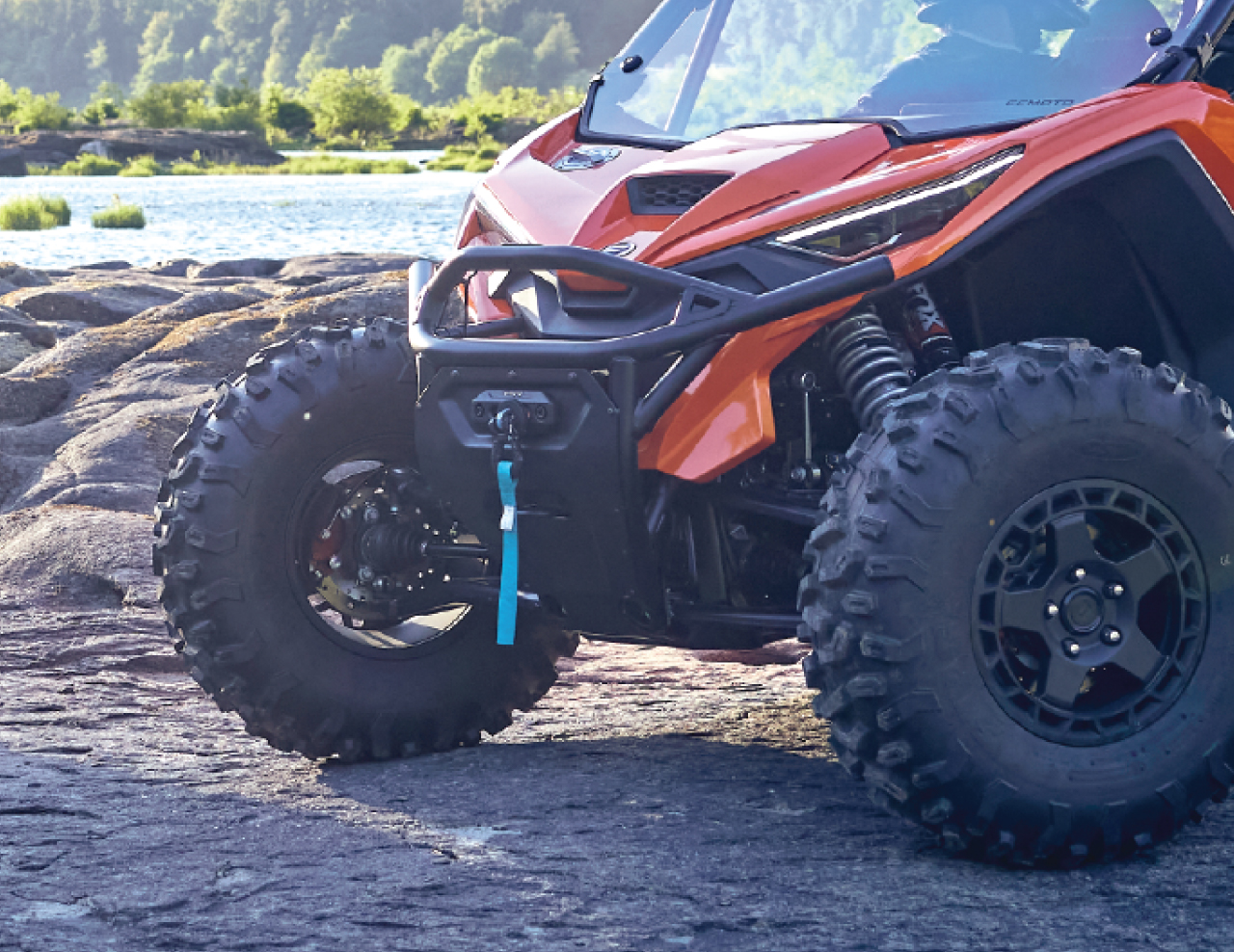

BUMPER
CFMOTO warranty
The best warranty in the industry, the standard CFMOTO Canada 5-year warranty includes 12 months of limited manufacturer’s warranty and 48 months of limited powertrain warranty.
For complete protection without deductible and unlimited mileage, choose the EASY protection plan and explore all the benefits that await you.
