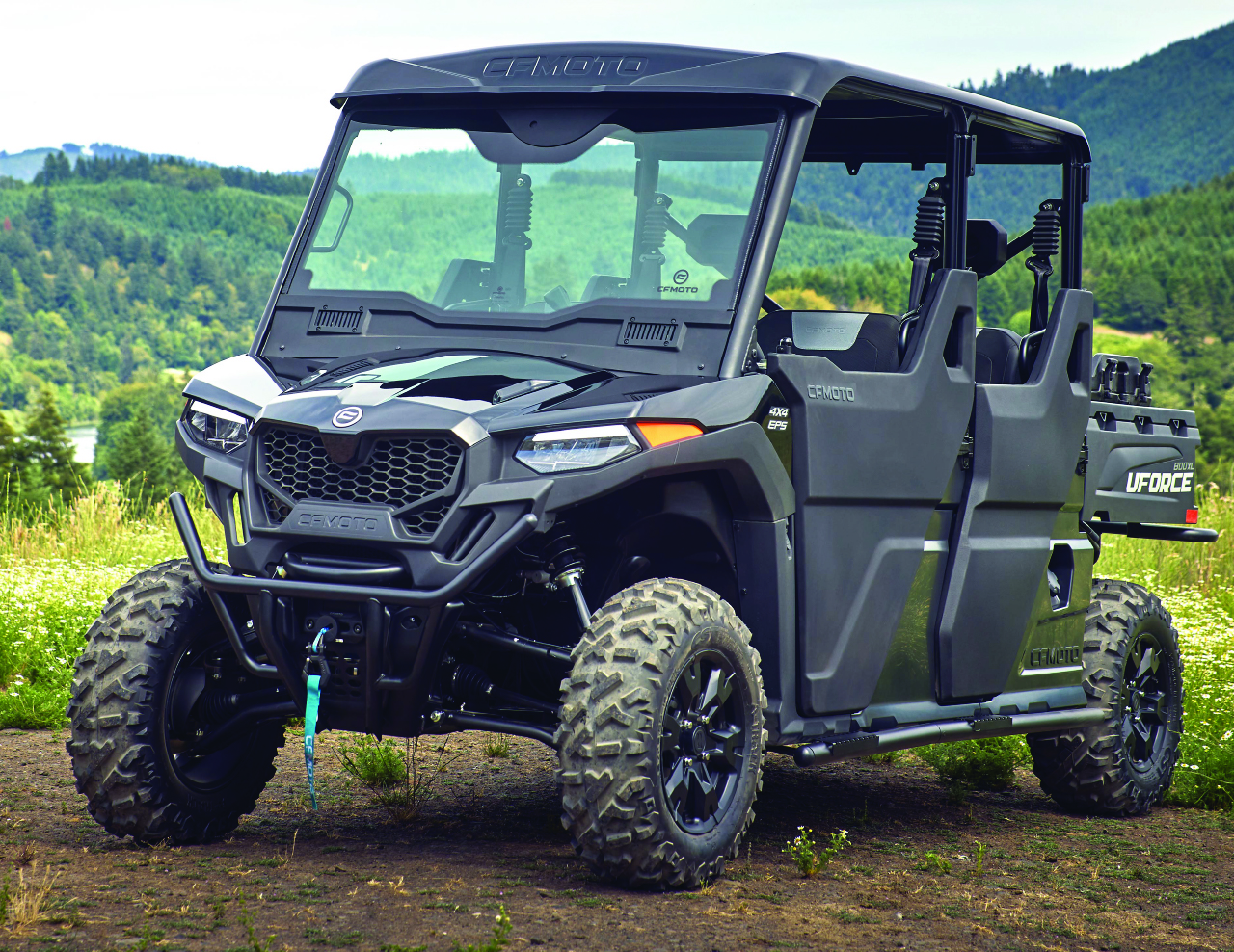

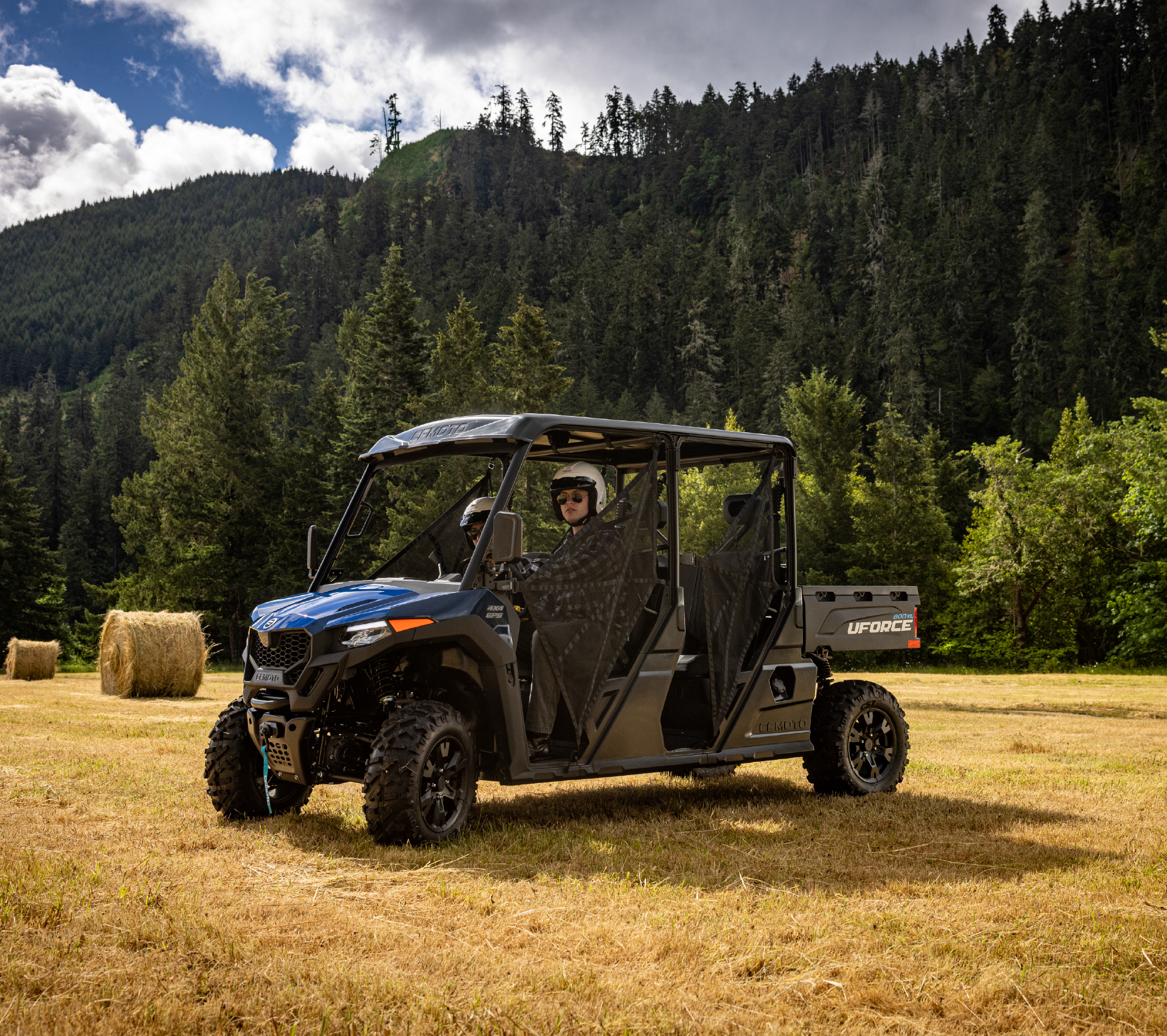

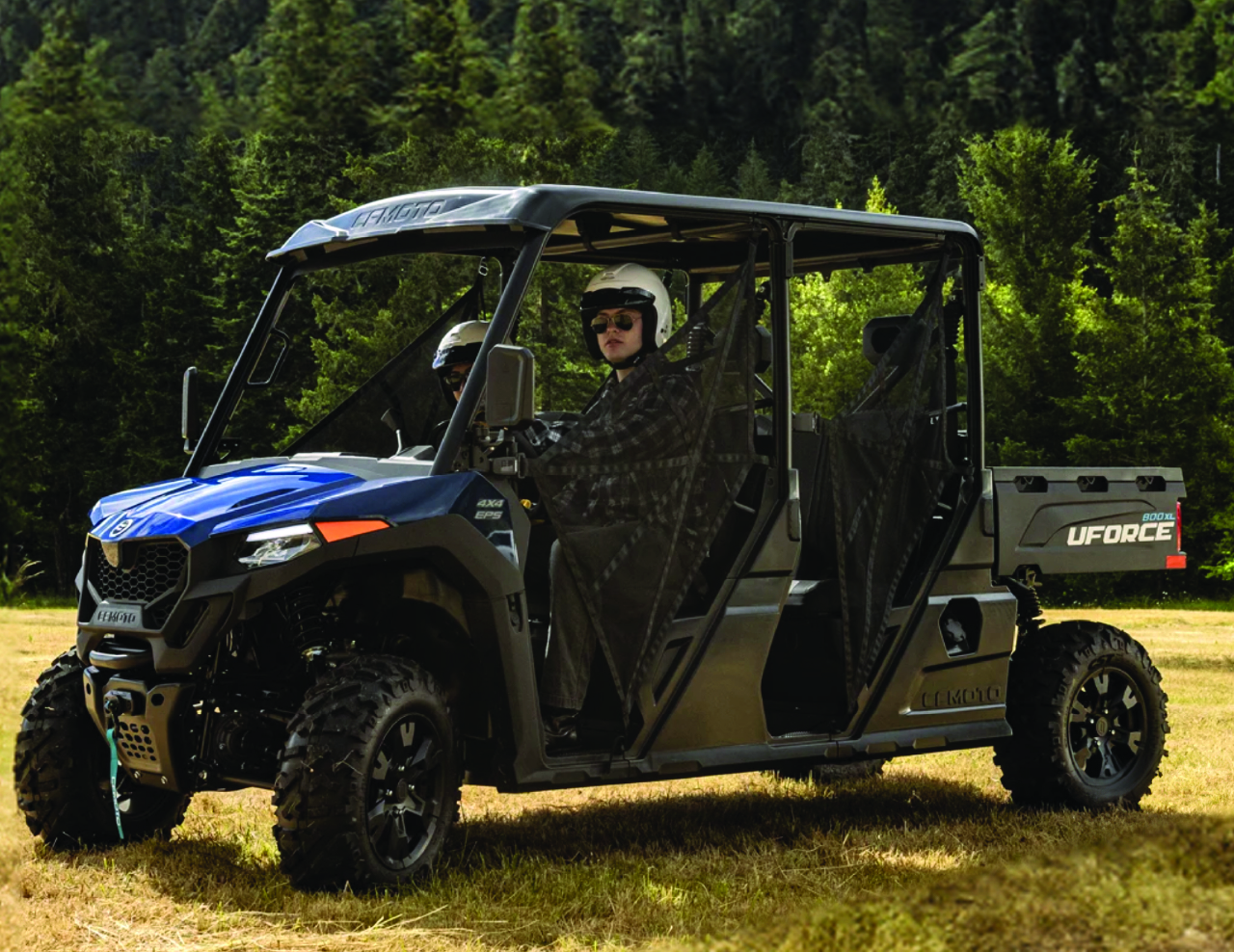

UFORCE 800 XL
Great adventures start with a machine that's both powerful and compact. Discover the new UFORCE 800 XL, powered by 63 horsepower at 7,000 rpm and built to carry up to four passengers for every task ahead. Its advanced suspension delivers a smoother ride and greater control over rough terrain. This utility UTV strikes the perfect balance between performance, capability, and compact design.
*The price indicated does not include registration fees, taxes, the cost of accessories and their installation. Preparation fee may vary per dealer. Photos for illustrative purposes only, accessories not included. Specifications can change.
MOTORIZATION

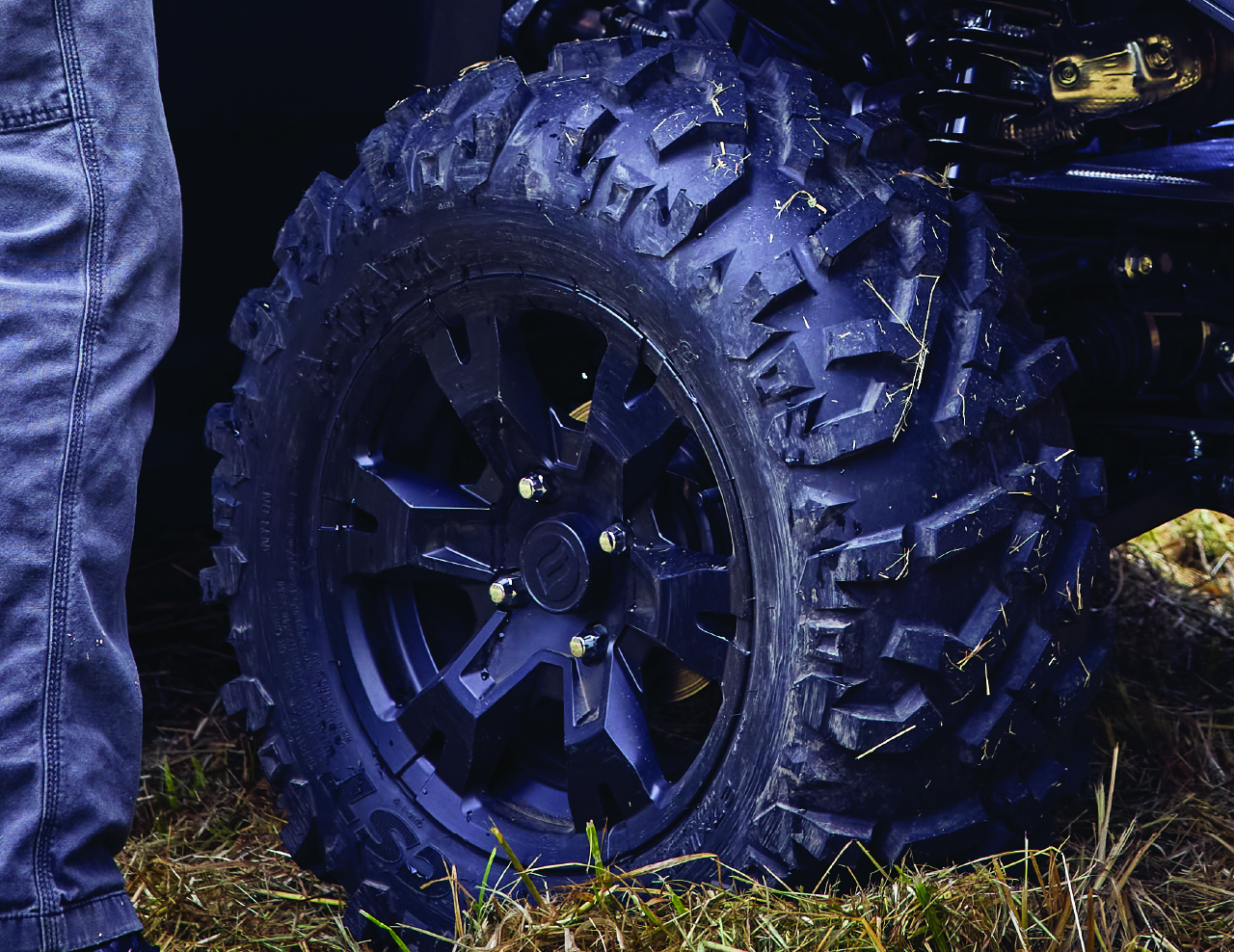

RIMS

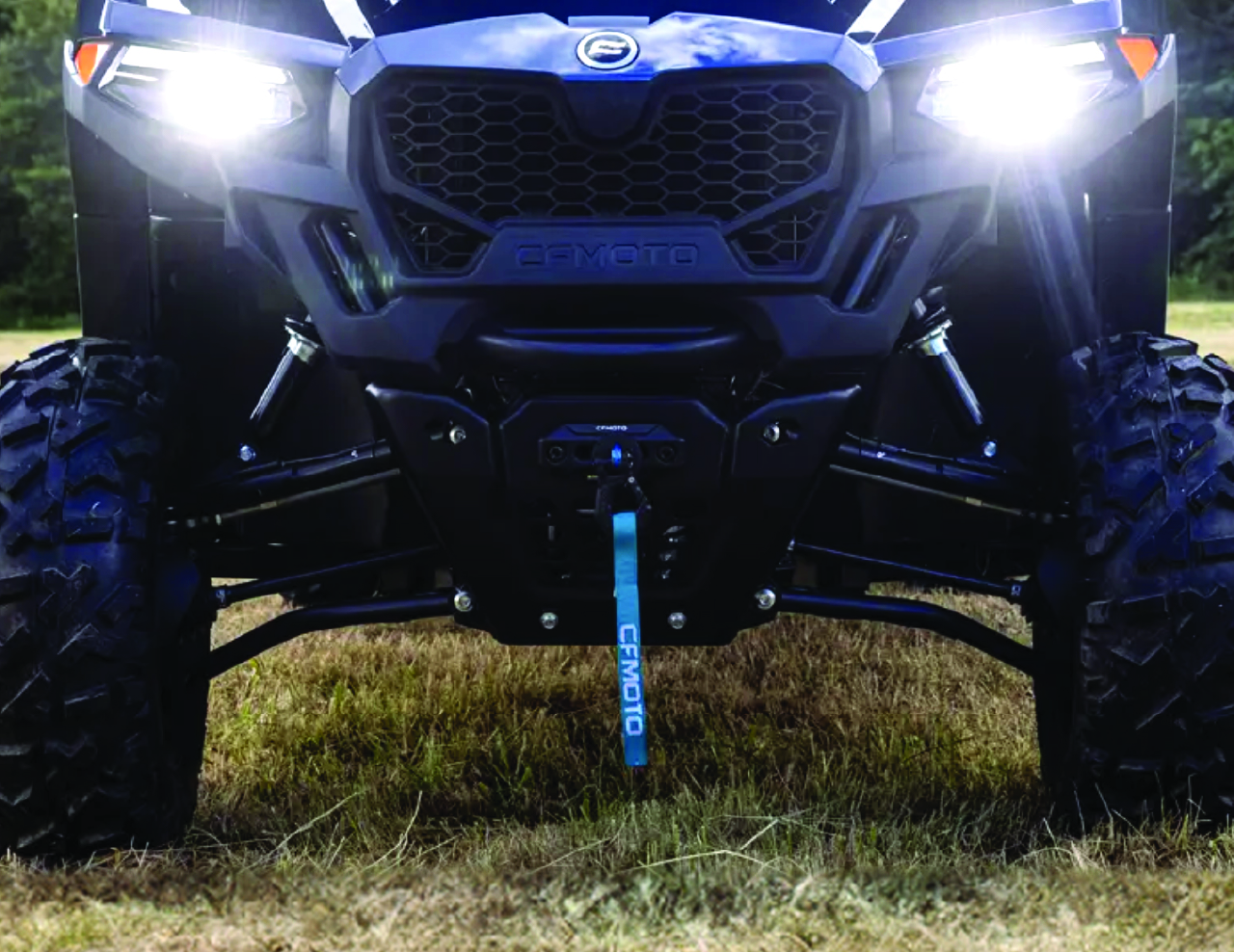

WINCH
SUSPENSION

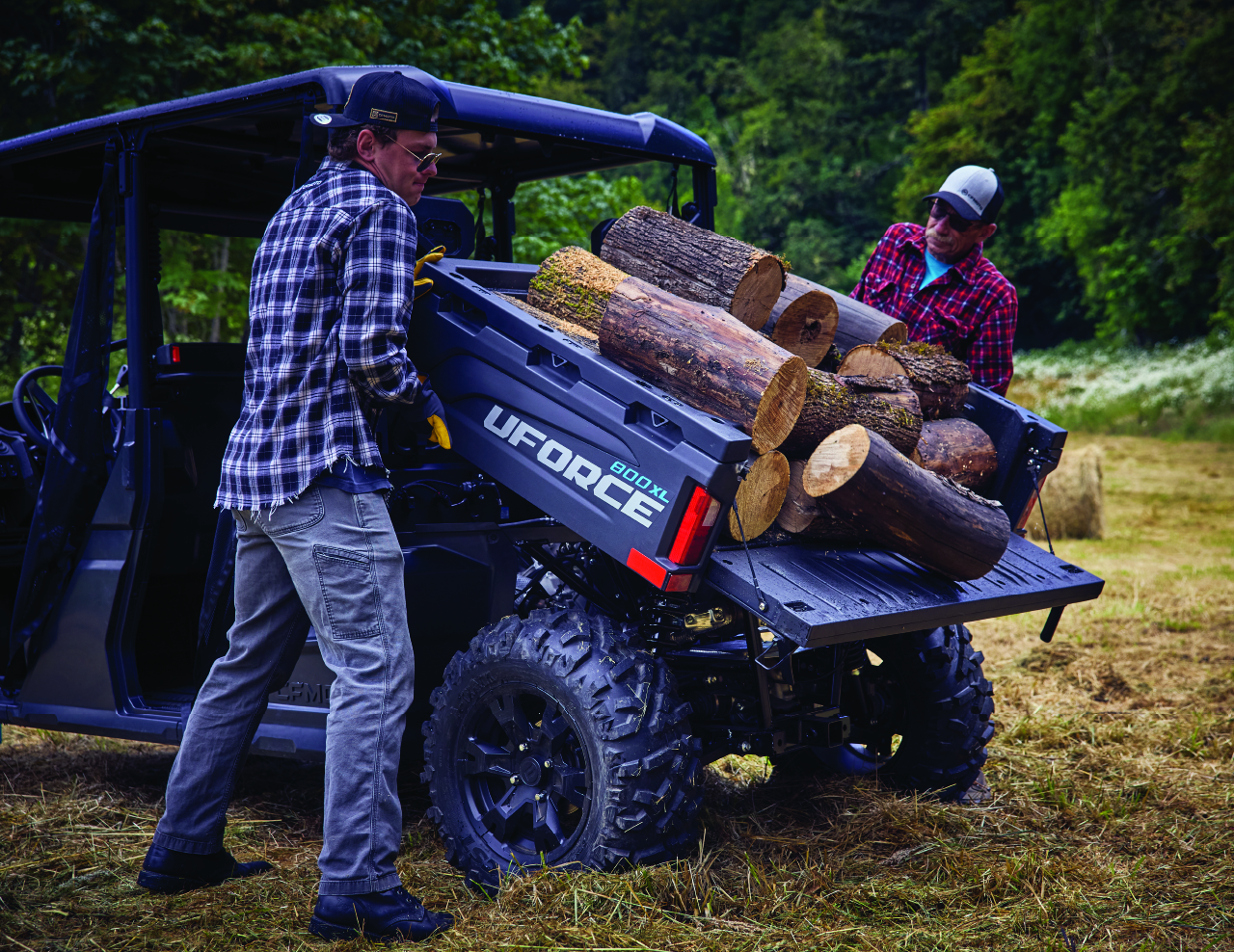

TILTING REAR BOX
Specifications
Engine
- Type: 4-strokes, 8-valves, liquid cooled, SOHC, V-Twin cylinder
- Displacement: 800cc
- Max power: 63 hp / 7000 rpm
- Max torque: 51 lb-ft / 5500 rpm
- Bore & Stroke: 91 x 61.5 mm (3.6 x 2.4 in)
- Compression: 10.8:1
- Engine management: Fuel injected engine
- Cooling system: Liquid
- Starting: Electric
- Battery: 30 Ah
Size / weight
- Length x Width x Height: 3635 x 1525 x 2007 mm (143.1 x 60 x 79 in)
- Wheelbase: 2770 mm (109 in)
- Ground clearance: 300 mm (11.8 in)
- Minimum turning radius: 5600 mm (220 in)
- Fuel tank capacity : 40 L (10.57 gal)
- Dry weight: 739 kg (1629 lbs)
- Payload capacity: 680 kg (1499.1 lbs)
- Towing capacity: 680 kg (1499.1 lbs)
- Rear cargo box capacity: 300 kg (661 lbs)
Transmission
- Clutch: OmniDrive™ CVT
- Gear box: P / R / N / H / L (parking lock shift system)
- Power train: 2WD / 4WD, locking front differential
Wheels
- Front wheels: Aluminum alloy (14 in)
- Rear wheels: Aluminum alloy (14 in)
- Front tires: 27 x 9-14
- Rear tires: 27 x 11-14
Suspension and steering
- Front Suspension: Double A-arm independent, hydraulic shock absorber
- Front travel: 225 mm (8.86 in)
- Rear suspension: Double A-arm independent with sway bar, hydraulic shock absorber
- Rear travel: 225 mm (8.86 in)
- Steering: Electric Power Steering (EPS)
Brakes
- Brakes: Four wheel hydraulic disc brake
- Front Brake: Double-disc
- Rear Brake: Double-disc
Electronics
- Ignition: Electronic
- Dashboard: 5'' LCD
- Driving modes: Bosch® electronic throttle with work/normal modes
- Lights: LED headlights with integrated turn signals
- USB Port: USB-C
Protection plan
- Protection Plan: EASY protection plan available
MAIN FEATURES
- 800cc fuel-injected engine
- Oil shock absorbers
- OmniDrive™ CVT Transmission
- Electric Power Steering (EPS)
- 4 seater
- Rooftop included
- Tilting rear box
- Large-volume storage spaces and removable storage box
- Large fuel tank
- 4,500lb. winch
- Hitch specification: 680kg
- 14-inch black aluminum alloy rims
- 12V outlet and fast-charging USB-C port
- Side mirrors
- LED headlights with integrated turn signals
- EASY protection plan available

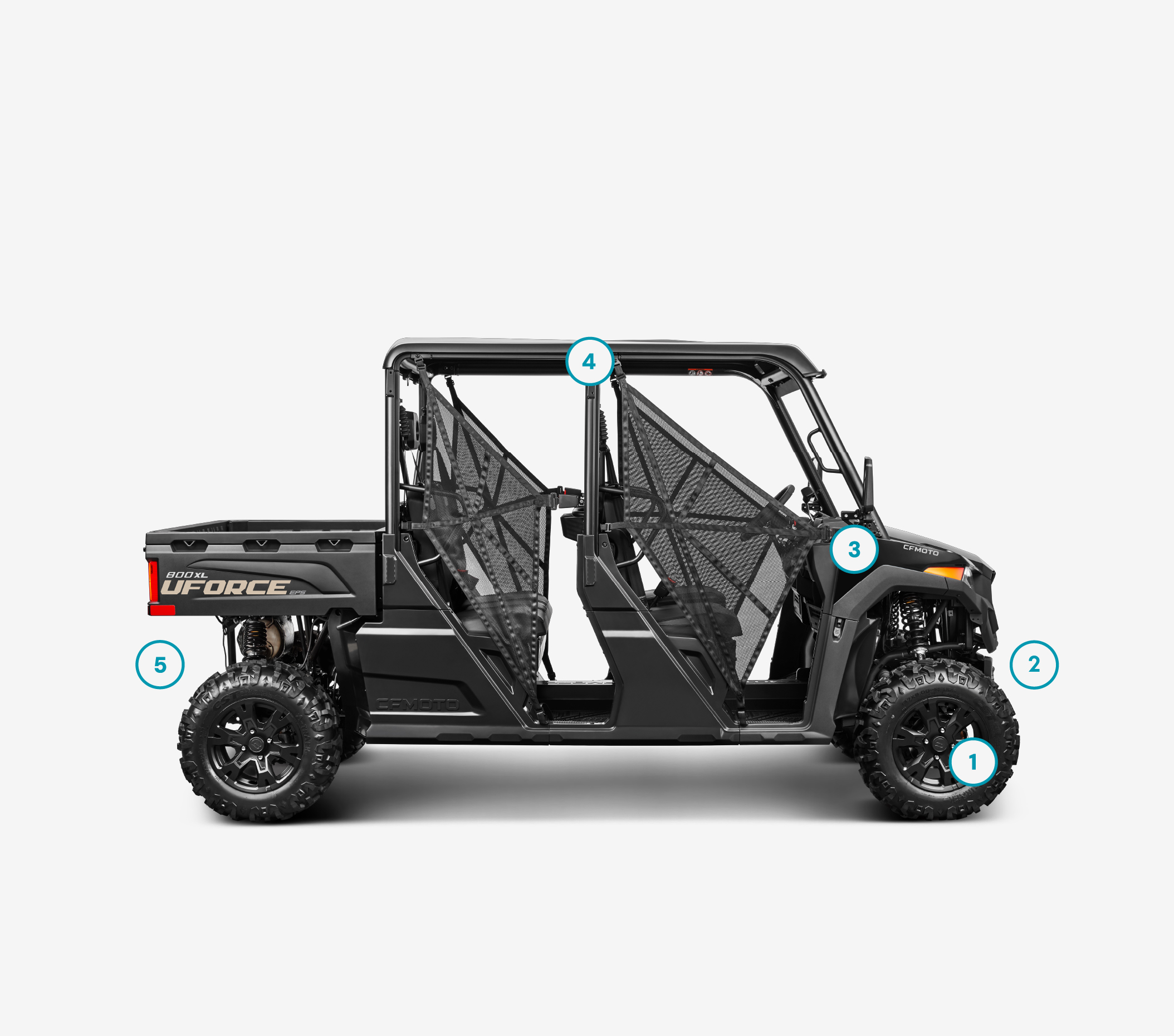

More than $3,800 in add-ons!
- Rims: $1,200
- 4,500lb winch: $1,000
- Safety and convenience package: $1,000
- Roof: $500
- Trailer hitch: $100
Why the new UFORCE 800 XL 2027
Built to tackle the toughest jobs, the UFORCE 800 XL is powered by an 800cc EFI V-Twin producing 63 horsepower. Its impressive power, hauling capability, and towing capacity make it a dependable partner for getting the job done, wherever the work takes you.
Personalize your ride
Create the vehicle that perfectly suits your needs and lifestyle. Whether it is an extra layer of protection, winter equipment or storage, you will find everything you need through our wide selection of accessories.

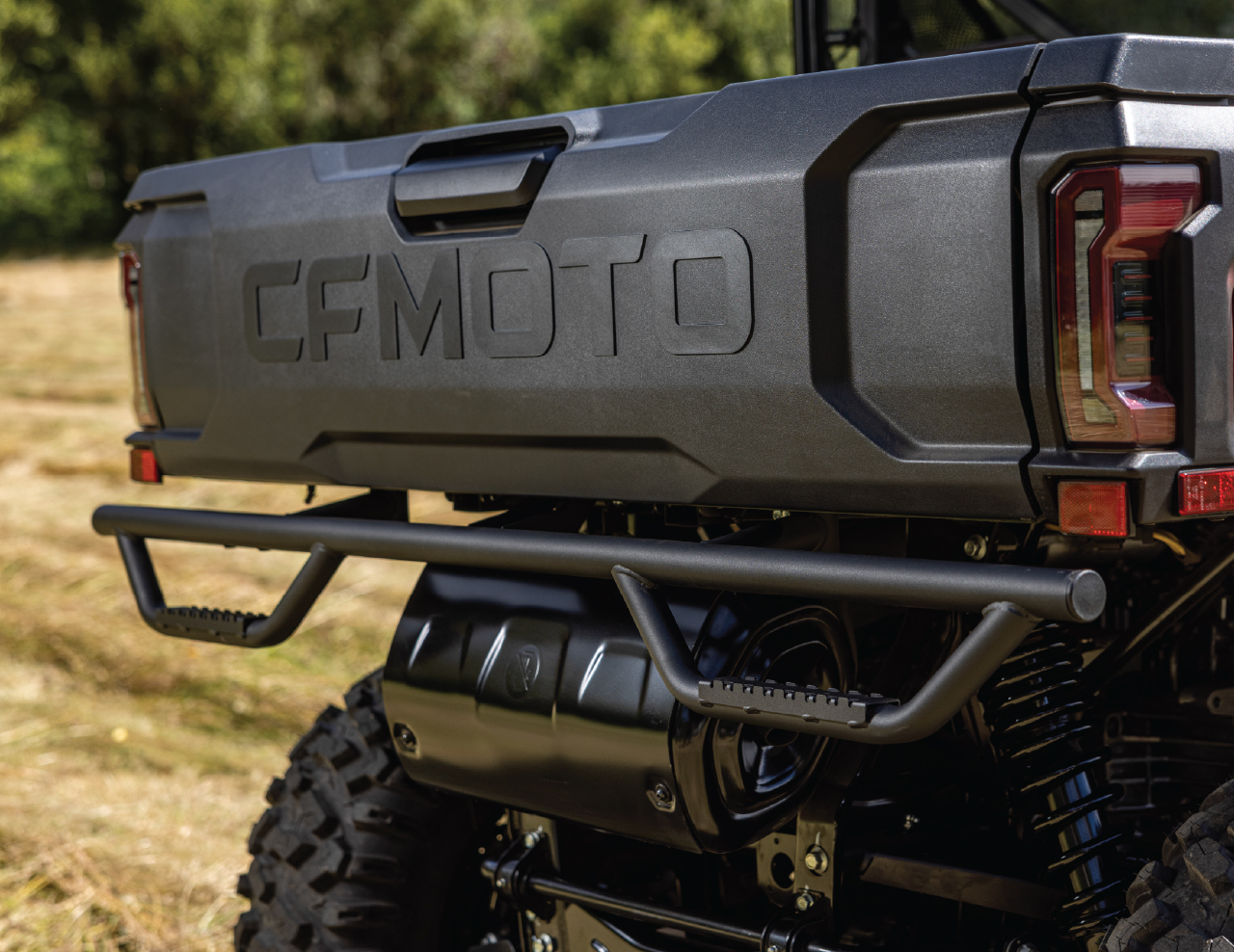

REAR BUMPER

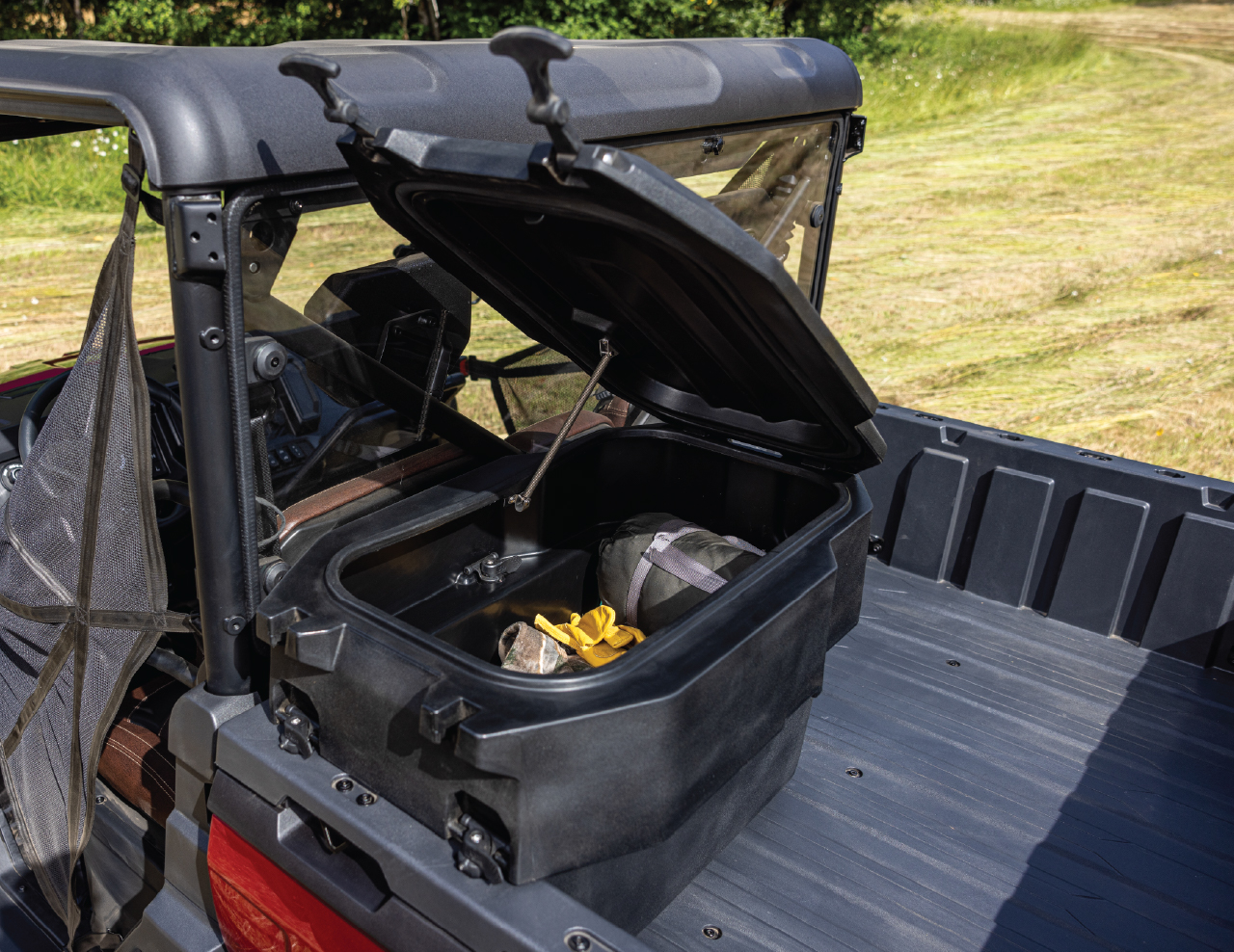

SMALL BOX

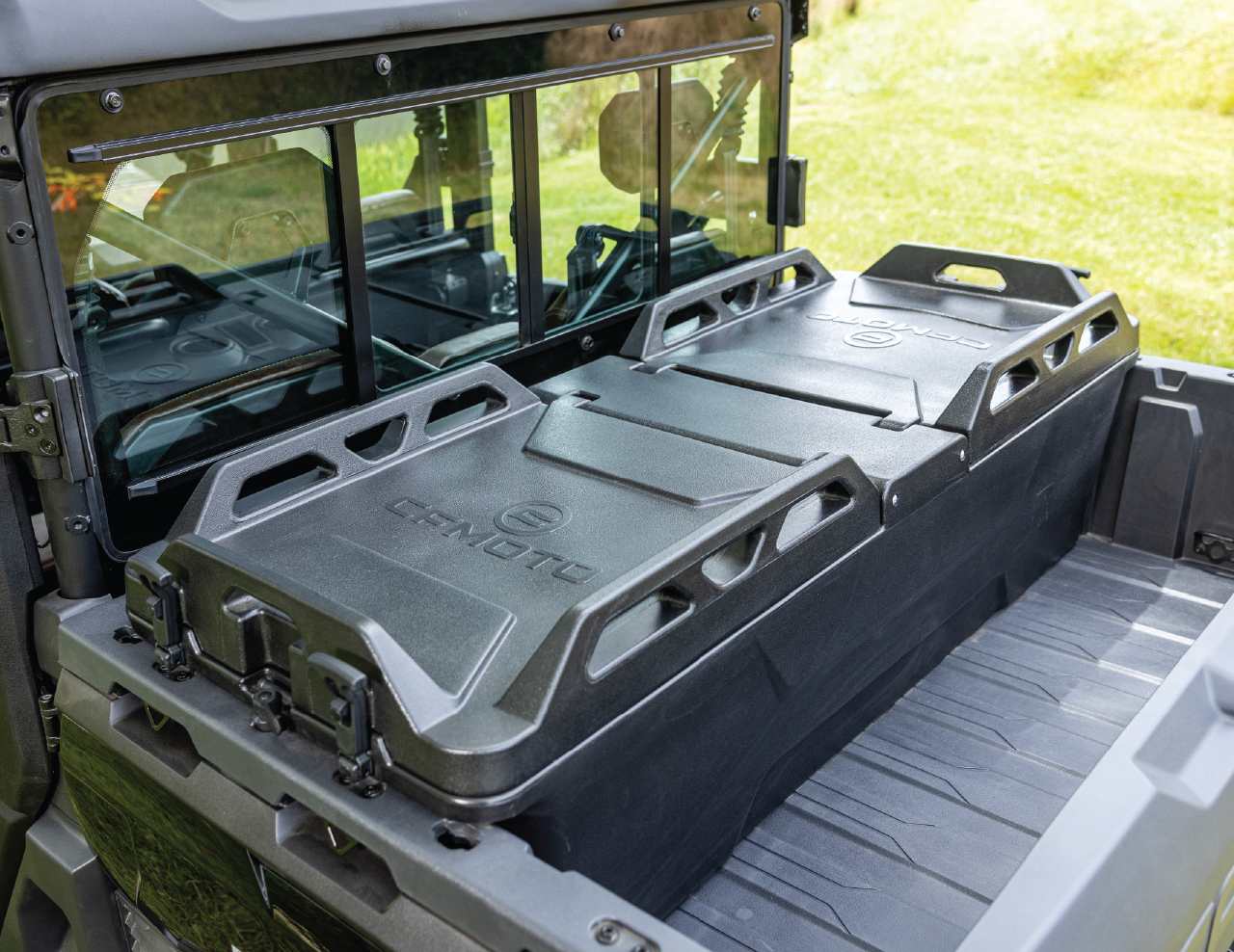

REAR CARGO BOX
ROCK SLIDERS
CFMOTO warranty
The best warranty in the industry, the standard CFMOTO Canada 5-year warranty includes 12 months of limited manufacturer’s warranty and 48 months of limited powertrain warranty.
For complete protection without deductible and unlimited mileage, choose the EASY protection plan and explore all the benefits that await you.
