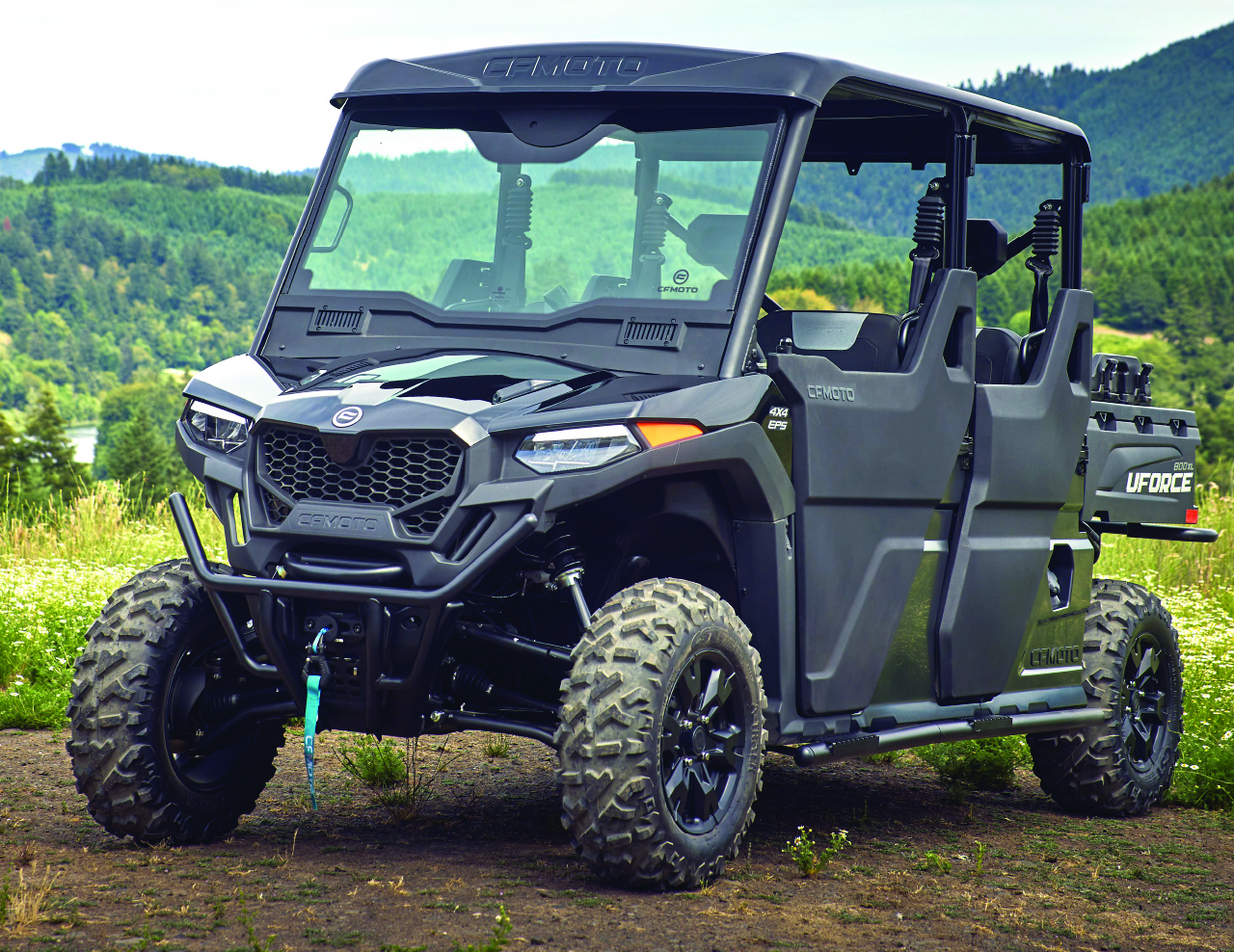

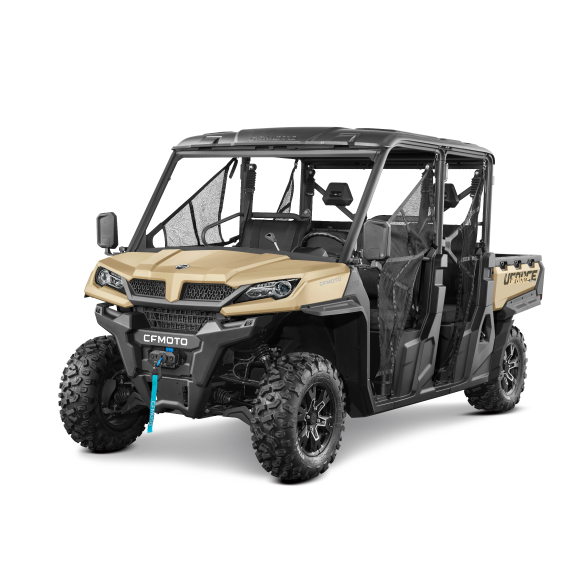

UFORCE 800XL
*The price indicated does not include registration fees, taxes, the cost of accessories and their installation. Preparation fee may vary per dealer. Photos for illustrative purposes only, accessories not included. Specifications can change.

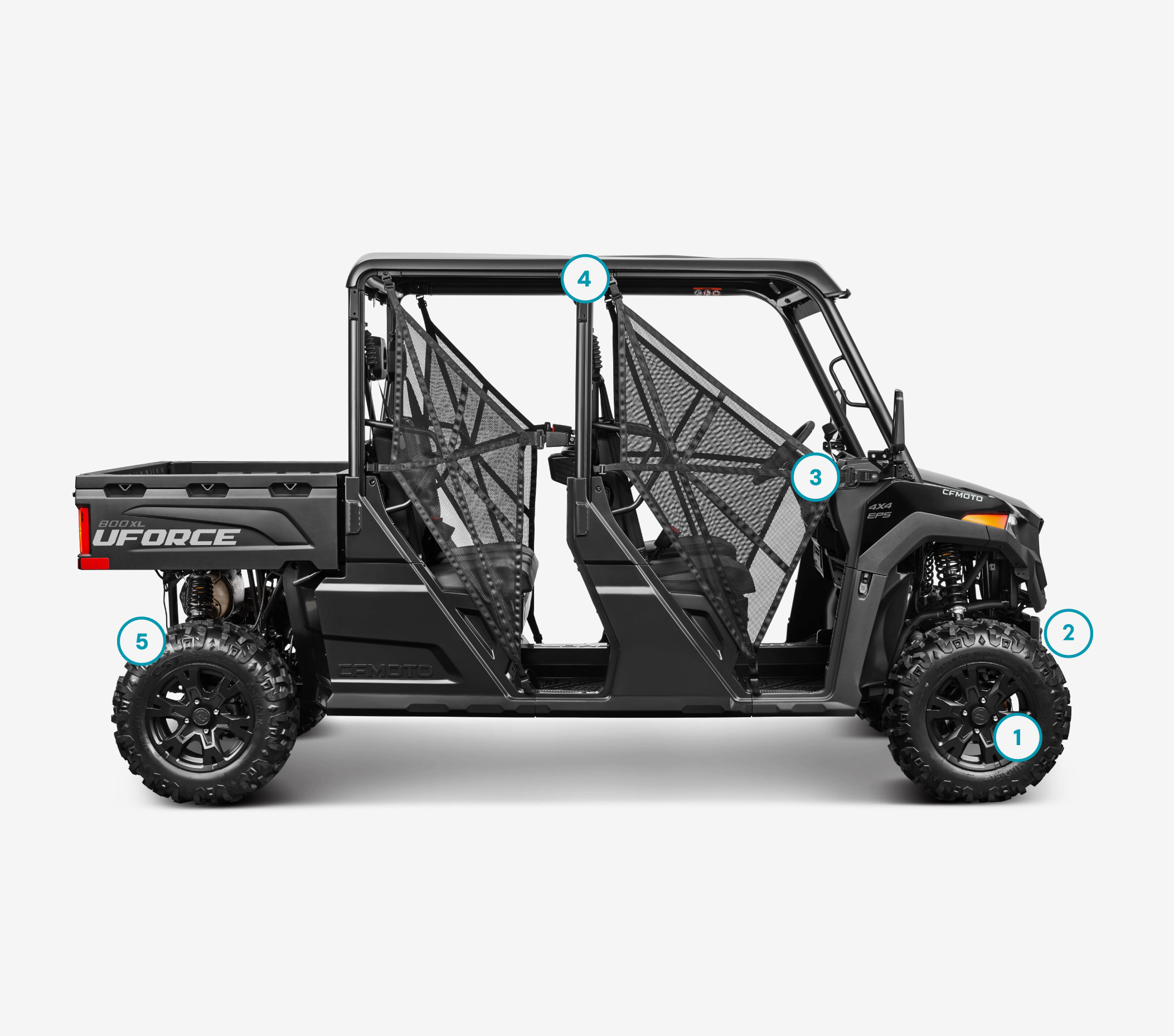

MOTORIZATION

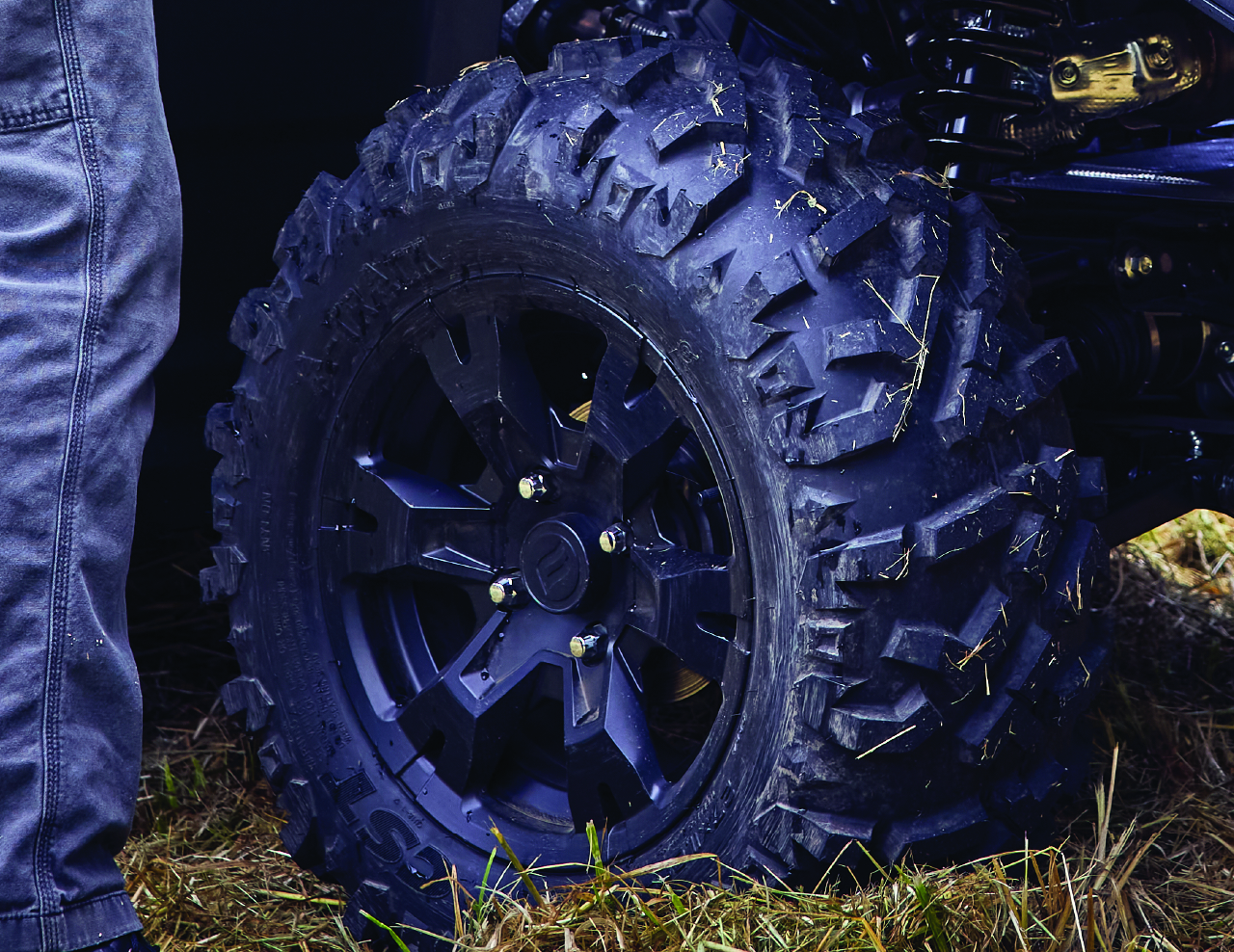

RIMS

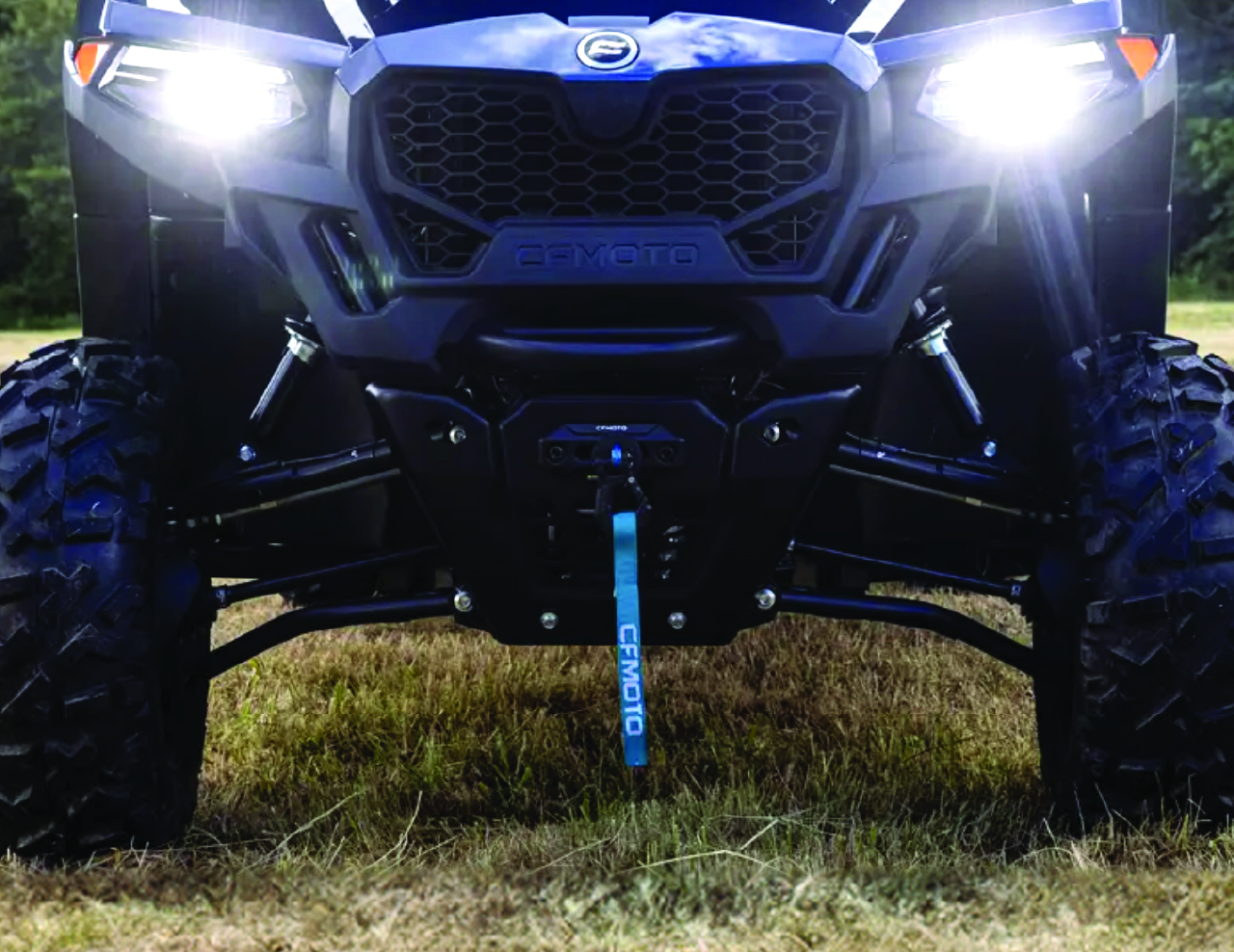

WINCH

SUSPENSION

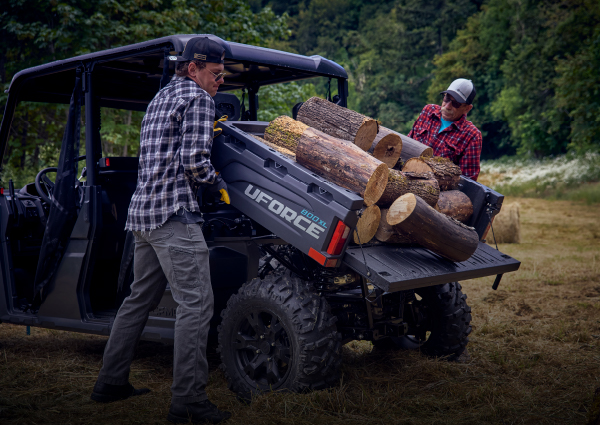

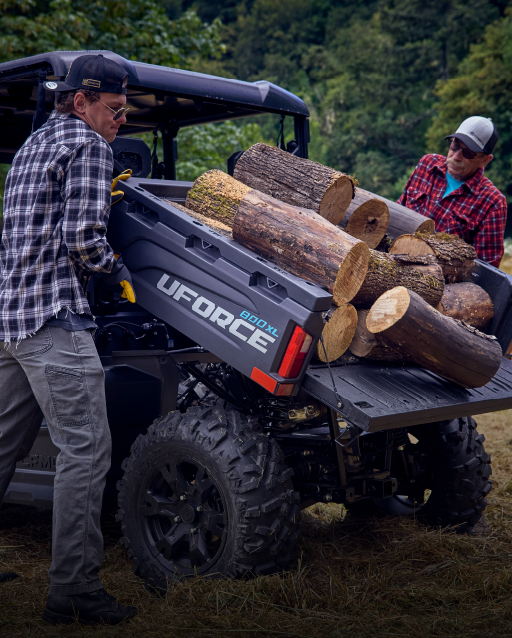

TILTING REAR BOX
Specifications
Engine
- Type: 4-strokes, 8-valves, liquid cooled, SOHC, V-Twin cylinder
- Displacement: 800cc
- Max power: 63 hp / 7000 rpm
- Max torque: 51 lb-ft / 5500 rpm
- Bore & Stroke: 91 x 61.5 mm (3.6 x 2,4 in)
- Compression: 10.8:1
- Engine management: Fuel injected engine
- Cooling system: Liquid
- Starting: Electric
- Battery: 28 Ah
Size / weight
- Length x Width x Height: 3635 x 1525 x 2007 mm (143.1 x 60 x 79 in)
- Wheelbase: 2770 mm (109 in)
- Ground clearance: 300 mm (11.8 in)
- Minimum turning radius: 5600 mm (220.4 in)
- Fuel tank capacity : 40 L (10.57 gal)
- Curb weight : 773 kg (1704.1 lbs)
- Payload capacity: 680 kg (1499.1 lbs)
- Towing capacity: 680 kg (1500 lbs)
- Rear cargo box capacity: 300 kg (661.3 lbs)
Transmission
- Clutch: OmniDrive™ CVT
- Gear box: P / R / N / H / L (parking lock shift system)
- Power train: 2WD / 4WD, locking front differential
Wheels
- Front wheels: Aluminum alloy (14 x 7 in)
- Rear wheels: Aluminum alloy (14 x 8 in)
- Front tires: 27 x 9-14
- Rear tires: 27 x 11-14
Suspension and steering
- Front Suspension: Double A-arm independent, hydraulic shock absorber
- Front travel: 225 mm (8.86 in)
- Rear suspension: Double A-arm independent with sway bar, hydraulic shock absorber
- Rear travel: 225 mm (8.86 in)
- Steering: Electric Power Steering (EPS)
Brakes
- Brakes: Four wheel hydraulic disc brake
Electronics
- Dashboard: 5'' LCD
- Lights: LED headlights with integrated turn signals
Protection plan
- Protection Plan: EASY protection plan available

- 800cc fuel-injected engine
- Oil shock absorbers
- OmniDrive™ CVT Transmission
- Electric Power Steering (EPS)
- 4 seater
- Rooftop included

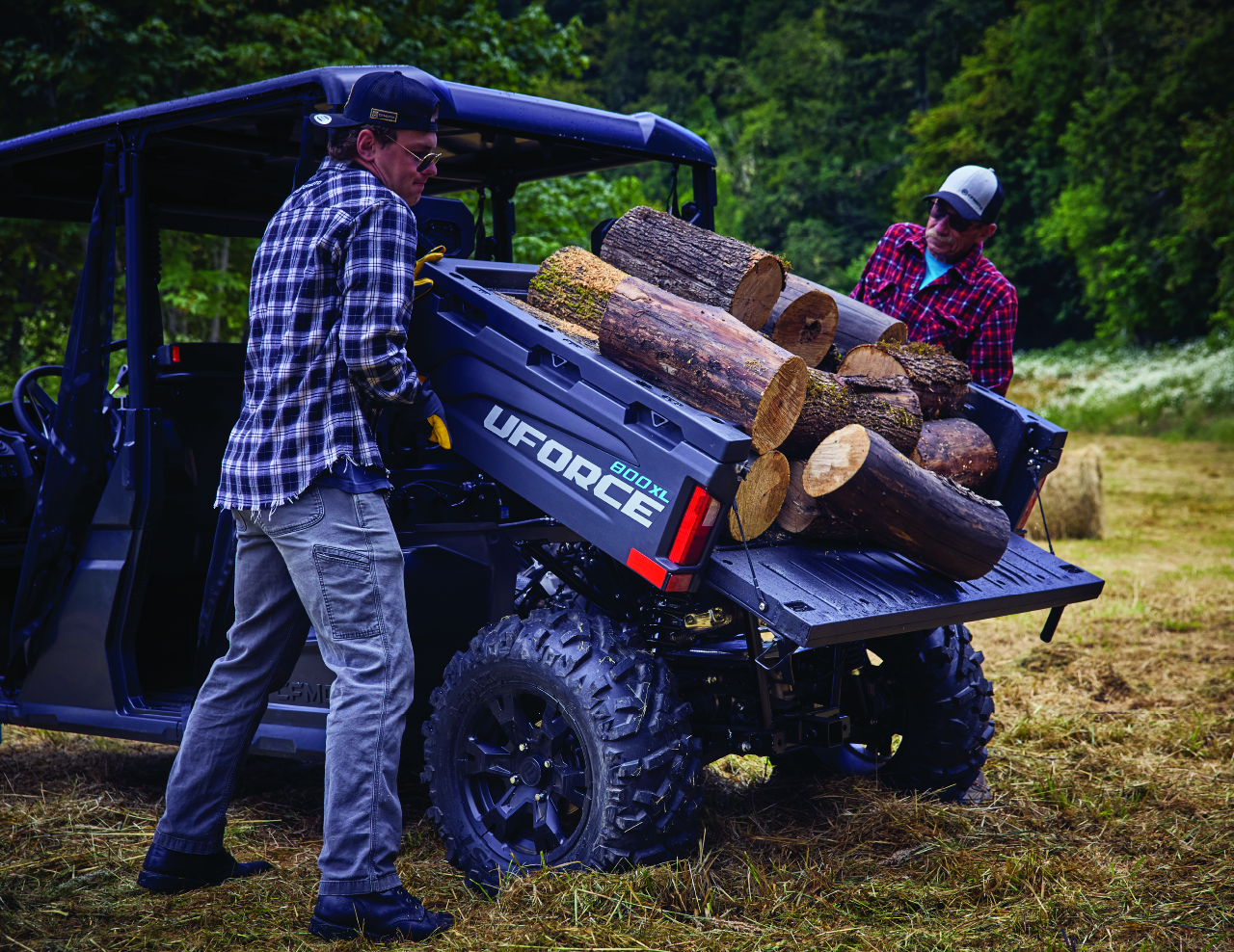

- Tilting rear box
- Large-volume storage spaces and removable storage box
- Large fuel tank
- 4,500lb. winch
- Hitch specification: 680kg
- 14-inch black aluminum alloy rims
- 12V outlet and fast-charging USB-C port
- Side mirrors

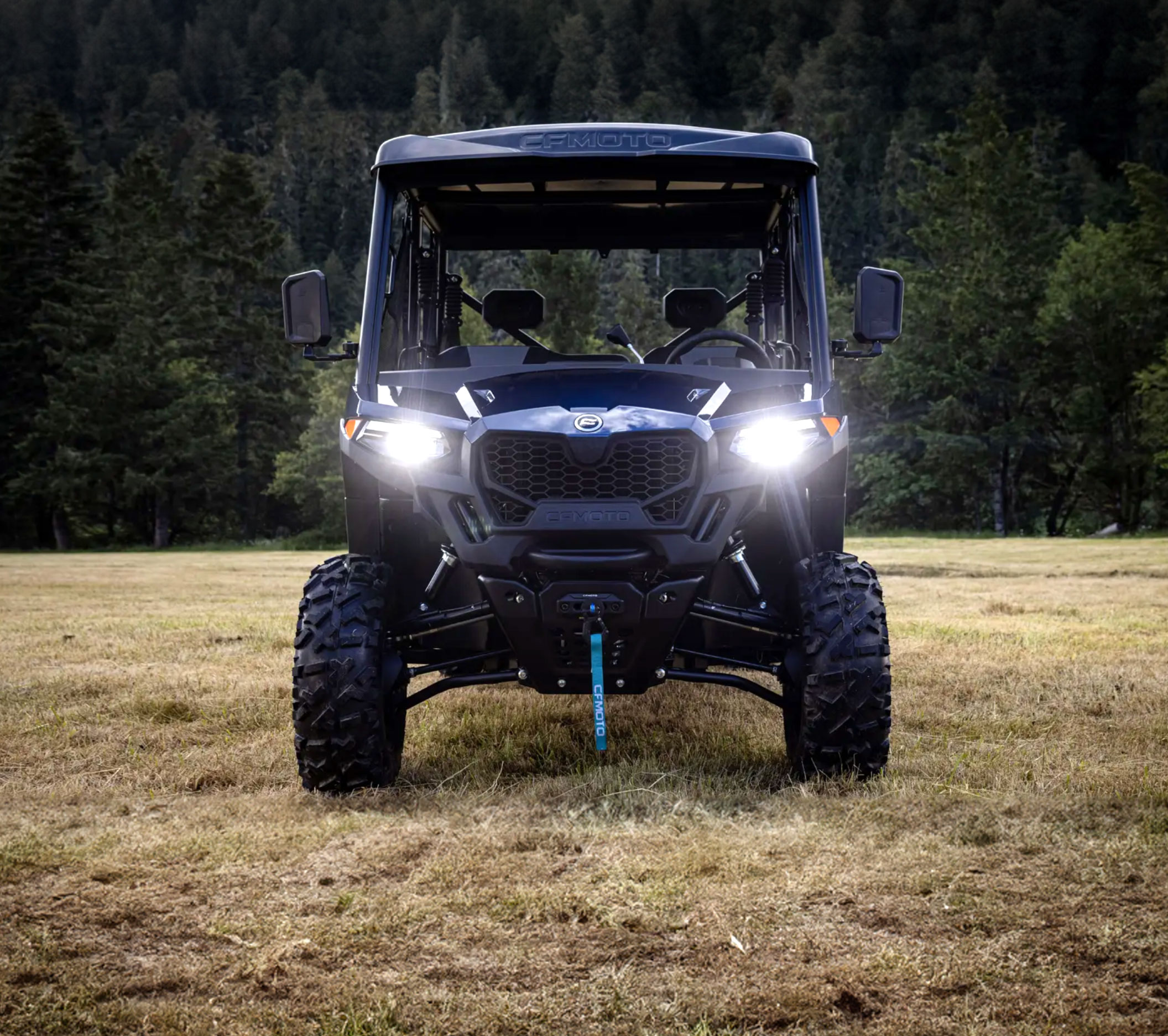

- LED headlights with integrated turn signals
- EASY protection plan available

- Rims: $1,200
- 4,500lb winch: $1000
- Safety and convenience package: $1,000
- Roof: $500
- Trailer hitch: $100

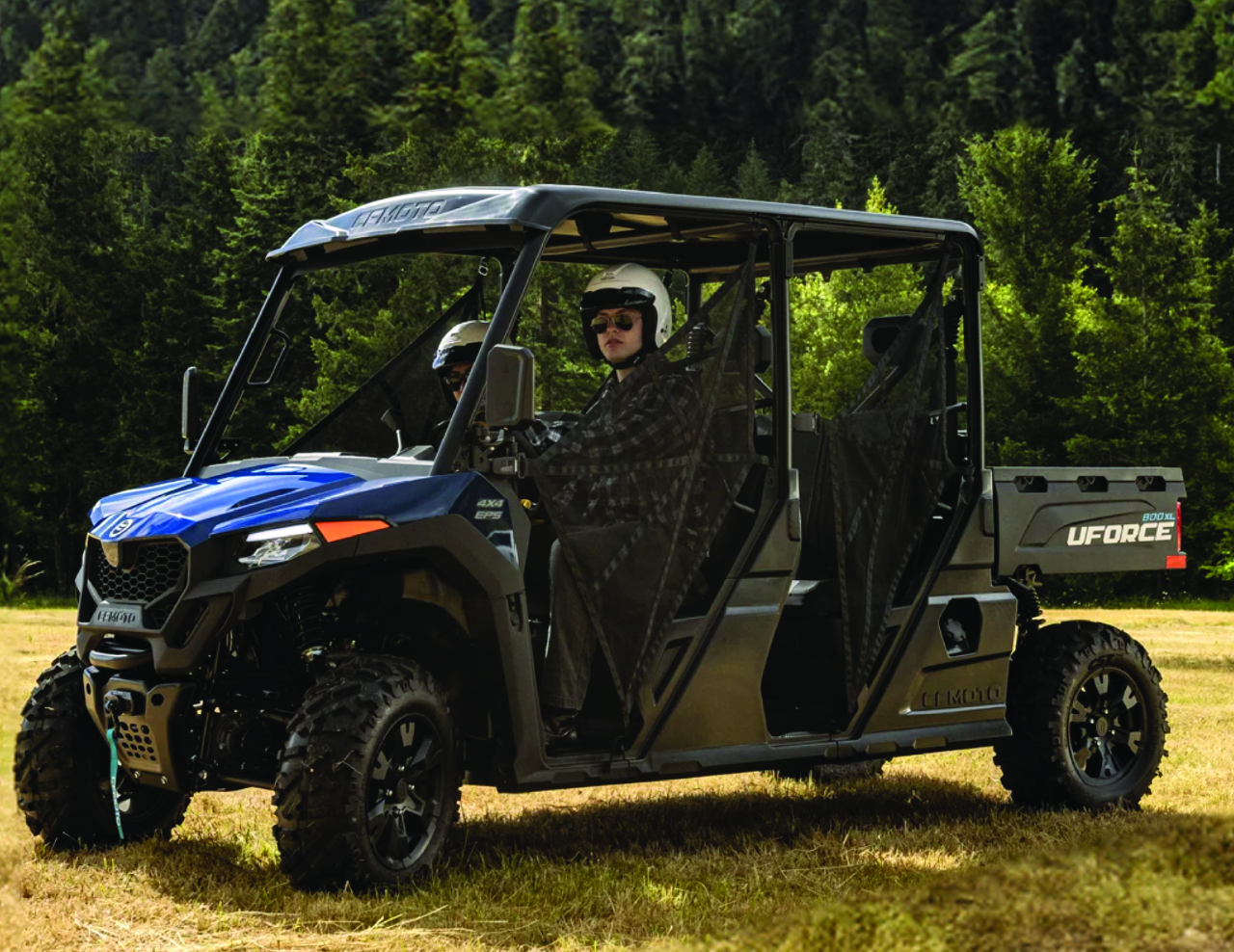

Why the new UFORCE 800 XL 2025
Powered by an 800cc, 8-valve, EFI, liquid-cooled V-twin, it is built on more than 2 decades of continuous innovation of liquid-cooled technology from CFMOTO. Put to work, the UFORCE 800 XL, its powerful torque of 63 hp output and incredible hauling and towing capacity will allow you to achieve everything you need.
Personalize your ride
Create the vehicle that perfectly suits your needs and lifestyle. Whether it is an extra layer of protection, winter equipment or storage, you will find everything you need through our wide selection of accessories.

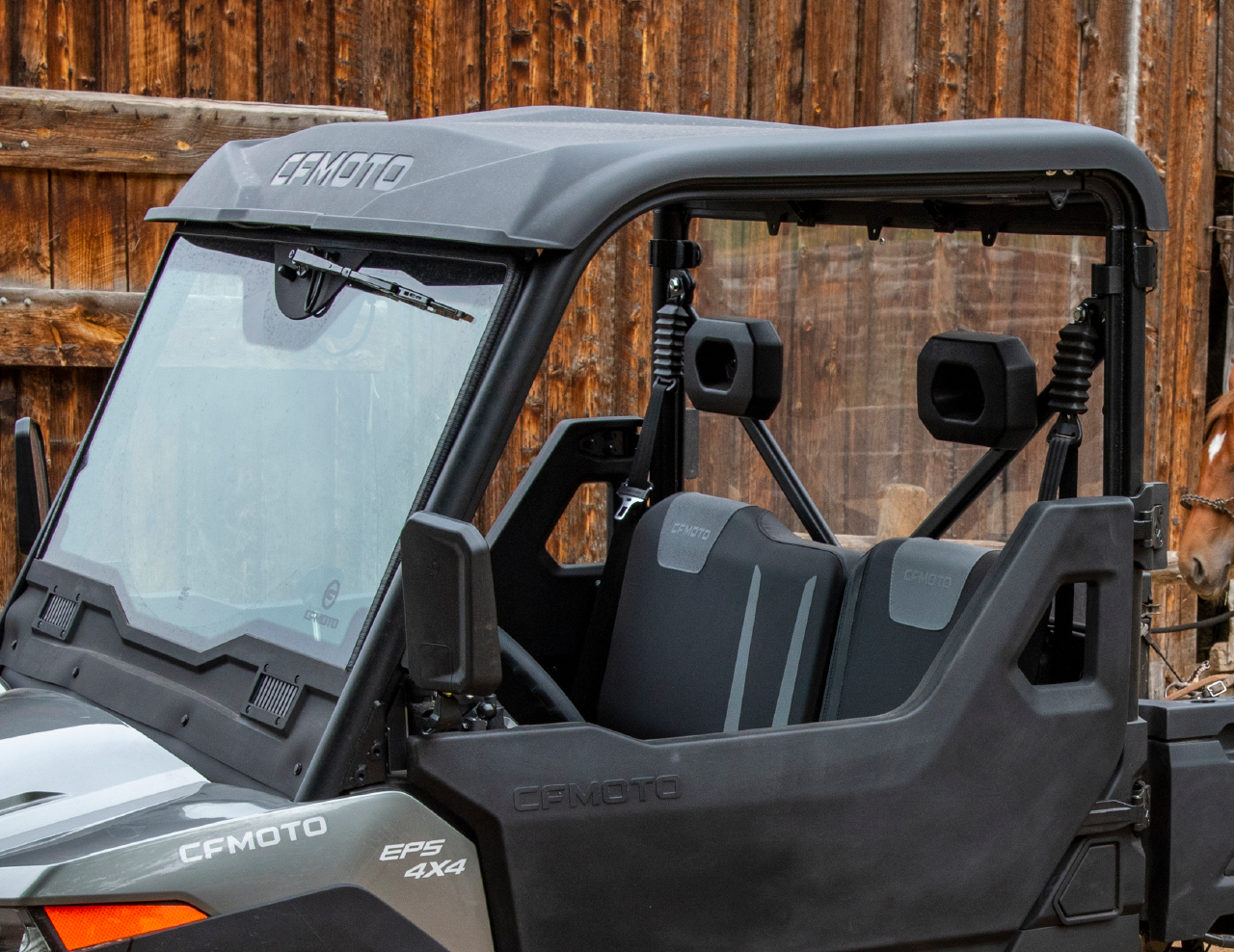

FRONT AND REAR WINDSHIELD

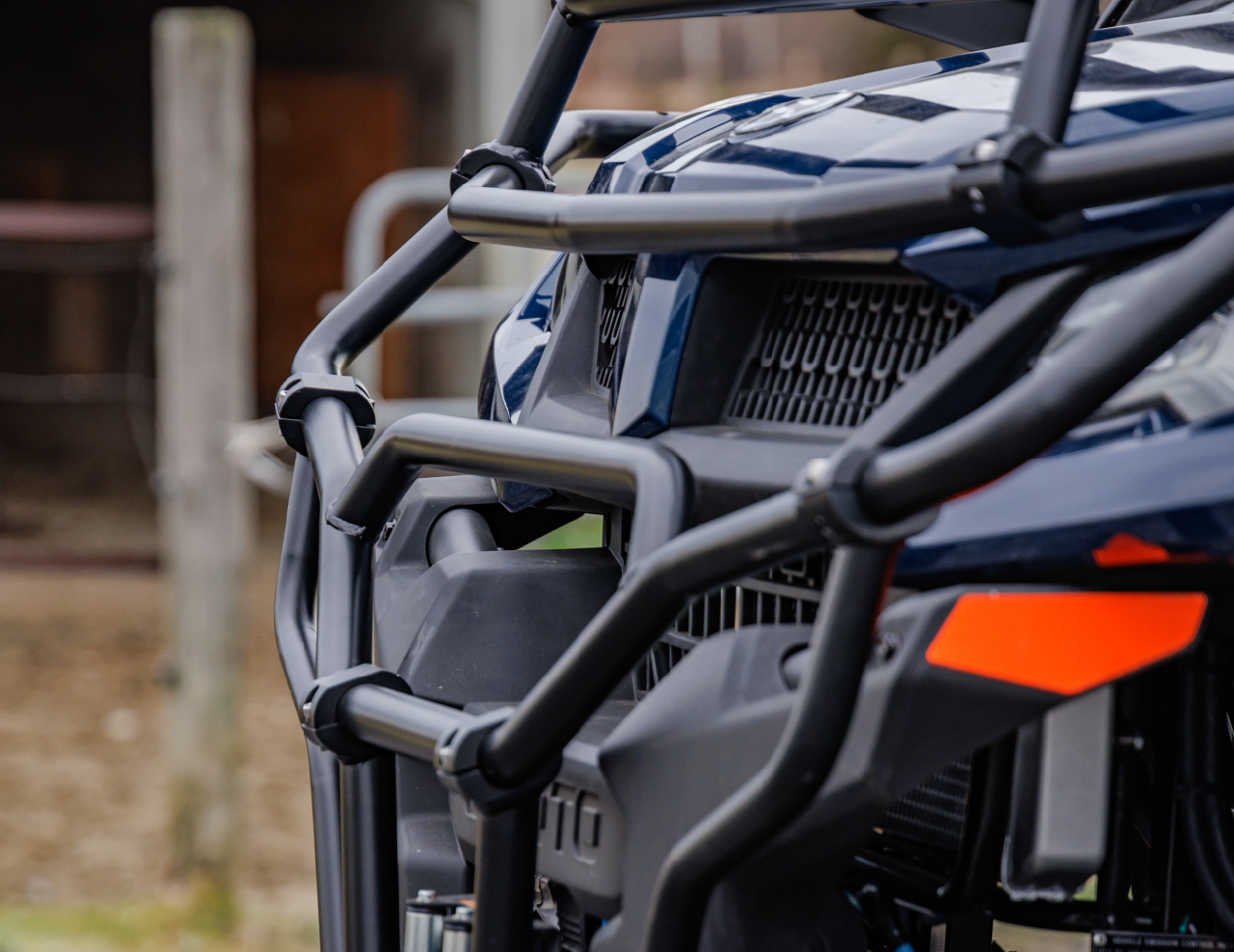

BUMPER

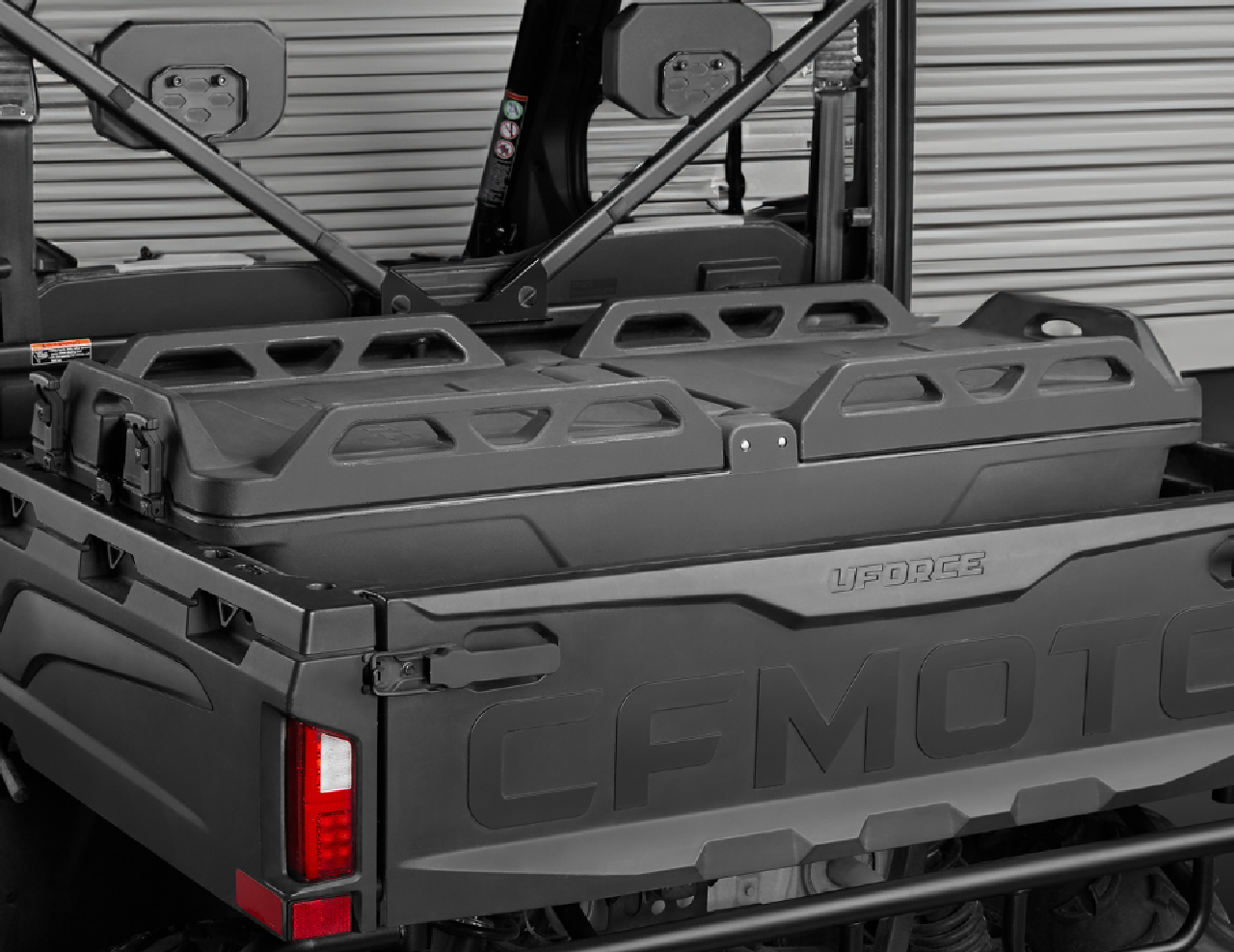

REAR CARGO

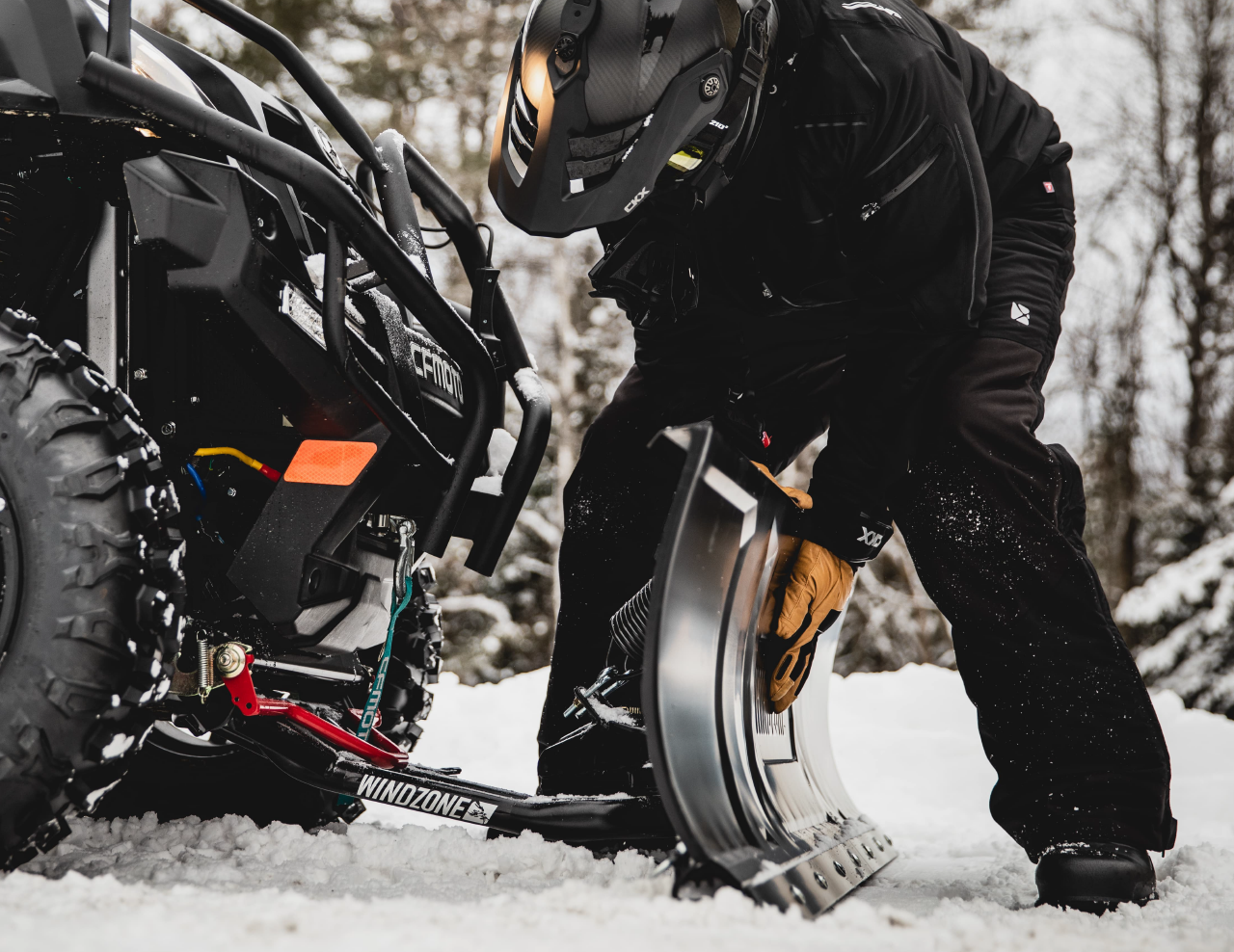

SNOW PLOW KIT

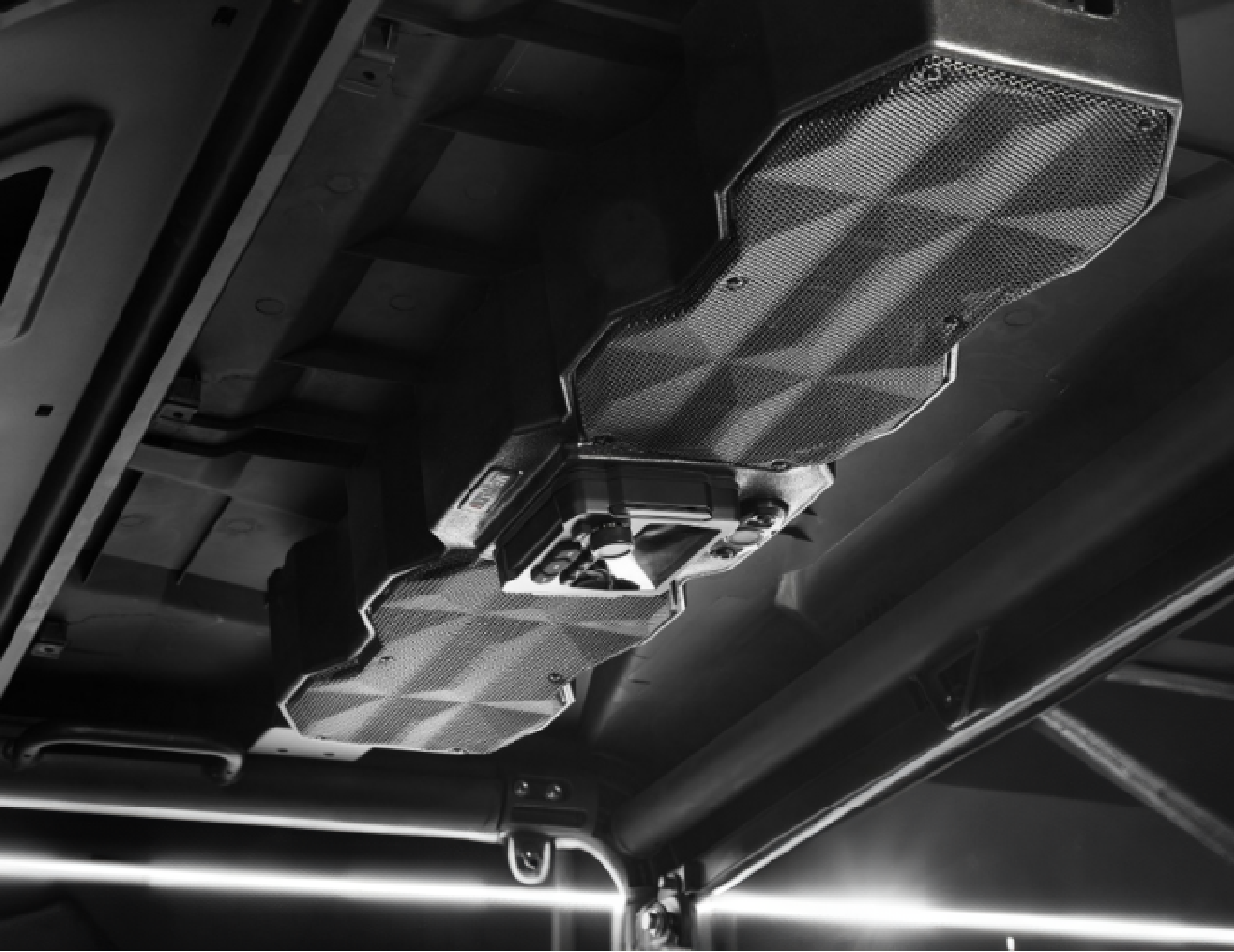

AUDIO SYSTEM


The best warranty in the industry, the standard CFMOTO Canada 5-year warranty includes 12 months of limited manufacturer’s warranty and 48 months of limited powertrain warranty.
For complete protection without deductible and unlimited mileage, choose the EASY protection plan and explore all the benefits that await you.
