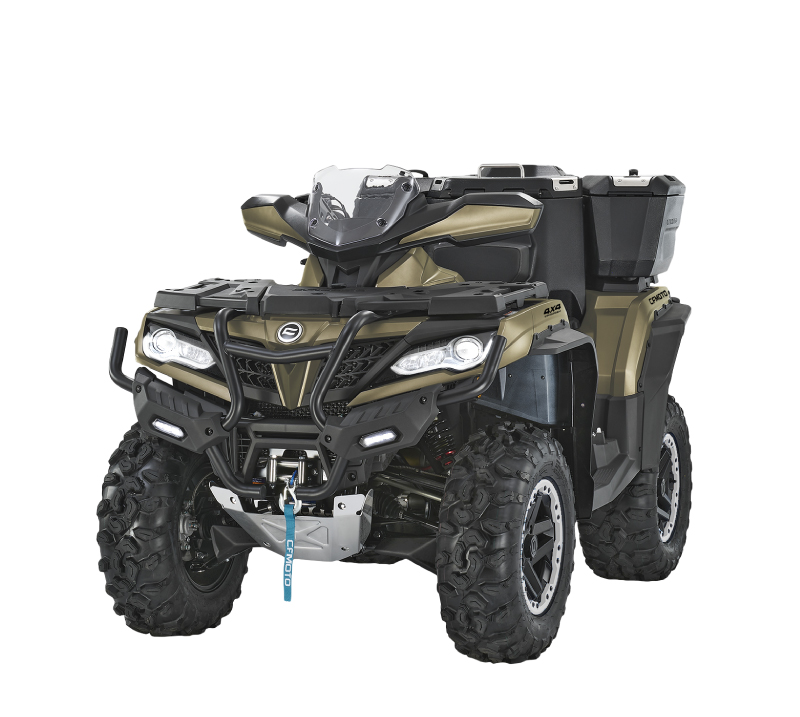

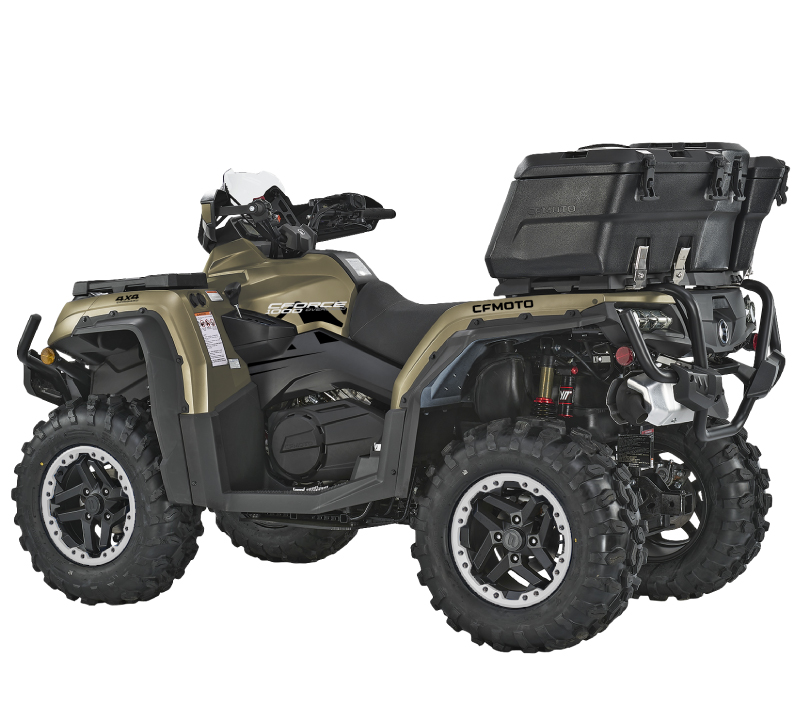

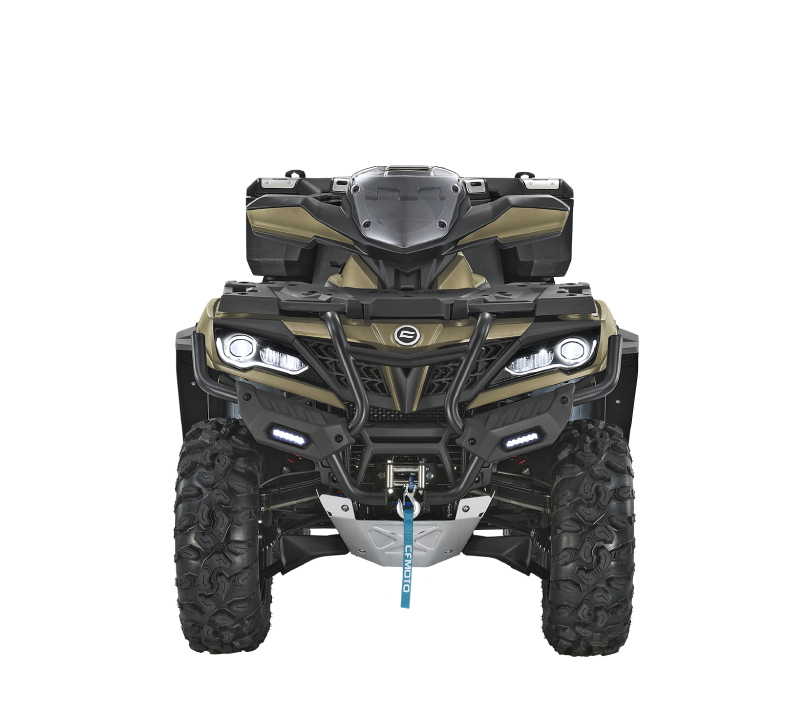

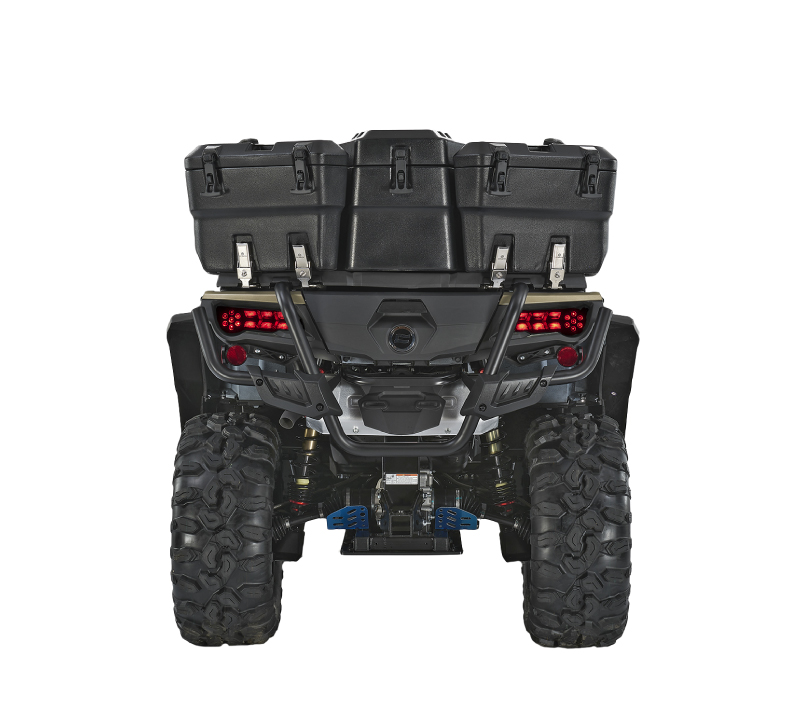

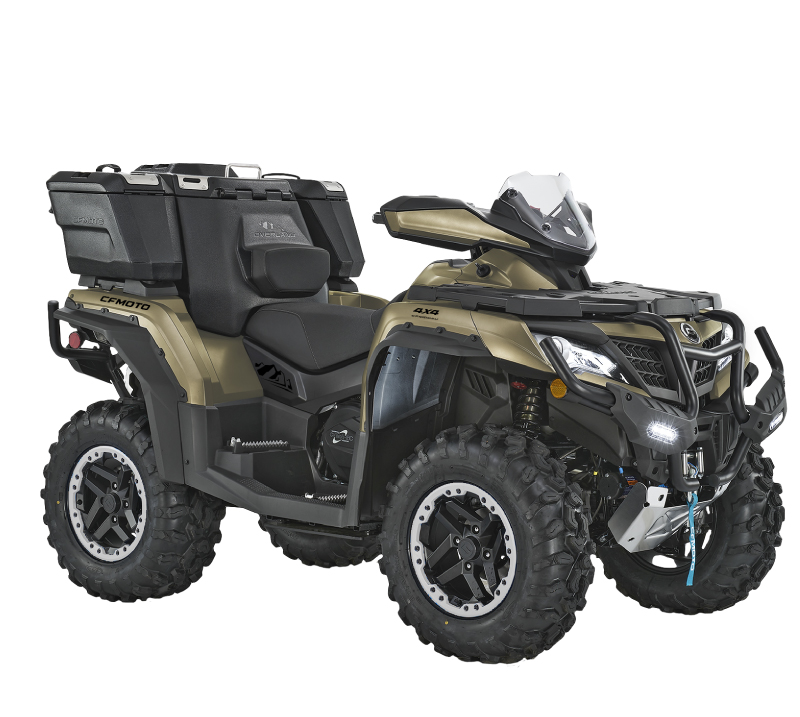

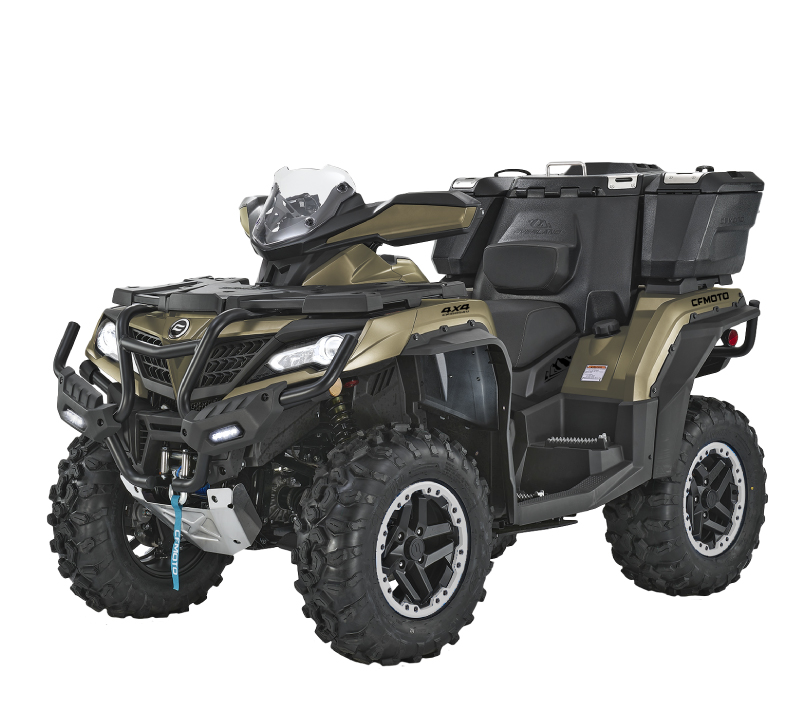

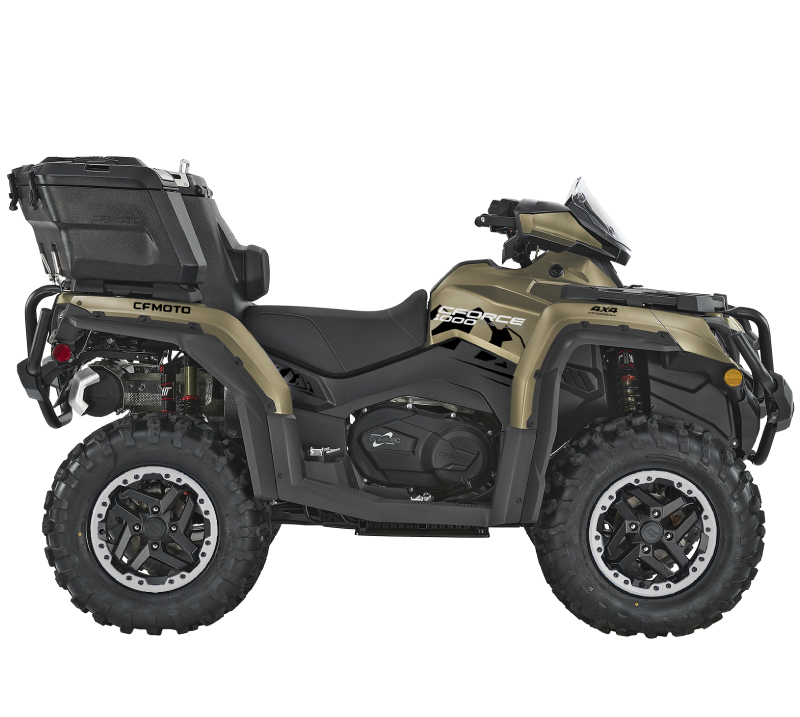

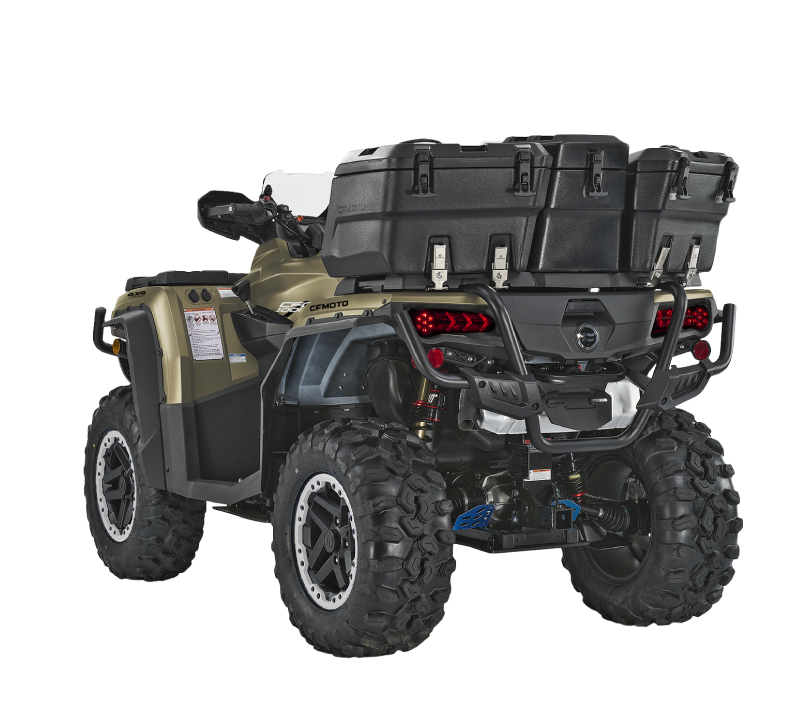

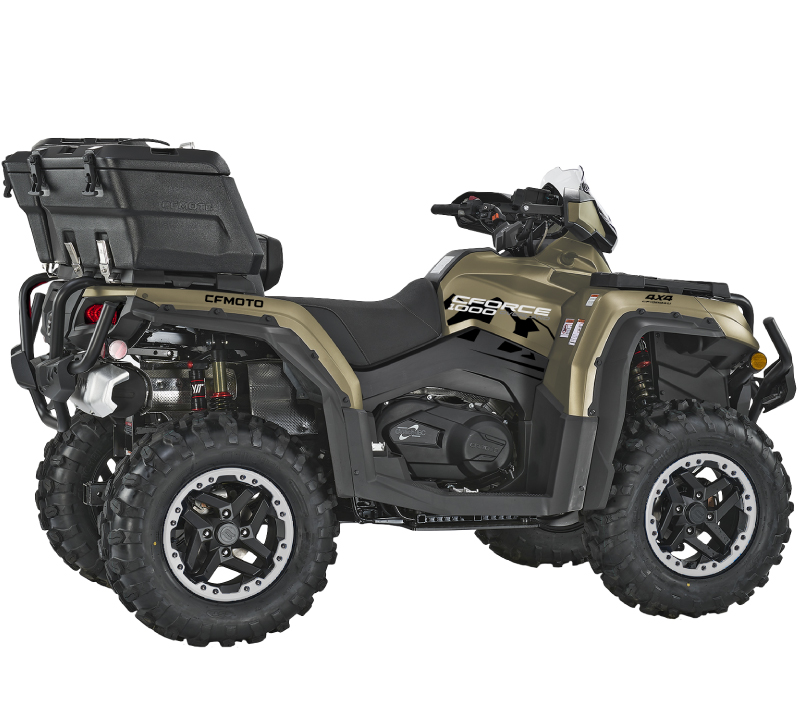

CFORCE 1000 OVERLAND 2024

Photos are for illustrative purposes only.
CFORCE 1000 OVERLAND 2024
5-year limited warranty
This machine embodies power and performance and is designed for those who demand the best of their off-road adventures. Fully equipped with a rear cargo box, skid plates and high-strength aluminum winch armour, it has everything you want and more than you need.

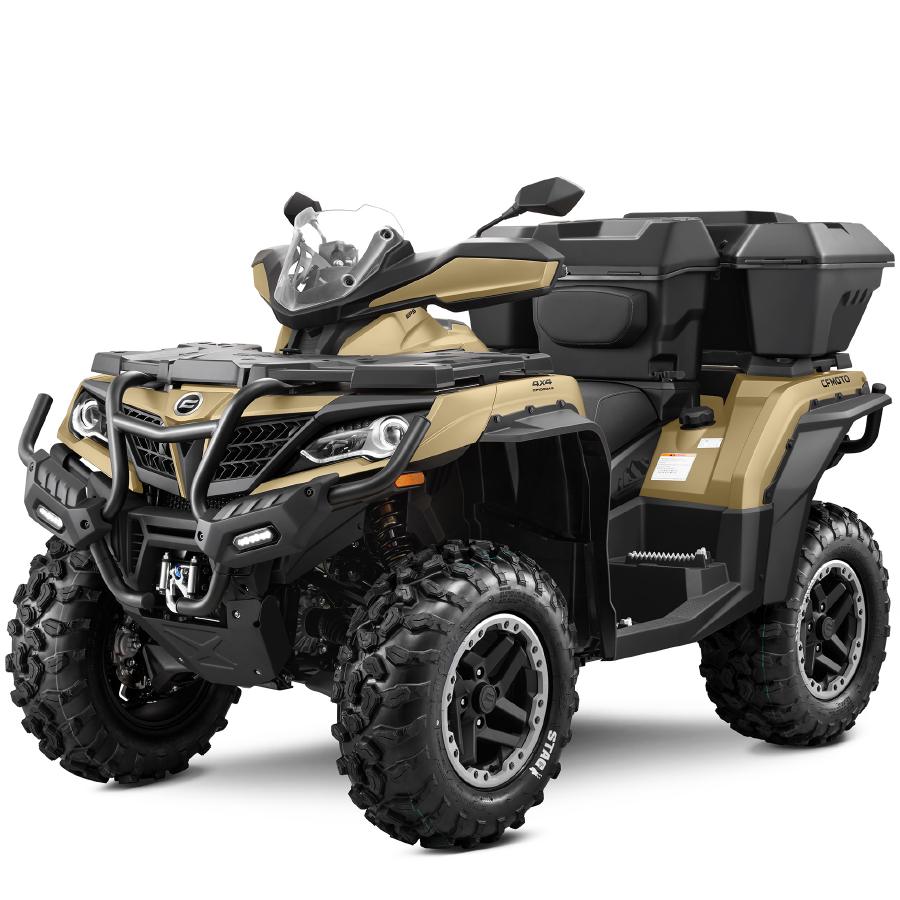

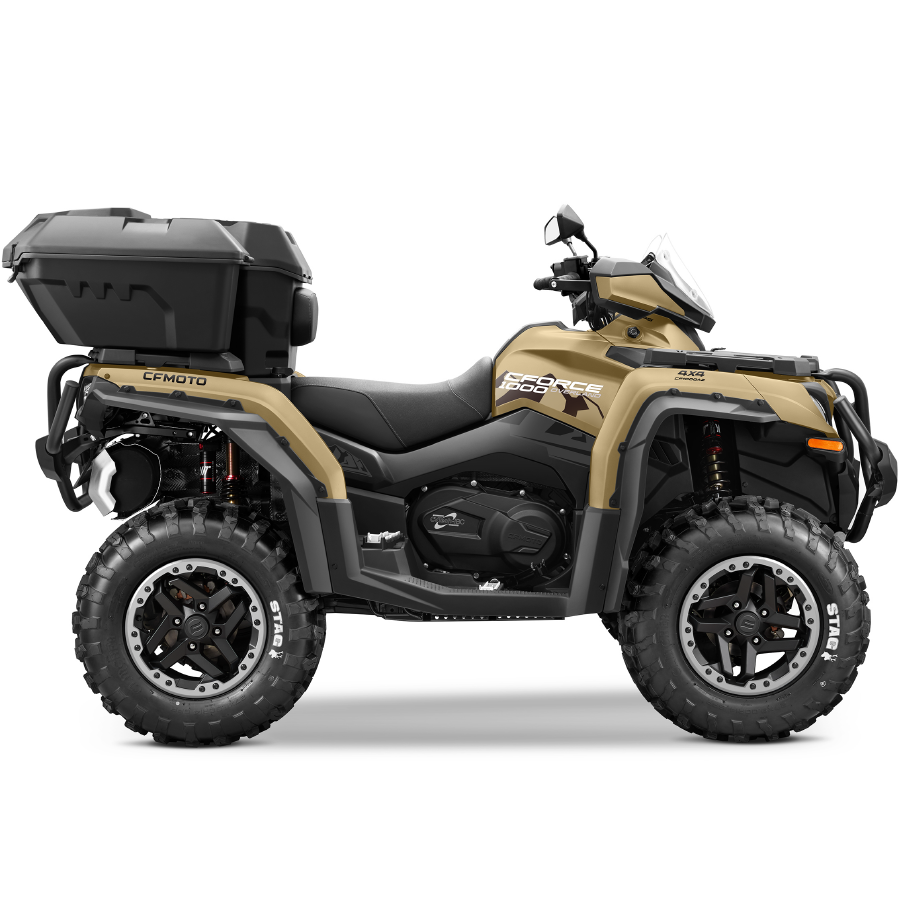

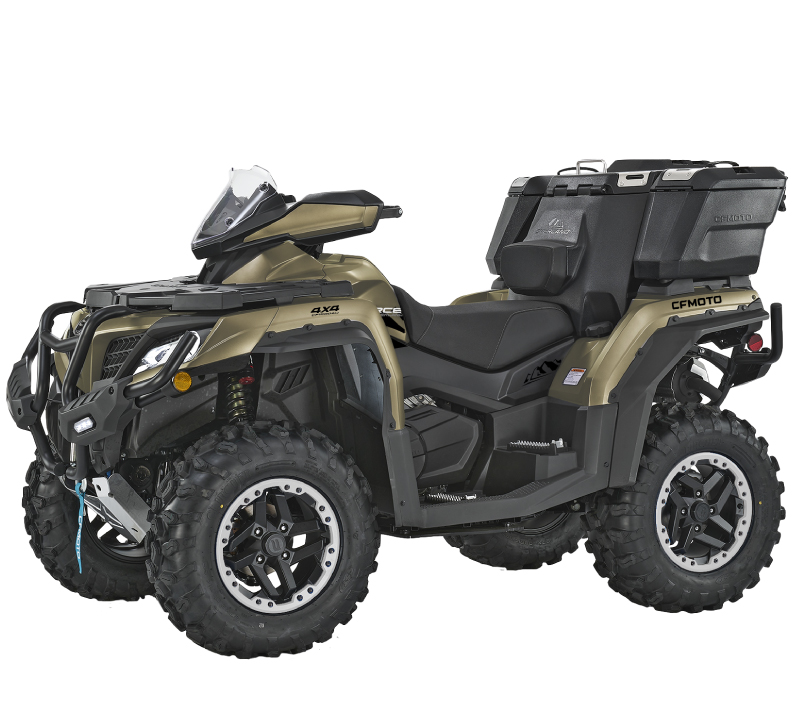

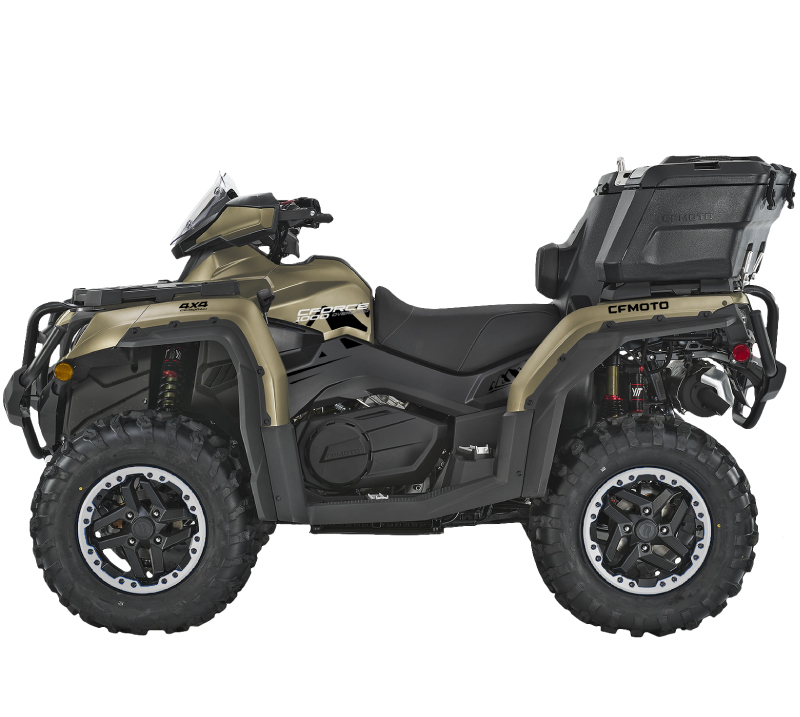

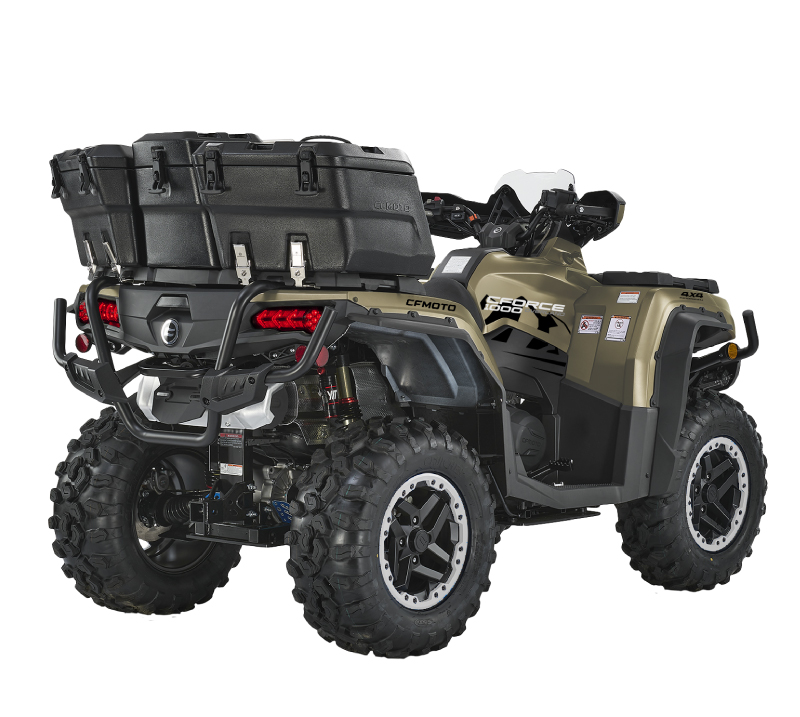

Desert Tan

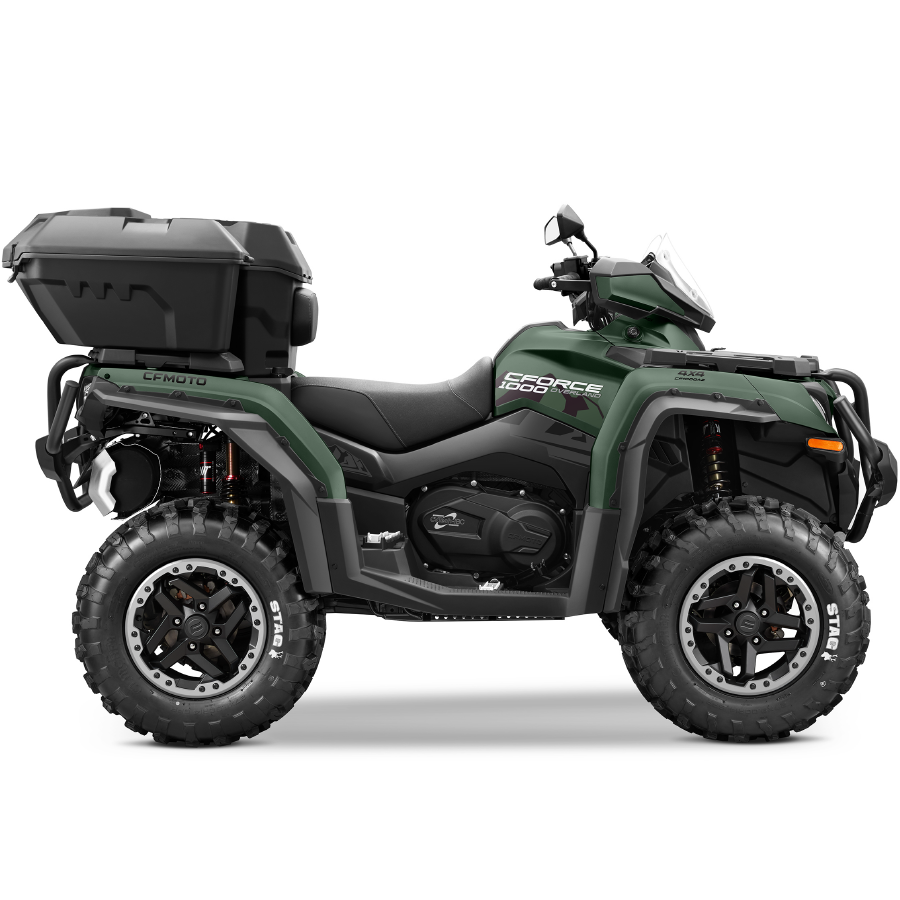

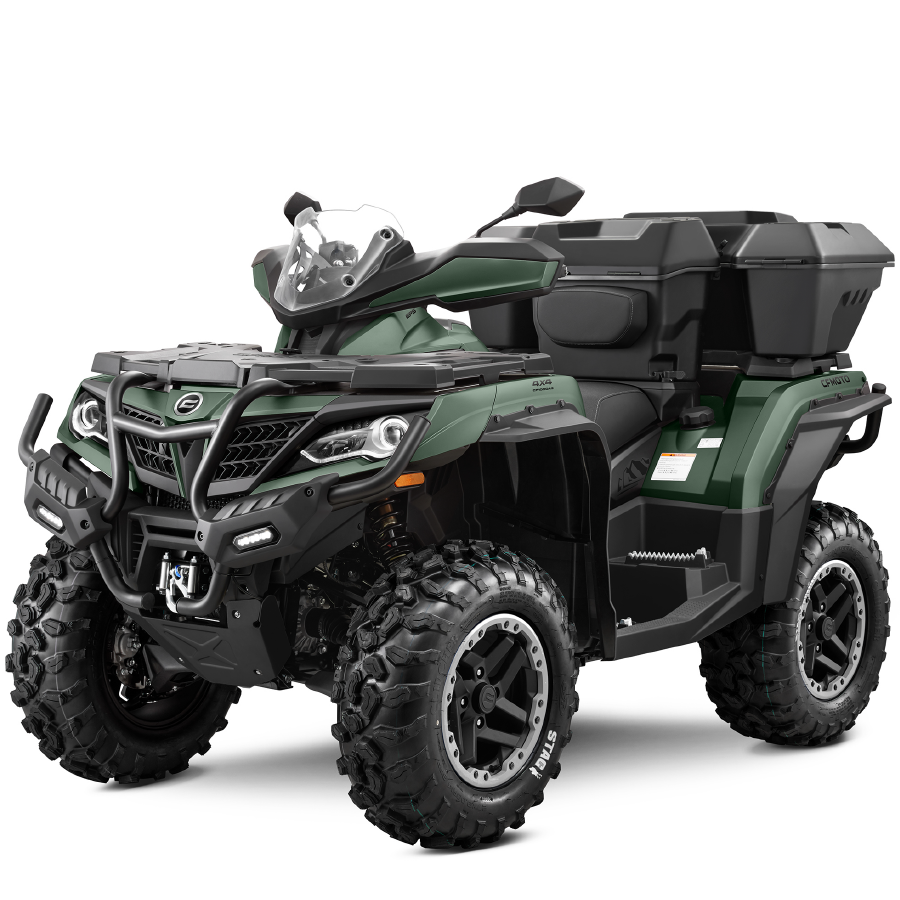

Tactical green
Starting at $19,249*
The price includes $17,999 MSRP and a $250 commodity surcharge, $500 freight, and a $500 preparation fee.
*The price indicated does not include registration fees, taxes and the cost of the installation of the accessories. Preparation fee may vary per dealer. Photos for illustrative purposes only. Specifications can change.

TOP FEATURES

suspension_gaz
Hydraulic Shock Absorber With 5 Spring Preload Adjustment
direction_assistee_electrique
Electric Power Steering
miroirs_leteraux
Lateral Mirrors
prise_12V
12V Plug
ambrayage_cvtech
CVTech Clutch System
5 years warranty
5-year warranty

  • Fuel injected 963cc engine
  • Adjustable gas shock absorber in compression, spring rebound and preload
  • Continuously Variable Transmission of CVTech- IBC
  • Electric Power Steering (EPS)
  • Removable rear cargo box, storage capacity of 105L
  • HDPE skid plate assembly

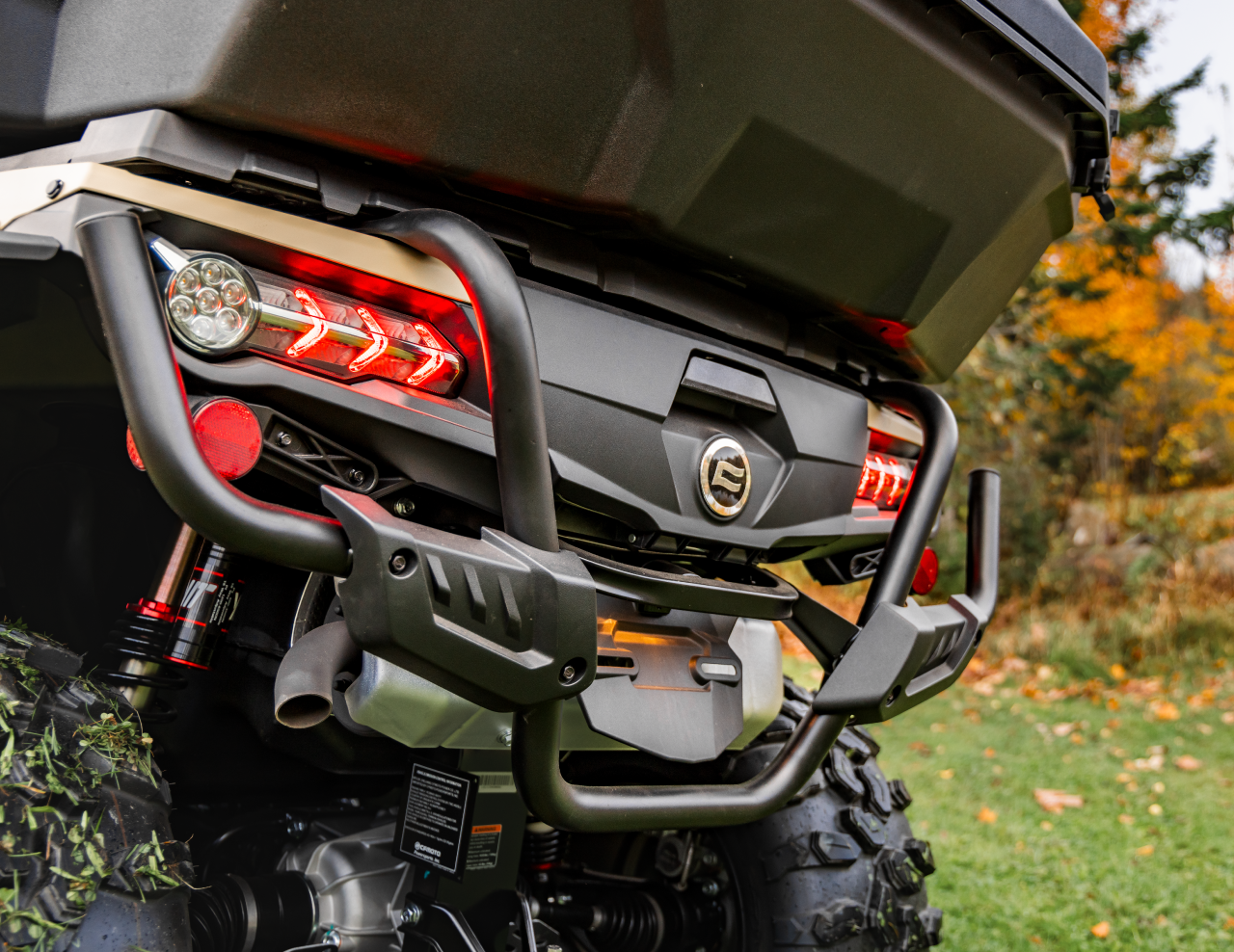

  • Front and rear bumpers
  • 2,500 lb winch
  • High strength aluminum winch armor
  • Hand guard assembly with windshield
  • 14″ beadlock aluminum wheels
  • LED lights
  • Hitch receiver
  • EASY protection plan available

DOWNLOAD THE SPECSHEET

DOWNLOAD THE OWNER MANUAL (BILINGUAL)

Specifications
  1. Engine
    • Type: V-Twin cylinder, 4 strokes, 8 valves
    • Displacement: 963 cc
    • Bore & Stroke: 91 x 74 mm (3.6 x 2.9 in)
    • Compression: 10.6: 1
    • Engine management: Fuel injected engine
    • Cooling system: Liquid
    • Starting: Electric
    • Battery: 30 Amp
  2. Size / Weight
    • Length x width x height: 2310 x 1264 x 1420 mm (94.3 x 49.7 x 56 in)
    • Wheelbase: 1 480 mm (58.2 in)
    • Minimum ground clearance: 285 mm (11 in)
    • Minimum turning radius: 3800 mm (149.6 in)
    • Fuel tank capacity: 28 L (7,3 gal)
    • Net weight: 490 kg (1080 lbs)
    • Rack capacity: Front 20 kg (44 lbs) / Rear 40 kg (88 lbs)
  3. Transmission
    • CV-Tech IBC clutch system: CV-Tech IBC clutch system variable transmission. Gear box: L / H / N / R / P (parking lock shift system)
    • Power train: 2WD / 4WD, electric locking differential
  4. Wheels
    • Front wheels: Aluminum alloy (14 in)
    • Rear wheels: Aluminum alloy (14 in)
    • Front tires: AT 27 x 9-14
    • Rear tires: AT 27 x 11-14
  5. Suspension and steering
    • Front suspension: Double A-arm, independent suspension, gas shock absorber with adjustable rebound/compression
    • Front travel: 180 mm (7 in)
    • Rear suspension: Independent trailing arm rear, fully adjustable gas shocks
    • Rear travel: 190 mm (7.5 in)
    • Steering: Electric Power Steering (EPS)
  6. Brakes
    • Brakes: Four wheel hydraulic disc + rear wheel parking

CFMOTO Warranty

CFMOTO Canada’s standard 5-year warranty includes a 12-month manufacturer limited warranty and a 48-month powertrain limited warranty.

Learn more

CFMOTO Accessories

Let the CFMOTO range of accessories surprise you. Shop online!

Find your parts.

Get the parts you need for your CFMOTO vehicle and buy it online or at your dealer!

You may also like
Series

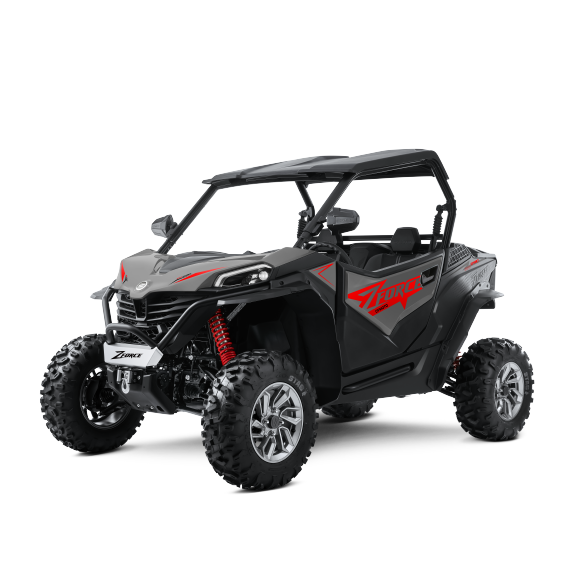

ZFORCE 2023
