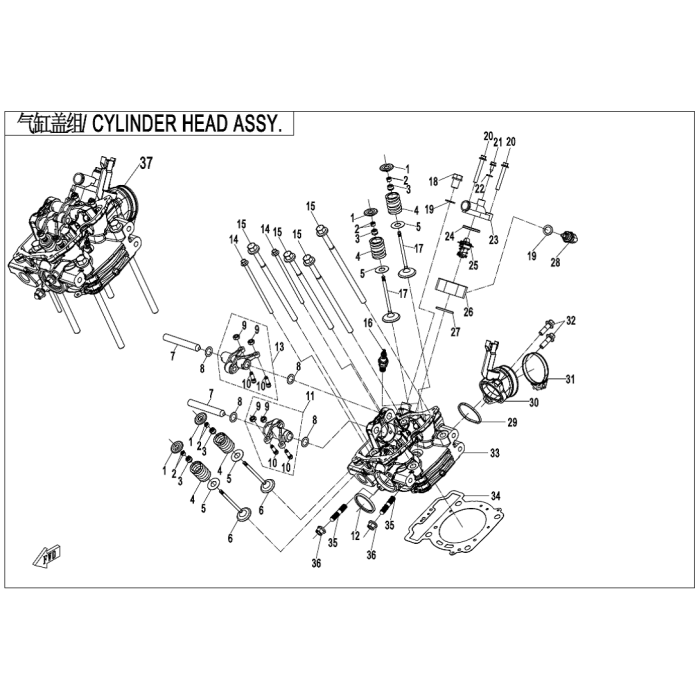

CYLINDER HEAD ASSY.

Be the first to review this product

Grouped product items
Product Name	Qty
1 UPPER SEAT, VALVE 0800-022007 $14.68	– +
2 LOCK CLIP, VALVE 0800-022016 $14.68	– +
3 SEAL RING, VALVE STEM 0010-022500-10000 Sold in quantities of 2 $4.52	– +
5 LOWER SEAT, VALVE 0800-022008 $3.67	– +
6 VALVE, EXHAUST 0800-022005 $35.57	– +
7 SHAFT, ROCKER ARM 0800-022001 $23.12	– +
8 WASHER 12.3X18.5X0.5 0800-022002 $1.54	– +
9 ADJUST NUT 0800-022506 $1.54	– +
10 ADJUST SCREW 0800-022510 $9.05	– +
11 ROCKER ARM ASSY, EXHAUST 0800-022600-20000 $77.08	– +
12 BUSHING, EXHAUST PIPE 0800-022300 $13.57	– +
13 ROCKER ARM ASSY, INTAKE 0800-022500-20000 $52.41	– +
14 BOLT, M6X1.0X132 0GR0-022002-00001 $4.52	– +
15 BOLT, CYLINDER 0GR0-022001-10000 Sold in quantities of 6 $12.13	– +
16 SPARK PLUG (DCPR8E) 0800-022800 $17.98	– +
17 VALVE, INTAKE 0800-022004 $30.83	– +
18 SCREW PLUG M12×1.5 0800-022015 Sold in quantities of 6 $2.99	– +
19 WASHER 12.2×18×1.5 0800-022014 $2.99	– +
20 BOLT, M6X1.0X45 0180-013208-0010 Sold in quantities of 6 $1.54	– +
21 SELF-TAPPING SCREW ST4.8×13 30132-480130030 Sold in quantities of 6 $1.54	– +
22 WASHER 5.3X11X15 0800-022011 $1.54	– +
23 HOUSING, THERMOSTAT 0800-022013-10000 $15.42	– +
24 SEAL RING 0010-022802 Sold in quantities of 2 $2.99	– +
25 THERMOSTAT 0800-022700 $47.43	– +
26 SEAT,THERMOSTAT 0GR0-022003 $28.26	– +
27 O-RING, 28X2.65 30502-028000N Sold in quantities of 2 $2.99	– +
28 WATER TEMPERATURE SENSOR 018B-022810 $31.86	– +
29 SEAL RING, MANIFOLD 0800-025002 $1.54	– +
30 INJECTOR SEAT 0GR0-022900 $83.24	– +
31 CLAMP 57 01A0-110005 $4.52	– +
35 STUD M8X1.25X42 0180-022003-00001 $2.99	– +
