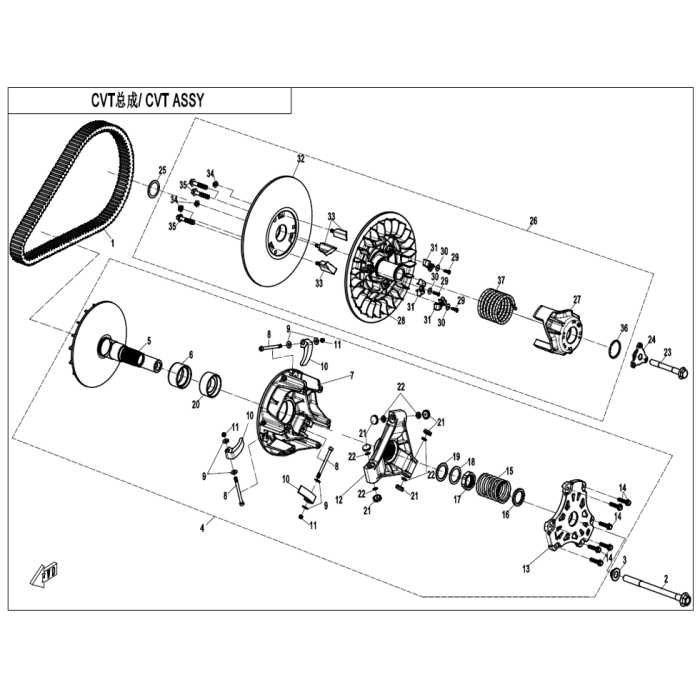

CVT ASSY

Be the first to review this product

Grouped product items
Product Name	Qty
1 CVT BELT 0NYV-054000-3000 $310.94	– +
2 CVT BOLT 0NYV-040020-1000 $19.64	– +
3 CVT BOLT GASKET 0NYV-052101-2000 $6.06	– +
4 CVT DRIVE PULLEY ASSY 0NYV-052100-3000 $680.58	– +
5 DRIVE FIXED PULLEY ASSY 0NYV-052110-3000 $212.88	– +
6 DRIVE BEARING SEAT ASSY 0NYV-052120-3000 $194.53	– +
7 DRIVE MOVING SHEAVE ASSY 0NYV-052131-3000 $198.46	– +
8 BOLT 0NYV-052135-3000 $12.13	– +
9 WASHER 0NYV-052136-3000 $6.06	– +
10 RAMP BLOCK 0NYV-052137-3000 $31.40	– +
11 NUT M5x0.8 0NYV-052141-3000 $10.59	– +
12 DRIVE THRUST DISC ASSY 0NYV-052150-3000 $190.77	– +
13 DRIVE GUIDE DISC ASSY 0NYV-052160-3000 $103.70	– +
14 BOLT M6x35 0NYV-052101-3000 $12.13	– +
15 DRIVE PULLEY SPRING 0NYV-052102-3000 $32.36	– +
16 LIMIT CIRCLIP 0NYV-052103-3000 $19.64	– +
17 NUT M32x1.5 0NYV-052104-3000 $27.24	– +
18 SPRING WASHER 0NYV-052105-3000 $6.06	– +
19 WASHER 0NYV-052106-3000 $4.52	– +
20 CENTERING SLEEVE 0NYV-052107-3000 $34.94	– +
21 SLIDER COVER 0NYV-052108-5000 $35.57	– +
22 DAMPER 0NYV-052109-5000 $17.98	– +
23 CVT DRIVEN PULLEY BOLT 0NYV-052201-3000 $10.59	– +
24 CVT DRIVEN PULLEY PAD 0NYV-052202-3000 $43.48	– +
25 CVT DRIVEN PULLEY ADJUSTING GASKET 0NYV-052203-2000 $1.54	– +
26 CVT DRIVEN PULLEY ASSY 0NYV-052200-3000 $518.98	– +
27 DRIVEN CAM ASSY 0NYV-052230-3000 $129.49	– +
28 DRIVEN FIXED SHEAVE ASSY 0NYV-052211-3000 $244.73	– +
29 SCREW 0GSV-052202-1100 $2.99	– +
30 WASHER 0GSV-052201-1100 $2.99	– +
31 GUIDE BLOCK ASSY 0GSV-052220-1100 $31.76	– +
32 DRIVEN MOVING SHEAVE ASSY 0NYV-052220-3000 $188.39	– +
33 BLOCK ASSY 0NYV-052240-3000 $10.59	– +
34 NUT M6 0NYV-052203-3000 $4.52	– +
35 BOLT M8x50 0NYV-052204-3000 $6.06	– +
36 CIRCLIP FOR SHAFT 38 0NYV-052206-3000 $6.06	– +
37 DRIVEN PULLEY SPRING 0NYV-052205-3000 $37.09	– +
