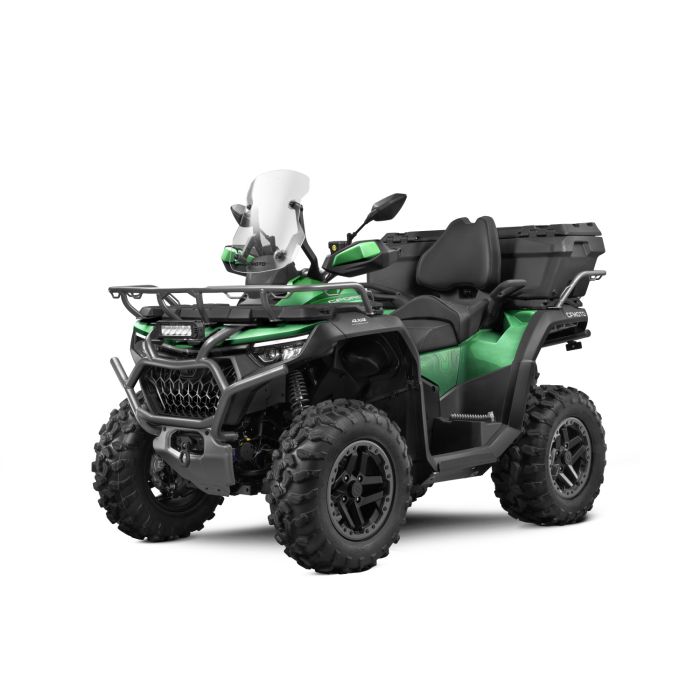

CFORCE 1000 OVERLAND
*The price indicated does not include registration fees, taxes, the cost of accessories and their installation. Preparation fee may vary per dealer. Photos for illustrative purposes only, accessories not included. Specifications can change.







Specifications
Engine
- Type: 4-strokes, 8-valves, liquid-cooled, SOHC, V-Twin cylinder
- Displacement: 963cc
- Max power: 84 hp / 7500 rpm
- Max torque: 62 lb-ft / 5500 rpm
- Bore & Stroke: 91 x 74 mm (3.58 x 2.9 in)
- Compression: 10.8:1
- Engine management: Fuel injected engine
- Cooling system: Liquid
- Starting: Electric
- Battery: 30 Ah
Size / weight
- Length x Width x Height: 2435 x 1264 x 1605 mm (95.8 x 49.7 x 63.1 in)
- Wheelbase: 1480 mm (58.3 in)
- Ground clearance: 300 mm (11.8 in)
- Minimum turning radius: 3500 mm (137.7 in)
- Fuel tank capacity : 26 L (6.8 gal)
- Curb weight : 500 kg (1102 lbs)
- Towing capacity: 800 kg (1764 lbs)
- Rack capacity: Front 45 kg (99 lbs), Rear 90 kg (198 lbs)
Transmission
- Clutch: OmniDrive™ CVT
- Gear box: P / R / N / H / L (parking lock shift system)
- Power train: 2WD / 4WD, electric locking differential
Wheels
- Front wheels: Aluminum alloy (14 in)
- Rear wheels: Aluminum alloy (14 in)
- Front tires: 27 x 9-14
- Rear tires: 27 x 11-14
Suspension and steering
- Front Suspension: Double A-arm independent, gas shock absorber with adjustable rebound/compression
- Front travel: 225 mm (8.8 in)
- Rear suspension: Independent trailing arm, fully adjustable, gas shocks
- Rear travel: 225 mm (8.8 in)
- Dynamic Downhill Assist: Yes
- Steering: Triple-mode Electric Power Steering (EPS)
Brakes
- Brakes: Four wheel brake disc
Electronics
- Dashboard: 7" TFT Display
- Seat: Heated driver seat
- Lights: LED headlights and taillights with integrated turn signals, LED lightbar
Protection plan
- Protection Plan: EASY protection plan available

- 963cc fuel-injected engine
- Hydraulic Shock Absorber with adjustable rebound/compression and spring preload
- CFMOTO Clutch System
- Triple-mode Electronic Power Steering (EPS)
- Dynamic Downhill Assist
- 7" TFT Screen
- Removable rear cargo box, storage capacity 110L
- HDPE skid plate assembly for the underside of the vehicle
- Front and rear bumpers
- 3,500lb. winch
- Hitch specification: 500kg
- Aluminum winch armor
- Windshield with integrated handguards
- 14-inch Beadlock aluminum wheels
- LED headlights with integrated turn signals
- Trailer hitch
- Easy protection plan available

- 14-inch rims: $1,800
- Skid Plate for the underside of vehicle: $1,050
- 3,500lb winch: $1,000
- Safety and convenience package: $750
- Removable rear cargo box, storage capacity (110L): $600
- LED light bar: $500
- Windshield with integrated handguards: $300
- Aluminum winch armor: $100
Why the new CFORCE 1000 OVERLAND 2025
In off-road vehicles, the CFORCE 1000 stands out as the reigning champion, boasting unrivalled power within the CFORCE family. Its new design, suspension and performance make it a must-have.
Personalize your ride
Create the vehicle that perfectly suits your needs and lifestyle. Whether it is an extra layer of protection, winter equipment or storage, you will find everything you need through our wide selection of accessories.





The best warranty in the industry, the standard CFMOTO Canada 5-year warranty includes 12 months of limited manufacturer’s warranty and 48 months of limited powertrain warranty.
For complete protection without deductible and unlimited mileage, choose the EASY protection plan and explore all the benefits that await you.
